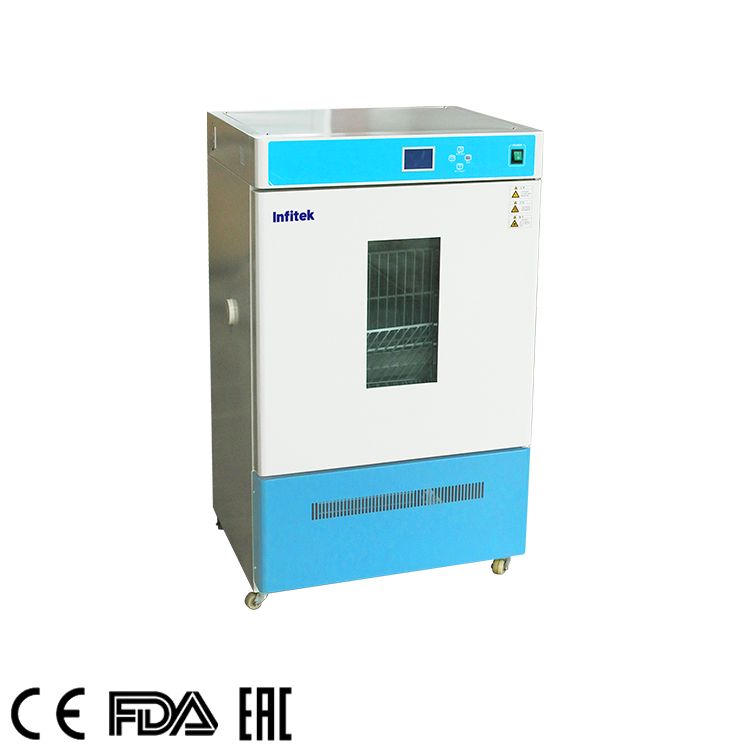

Cooling Biochemical Incubator, ICB-BB Series

  1. Temperature control range (℃): 5-60℃
  2. Temperature resolution (℃): 0.1℃
  3. Temperature fluctuation (℃): ±0.5℃

Share the product

Description

Auxiliary temp. control:

Dual temperature control system, which is more accurate and stable.
Ensure that the equipment can control the temperature and operate normally when the main temperature controller is out of control.

Leakage protection:

When the equipment has leakage, the equipment will cut off its own power supply, which will not affect the normal operation of other equipment in the laboratory, and protect the safety of personnel and the laboratory.


Standard product characteristics:

1.Mirror stainless steel working room. The four corners are in semi-circular arc transition, which is easy to clean; And the shelf spacing is adjustable.
2.Microcomputer control system, large-screen LCD display, with functions of time setting, parameter memory, and call recovery.
3.The brand compressor has fluorine-free refrigeration and breeze circulation.
4.There is a φ52mm test hole on the left side of the box, which is convenient for temperature measurement. The equipment in the working room is connected with the standard power socket outside the box.
5.Double-sealed door structure. The inner door is sealed with high-quality tempered glass and silicone strips. The outer door adopts magnetic rubber strips, which is easy to open and close and has good sealing performance. The working room is equipped with lighting for easy observation.

In addition to the function of standard biochemical incubator, the functional biochemical incubator also has the following characteristics:

1.Self-diagnosis function, with sensor failure alarm, upper and lower limit over-temperature alarm function.
2.Intelligent refrigeration and defrosting system to ensure frost-free operation of the working room.
3.It has functions such as automatic operation, automatic stop, timing operation, call recovery, parameter memory, temperature display correction and so on.

Specifications

Model ICB-B80B ICB-B150B ICB-B250B
Capacity(L) 80 150 250
Circulation Mode Forced convection
Dimension(W*D*H) Internal (cm) 50*35*50 50*40*73 50*50*95
External (cm) 64*60*106 64*65*130 64*75*152
Temperature Range (℃) 5-60℃
Fluctuation (℃) ±0.5
Resolution (℃) 0.1
Uniformity (℃) ±1
Sensor PT100
Controller Microcomputer control
Display High efinition LCD
Timer(min) 1~9999
Material Internal Mirror 201 stainless steel
External Galvanized sheet spraying
Shelves(Standard / Max )    2 /   5    2 /   8    2 /   11
Test Hole Φ30mm
Refrigerant R134a (CFC free)
Safety Device Over temperature alarm, sensor failure alarm
Electricity Voltage/Frequency AC 220/110V, 50/60Hz
Consumption (W) 300 500 800
N.W./G.W. (kg) 55/68 67/85 79/100
Shipping Dimension (W*D*H) (cm) 72*68*117 72*72*140 72*83*161
Optional Multi-segment programmable control, RS485 interface or printer and USB (choose one),spare shelf
