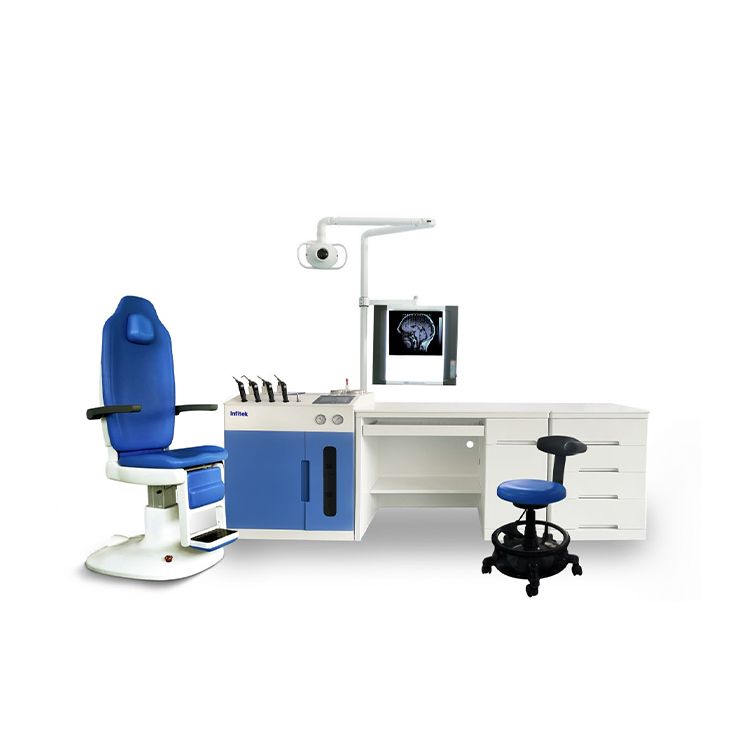

ENT comprehensive diagnosis and treatment table, ENT-1A

  • With silent compressor
  • Endoscope thermal insulation chamber
  • Pistol-style spray gun
  • Central control touch screen for easy operation and control

Share the product



The frame of this machine is stamped and formed with high-quality steel plate, and the surface is sprayed with plastic. It has the features of strong corrosion resistance, high strength and rigidity of the body, strong and durable. The countertop material is acrylic board, which is easy to clean and maintain, simple and beautiful.


  • Quiet compressors and noise reduction technology are used in spraying, flushing systems and suction systems. Reliable and safe performance.
  • Pistol-type spray gun, easy to operate, with a pressure regulating knob at the rear of the gun body, which can directly adjust the amount of spray, without having to adjust it on the body.
  • Advanced central control touch screen for easy operation control.
  • In the cold season, the endoscope thermal insulation chamber ensures the constant temperature of the endoscope and can be used at any time, bringing the examinee a welcome experience.
  • A constant temperature irrigation system, so as to the ear canal can give a good feel.



Main diagnosis table Model ENT-1A
Electricity AC220V 50Hz
Input power ≤1500VA
Positive pressure system maximum pressure ≤0.2MPa
Suction system maximum negative pressure ≥-0.085MPa
Positive pressure pump power AC220V,180W
Negative pressure pump power AC220V,360W
Defogging pre heated device power AC220V,450W
Thermal chamber power DC24V,32W
Flushing system power Water heating DC24V, 80W
Spray gun 3, 2 straight and 1 curved
Flush gun 1
Attract gun 1
Flashlight DC12V,50W
Instrument tray 2 pcs, stainless steel, with cover,≥305*205*50 mm
Round cup 4 pcs, stainless steel,≥φ90×90 mm
Medicine bottle 1 piece, medical glass vial,60ml
Dimensions of the main diagnosis table L*W*H:705*575*820mm
Diagnosis and treatment chair Lifting electric actuator DC24V,6000N
Backrest electric push rod DC24V,8000N
Maximum bearing capacity 300kg
Seat height 550-750mm
Seat rotation range ±90°
Backrest supine angle 90°-180°
Headrest movement range ≥350mm
Base dimensions L*W*H (minimum):630*740*1460mm
Computer station External dimensions 1110 *550 *750mm
Auxiliary cabinet External dimensions 580*550*750mm











Diagnosis and treatment table 1
Spray gun (2 straight and 1 curved) 3
Flush gun 1
Attract gun 1
Endoscopic pre-warmers 1
Endoscope insulation tank 1
Dropper bottle 1
Central control touch screen 1
Medical cotton jar 4
12 inch instrument tray 2
Instrument collection tank 2
Spotlight light 1
Computer workbench 1
Otoscope 1
LED viewing light 1
Electric diagnosis and treatment chair 1
Doctor chair 1





Single CCD/3CCD camera system 1
Cold light source (including light guide) 1
SONY HD Medical Monitor 1
Computer 1
LED headlights 1
Instrument cabinet 1
Printer 1
Workstation Graphic System 1
Water collector 1
Surgical microscope 1
Acrylic work surface, color optional 1
