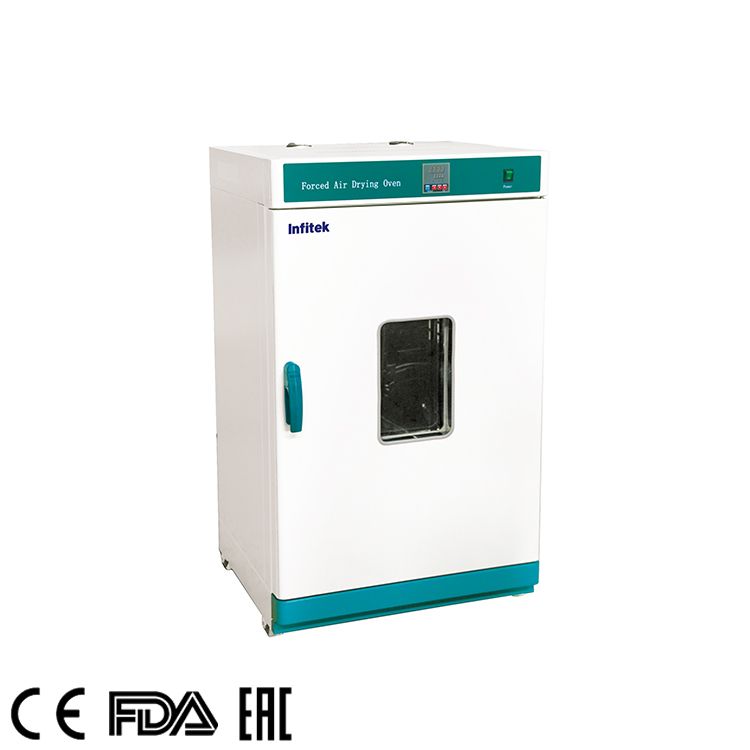

Forced Air Drying Oven, DOF-230E

  1. Volume: 230L
  2. Temperature control range(℃): RT+10-300℃
  3. Temperature fluctuation(℃): ±1.0℃
  4. Load per rack: 25/kg(2 for standard configuration)
  5. LED, Temperature limiter(Optional)

Share the product




DOF series blast drying oven has the characteristics of new model, advanced technology, accurate temperature control, stable performance, easy maintenance, convenient operation and so on. It is suitable for drying, baking, wax melting and heat treatment in laboratories of industrial and mining enterprises, scientific research institutes, medicine and health institutions, etc.

Product characteristics:

  1. Novel vertical design, the box shell is formed by high-quality cold-rolled steel plate, the surface is treated by electrostatic spraying process, the appearance is beautiful and generous, anti-corrosion and durable.
  2. The four corners are in semi-circular arc transition. The spacing of the partitions is adjustable. The air duct side plate and the bottom heating cover are quick detachable structure for easy cleaning.
  3. Turbine centrifugal fan blades, unique bottom blast and bottom heater are reasonably coordinated, with vertical double air ducts and vertical hot air circulation, so that the temperature distribution in the working room is more uniform.
  4. The speed-regulating fan can adjust the required air volume according to the different experimental requirements of users, which not only guarantees the temperature uniformity in the working room, but also does not blow powder-like objects.
  5. Model with E: LED ordinary instrument; Model without E: LCD instrument panel, optional 485 interface, can be connected to a computer
  6. It is equipped with an independent temperature limit alarm system. When the main controller fails, it will alarm and cut off the output in time. The double protection ensures the safe operation of the experiment without accidents.
  7. Optional 485 interface; it can be connected to a computer and can remotely monitor the change status of temperature parameters.
  8. The box door with a new structure has good heat insulation effect, and there is a double-layer toughened glass observation window with a large viewing angle in the middle. It also has a lock-type looseness adjustment door lock and a high-temperature resistant silicone sealing strip to ensure good sealing and prevent heat loss.



Model DOF-230E
Capacity 230L
Temp. Range RT+10~300℃
Temp. Fluctuation ±1℃
Temp. Resolution 0.1℃
Ambient Temp. +5~40℃
Timing range 1~9999min
Shelves 2pcs/adjustable max. load 25kg/shelf
Consumption 3000W
Power Supply AC220V, 50Hz
Internal Size(W*D*H) 600*500*750mm
External Size(W*D*H) 730*670*1220mm
Package Size(W*D*H) 900*800*1350mm
Net/Gross Weight 70*105kg
