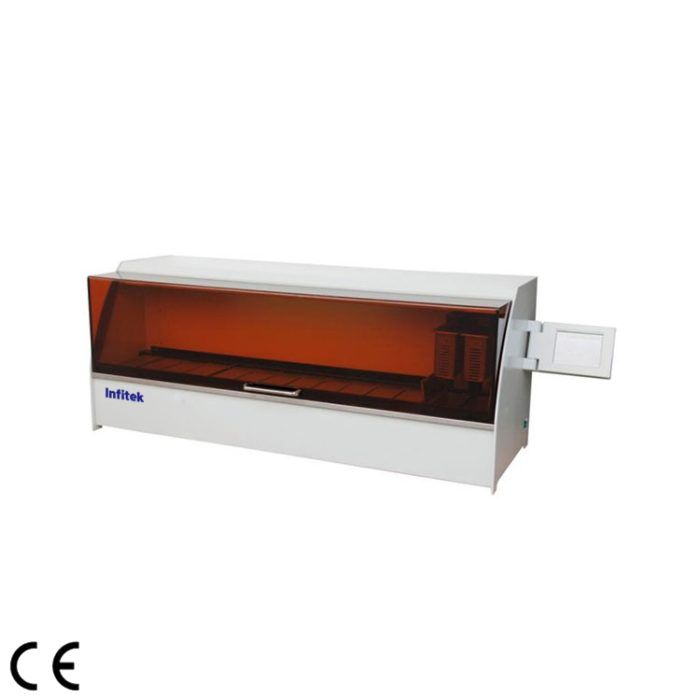

Fully Automated Tissue Processor, TSP-3D

  1. Number of Cups: 14
  2. Capacity of Single Cup: 1500 ml
  3. operation mechanisms: 2 sets
  4. Basket capacity: 2 basket, 100 pcs/basket
  5. Frequency of Agitation: Adjustable 0-6 times/minute
  6. Temperature Range: RT – 80℃ ±1℃

Share the product



  1. Flexible transmission system, low noise, wear-resistant
  2. Two sets of operation mechanisms doubles the processing capacity. Tissue specimens can be separately placed into different baskets according to size, texture, and origin, thus improving processing performancem. Optional single-mechanism mode for processing a smaller number of tissue specimens to ease the operation
  3. 20 editable programs for each of A and B can be stored in the system
  4. Integrated high-quality LCD screen with intuitive bilingual (Chinese/English) software
  5. Fully intelligent design, enabling timely determination and automatic recovery from an abnormal event
  6. Real-time visual simulation with icons displays working status dynamically, clearly and intuitively
  7. Green inner-cycling air purification system to highly efficiently adsorb and remove poisonous gas; well-sealed gas-effluxion mechanism to effectively improve the operational environment
  8. This system can be automatically started at any time as programmed (Setting Range 0-99 hours and 0-59 minutes)
  9. Automated fan and light control
  10. Internal dry heating mechanism and triple protection channels offer high-precision automatic gradient temperature control. Automatically determines the time of heating.
  11. Low-energy-consuming control circuit with power protection function. Battery backup with more than 30 hours of running power
  12. Power Protection Station: Station 7 for A basket and Station 5 for B basket, ensuring continued operation during a power outage.
  13. Manual operation can be conducted anytime during the programmed automatic operation, allowing user to check or add tissue specimens during the operation
  14. 200 or more specimens can be processed at the same time


Number of Cups  14(10 for reagents, and the cups at the 11th, 12th, 13th, and 14thstations are used for paraffin melting);
Number of baskets 2
Capacity of Each Cup  1500ml
Temperature range  RT – 800C
Temperature Control Precision  ±10C
Length of Processing Time in the Cup  Any length between 0 and 99 hours for the 1st and 2nd cup, Any length between 0 and 24 hours for the 3nd to 14th cup
Dripping Time  Adjustable within 10s – 60s,shake/drip above cup
Frequency of Agitation  Adjustable within 0 – 6 times/minute
Working Voltage  AC220V±10%50HZ (standard model); AC110V±10% 60HZ
Power Requirements  550W
Dimensions  1250×440×495 mm (W×D×H)
Weight  92kg
