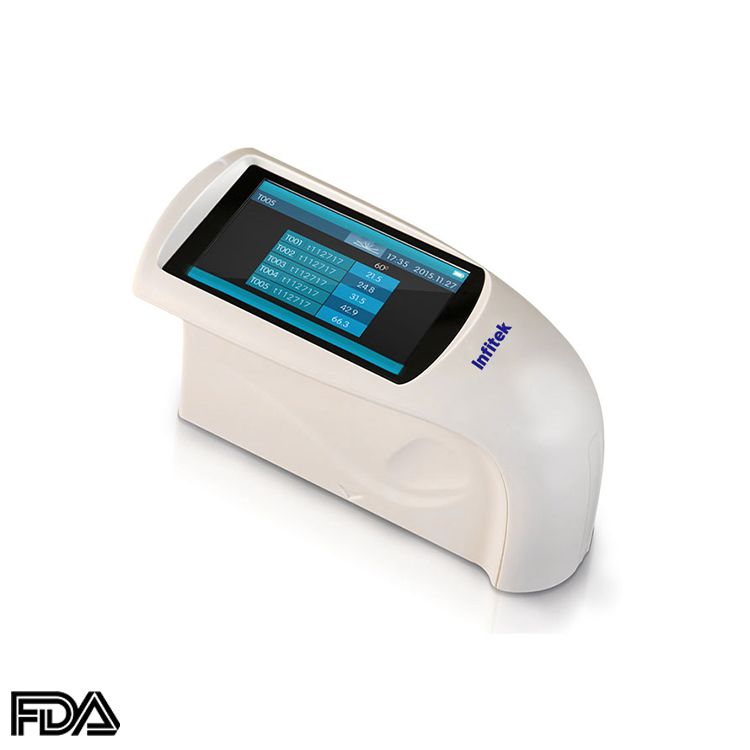

Gloss Meter, GLOM-60P

  1. Measure Angle: 60°
  2. Measurement Range: 0~1000GU
  3. Display 5 sets of measurement data
  4. Connect to PC
  5. Large touch screen operation
  6. Large storage to save over 5000 data
  7. Built-in lithium-ion rechargeable battery

Share the product



1.60° angle for semi gloss
2.Display 5 sets of measurement data, good for comparison
3.Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
4.Continuous mode to check uniformity over large areas
5.Connect to PC, more extend functions
6.Input gloss value manually
7.Large touch screen operation, easy to use
8.Beauty appearance, good man-machine communication interface
9.Powerful functions to meet many different requirements
10.Large storage to save over 5000 data
11.Built-in lithium ion rechargeable battery.


GLOM-60P 60° Precise Gloss Meter
Model GLOM-60P
Measure Angle 60°
Comply with standard ISO 2813、GB/T 9754、ASTM D 523、ASTM D 2457
Measuring Area (mm) 9X15
Measurement Range 0~1000GU
Division Value 0.1GU
Measurement Range



0-10GU            10-100GU      100-1000GU
± 0.1GU           ± 0.2GU           ± 0.2%GU
± 0.2GU           ± 0.5GU           ± 0.5%GU
Measurement Standard Conform with JJG696 first class gloss meter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Errors ±1.2 , ± 1.2%
Measuring Time 0.5s
Dimension L*W*H : 160mm*75mm*90mm
Weight 350g
Language Chinese/English
Battery 3.7V,3200mAh Li-ion Battery, >10000 times(within 8 hours)
Viewing Screen TFT 3.5 inch, capacitive touch screen
Interface USB/RS-232
Data Save Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature 0~40℃(32~104°F)
Storage Temperature  -20~50℃(-4~122°F)
Humidity <85% relative humidity, no condensation
Standard Accessories Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.
