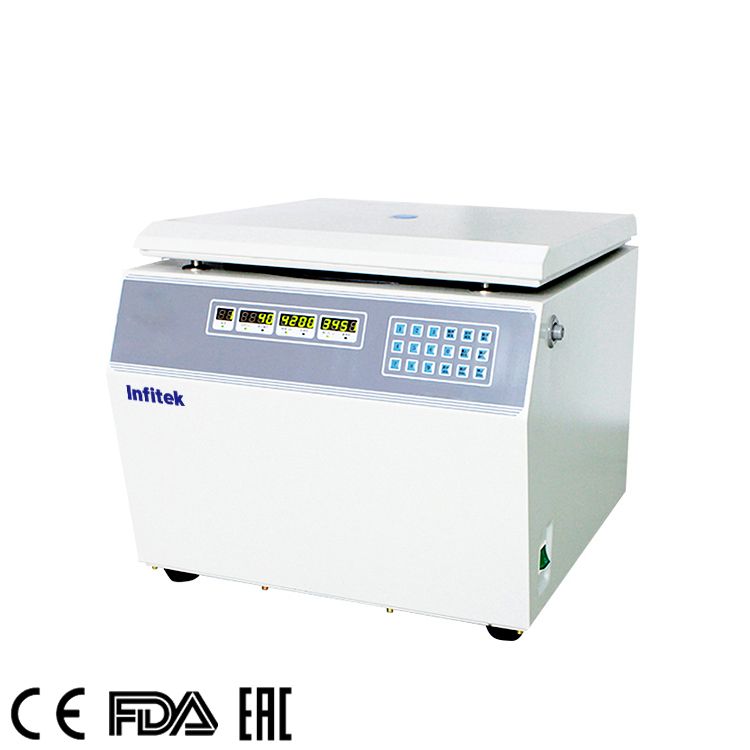

Low Speed Centrifuge, Large Capacity, CFG-550J

  • Max. speed/RCF: 5500 rpm/5400×g
  • Max Capacity: 4×750 mL

Share the product


  1. Universal centrifuge with selectable options(optional fixed-angle rotor, swing-bucket rotor, microplate rotor).
  2. Silent operation
  3. Microprocessor controlled centrifuge with variable speed and time setting.
  4. LCD display for easy setting and readability across multiple parameters (rotor model, temperature, time, RCF and RPM).
  5. Soft touch key pad for parameters setting, special key for RCF.
  6. Brushless AC motor for maintenance free and long service
  7. Double lids and double locks, lid locking and holding during rotor run for safe operation.
  8. Programmable-user can save and run up to 20 user-defined programs.
  9. Adjustable ramp & brake speeds (up to 15 speed selection).
  10. Count down at set RPM & one touch short spin operation.
  11. Double layer stainless steel structure, anti-corrosion spray coating chamber.
  12. Automatic imbalance detection with audible alarm & overspeed protection.
  13. User can set parameters when centrifuge is in operation (not program).
  14. The shortest acceleration/braking time less than 30s.


Model CFG-550J
Max. speed 5500 rpm
Max. RCF 5400×g
Speed accuracy ±10 rpm
Noise ≦65 dB
Timer 1 -999min, continuous operation, one touch short spin operation
No. 1: Swing out rotor 4×750 mL, 4200 rpm, 3648×g
Adapter 4×500 mL, 4×250 mL, 12×100 mL, 20×50 mL(conical), 28×50 mL(round bottom), 56×15 mL/20 mL,(conical), 76×15 mL(round bottom), 96×5 mL(evacuated blood tube), 148×5 mL(RIA)
No. 2: Swing out rotor 16×100 mL, 16×50 mL, 64×15 mL (round bottom), 4200 rpm, 3451×g
No.3: Swing out rotor 148×5 mL (evacuated blood tube), 4200 rpm, 3648×g
No.4: Angle rotor 6×50 mL, 5500 rpm, 5400×g
No. 5: Mold reaction plate 96-well microplate: 2×2, 96-well deep well plate×2, 5000 rpm, 3530×g
NO.6:Mold reaction plate 96-well microplate: 2×4, 96-well deep well plate×4, 5000 rpm, 3530×g
Weight 89 kg
Power 600 W
Dimensions (W×D×H) 470mm×575mm×520mm/600mm×790mm×890mm
