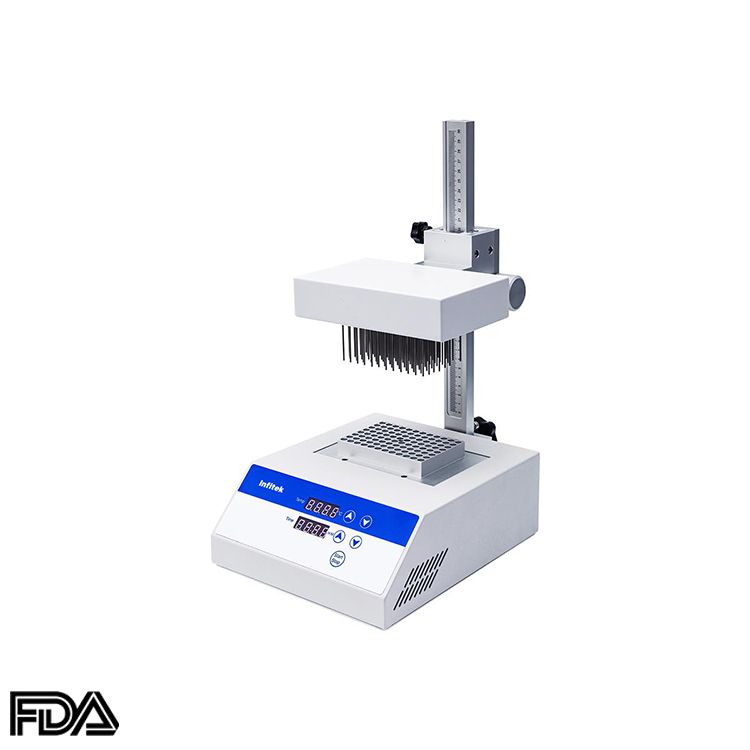

Nitrogen Evaporators, NEC150-1A

  • Block Quantity:1
  • Nitrogen Flow:0~12L/min
  • Temperature Control Range:RT.+5℃ ~150℃
  • Heating Up Rate:≤ 30min (20℃~150℃ )

Share the product


Designed for Microplate with unique heating aluminum block which can transmit heat to sample quickly . Fast efficient sample concentration controlled by PID with high precise temperature, with display, Timer, beep alarm functions.


  • Independent needles avoid cross contamination.
  • Convenient to adjust gas for samples.
  • Accurate temperature up to 150℃.
  • Safe to use due to the height adjustable stand.
  • Stand rod with scale for accurate height control.


Model NEC150-1A
Block Quantity 1
Nitrogen Flow 0~12L/min
Temperature Control Range RT+5℃ ~150℃
Heating Up Rate ≤ 30min (20℃ ~150℃ )
Temperature Stability @40℃ ≤ ±0.3℃
Temperature Stability @100℃ ≤ ±0.5℃
Temperature Stability @120℃ ≤ ±1℃
Timer 0~99h59min
Pressure ≤ 0.2MPa
Power 400W
Dimension(W*D*H) 220*290*540mm
N.W./G.W. 6.4kg/10kg
Shipping Dimension(L*W*H) 580*410* 340mm

Optional blocks

Type Tube Diameter Dimension(W*D*H) Picture
D17 96×0.2ml PCR plate, 8×0.2ml strip 153*96.5*33.5mm Nitrogen Evaporators, NEC150-1A
D18 Elisa plate, deep well plate, cell culture plate 153*96.5*22.5mm Nitrogen Evaporators, NEC150-1A

Gas flow controller for option

Nitrogen Evaporators
