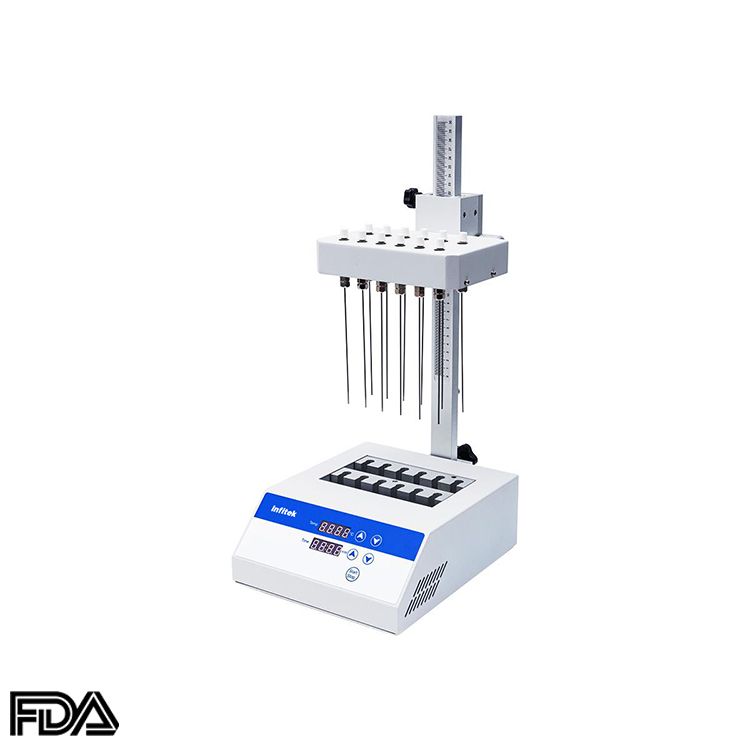

Nitrogen Evaporators, NEC150-1B

  • Block Quantity:1
  • Nitrogen Flow:0~12L/min
  • Temperature Control Range:RT.+5℃ ~150℃
  • Heating Up Rate:≤ 30min (20℃~150℃ )

Share the product


Fast efficient sample concentration controlled by PID with high precise temperature, with display, timer, beep alarm functions. The heating aluminum block can transmit heat to sample quickly and make the device an ideal replacement of the traditional water bath concentrator. This sample concentrator widely used in fields of drug testing, hormone analysis, liquid phase and spectrometry and etc.


  • Large temperature range, high efficient.
  • Unique designed block with slotsfor sample observatio
  • Independent needles avoid cross contamination.
  • Device can be used in fume hood to handle poison gas.
  • Built-in over heat system.
  • LED display, easy to operate.


Model NEC150-1B
Block Quantity 1
Needles Length 150mm
Gas Chamber Adjustable Distance 280mm
Nitrogen Flow 0~12L/min
Temperature Control Range RT+5℃ ~150℃
Heating Up Rate ≤ 30min (20℃ ~150℃ )
Temperature Stability @40℃ ≤ ±0.3℃
Temperature Stability @100℃ ≤ ±0.5℃
Temperature Stability @120℃ ≤ ±1℃
Timer 0~99h59min
Pressure ≤ 0.2MPa
Power 400W
Dimension(W*D*H) 220*290*540mm
N.W./G.W. 6.7kg/10.3kg
Shipping Dimension(L*W*H) 580*410* 340mm

Optional blocks

Type Capacity Block Hole Diameter Dimension


K1 φ10mm*12 10.5 mm 153*96.5*50mm Nitrogen Evaporators
K2 φ12mm*12 12.5 mm 153*96.5*50mm Nitrogen Evaporators
K3 φ13mm*12 13.5 mm 153*96.5*50mm Nitrogen Evaporators
K4 φ15mm*12 15.5 mm 153*96.5*50mm Nitrogen Evaporators
K5 φ16mm*12 16.5 mm 153*96.5*50mm Nitrogen Evaporators
K6 φ19mm*12 19.5 mm 153*96.5*50mm Nitrogen Evaporators
K7 Φ20mm*12 20.5 mm 153*96.5*50mm Nitrogen Evaporators
