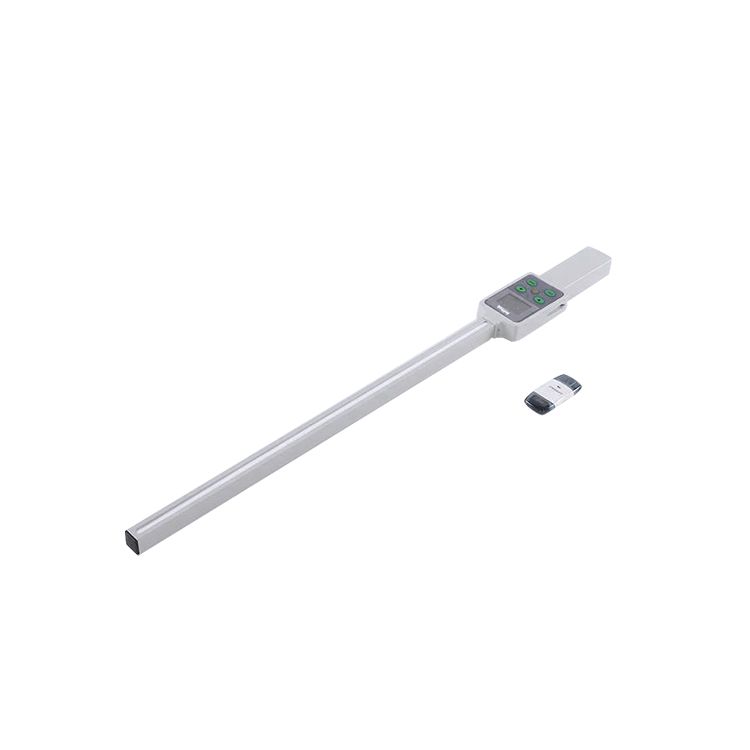

Plant Canopy Analyzer, BPCN-1000

  1. Measuring Range: 0-2700μmol ㎡/s
  2. Resolution: 1μmol ㎡/s
  3. Response time: 10 μs

Share the product


BPCN-1000 Plant Canopy Analyzer is widely applied for farming production and agricultural research, canopy energy resource investigation, measure the light interception among plant canopy, and research the relation between plant growth & development, production quality and light utilization. The analyzer is used for measure and record the PAR value in wave band400nm-700nm , the measured value is 0-2700μmol ㎡/s.


  • Integration design, it includes LCD, operation buttons, SD card plug and measure probe.
  • Menu operation is easy; small size and portable
  • Large store capacity. Convenient data management.
  • Low power dissipation with reasonable power management with automatically shut down and restarts action.
  • Manual and auto measure method are available.


Measuring Range 0-2700μmol ㎡/s
Resolution 1μmol ㎡/s
Response time 10 μs
Auto-collecting interval 1-99minutes
Auto-collecting times 1-99times
Store capacity 2GB(SD card)
Meter length 75cm
Probe length 50cm
Power 2*AA batteries
Working environment 0°C-60°C;100%HM
Qty of Sensors 25(standard equipped)
