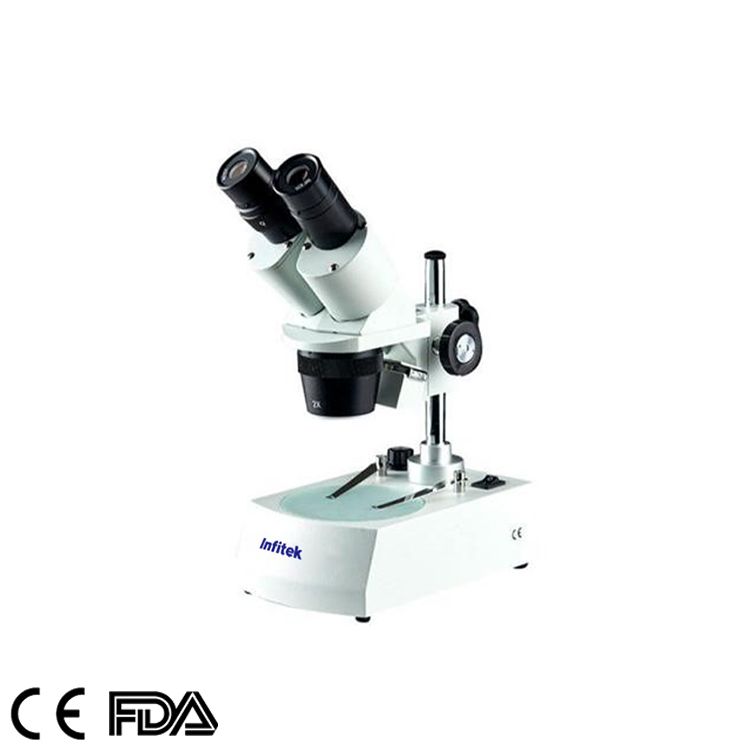

Stereo Microscope, MSC-ST40

  1. Binocular head, 45° inclined
  2. LED illumination

Share the product

Description

Specifications

Model MSC-ST40
Optics Finite Distance Optical System
Magnification 20X-40X, 10X-80X with optional eyepieces and objectives
Observation Tubes Tilting binocular, interpupillary distance adjustment: 54-76mm; Diopter adjustment: ±5 diopters
Viewing Head Seidentopf head ,inclined at 45°
Optical Coating Transmittance ≥ 95%
Eyepiece WF10X/20mm; *Optional eyepiece: 10X/20mm,15X/15mm,20X/10mm
WF10X/20mm;*Optional eyepiece:10X/20mm,15X/15mm,20X/10mm
Objective Shifting and doubling objective combination 2X/4X、1X/2X、1X/3X
Focusing Focusing mount with vertical working distance 50mm
Stand Pole stand, for more options
*Illumination Fluorescent lamp, LED ring light, for more option
Electricity 100-240V AC,50/60Hz
Package Dimension (W*D*H) (mm) 360×180×300
Gross Weight (Kg) 6
*Optional Configuration
