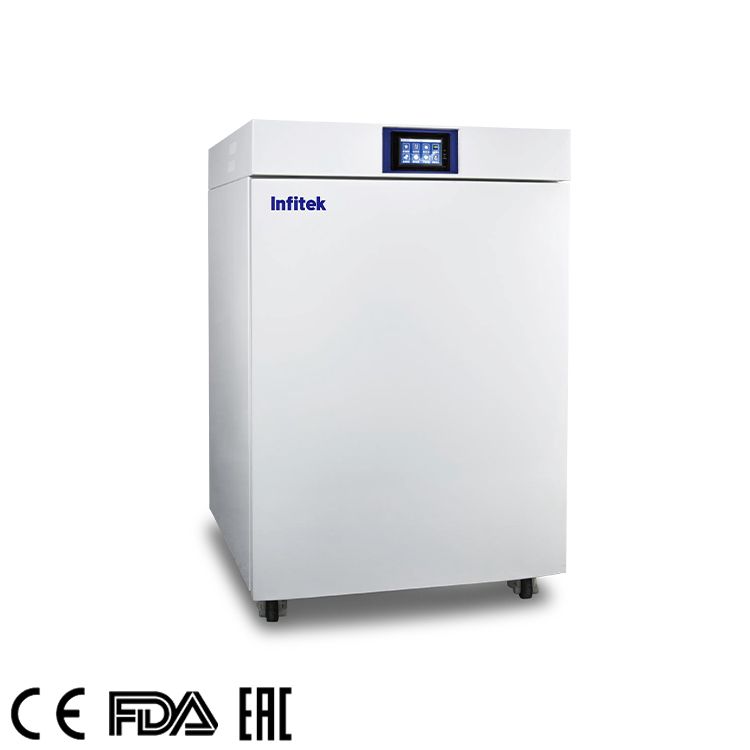

CO2 Incubator, ICB-CO2-80/160

  1. Chamber Volume: 80L, 160L
  2. Temperature Range: RT+3~60℃
  3. CO2  Control Range: 0~20%
  4. CO2  Control Accuracy: ± 0.1%(Imported sensor)

Share the product



CO2 Incubator is widely used in modern medicine, biology, chemistry and agriculture science for the culture of biological cells, tissues and bacterial.



  • The sealing ring of incubator adopts a new type of synthetic silicone sealing strip, which effectively prevents heat loss.
  • Automatically adjust the control parameters according to the ambient temperature and load to achieve the optimal heating method and reduce energy consumption.

Intelligent  control

  • Temperature, gas circuit control, using microcomputer data analysis and intelligent PlD control, touch screen, its high precision, strong anti-interference ability.
  • The water jacket adopts three probes to control the box temperature, water temperature and door temperature respectively.
  • The air jacket type has two probes, which control the temperature of the box and the door respectively.

Internal circulation system

  • Top forced convection system.
  • Adopts high-quality fan and large impeller fan, has higher ventilation efficiency and better temperature uniformity.
  • Adopting PID control technology, the CO2 concentration can be freely set within range of 0 to 20%, alarm for over concentration and concentration rise too slow.

Dedicated sheet metal processing

  • The shelf can be disassembled and can be freely adjusted up and down.
  • The inner chamberis made of 304 high-quality mirror stainless steel, with strong corrosion resistance.

Humanized design

  • Double door design, the inner door is made oftempered glass for easy observation,magnetic sealing design for outer door, good sealing..
  • Natural evaporation for humidification to ensure the chamber can maintain good humidity .
  • Imported infrared sensor and gold-plated probes to ensure accuracy, the life time of sensor is up to 15 years.


  • With over temperature control of visible& audible alarm system
  • When the door opens, the fan will automatically turn off (ICB-CO2-80 turn off the CO2 intake valve at the same time) and heating will be stopped to reduce the pollution caused by air.
  • Alarm function for lack of water, unaspirated, ensuring the safe operation of the equipment.
  • Equipped with sterile air filtration devices and UV light system to reduce pollution


pressure reducing valve, shelf,HEPA filter


Model ICB-CO2-80 ICB-CO2-160
Chamber Volume(L) 80 160
Temperature Range(℃) RT+3~60
Temperature Stability(℃) ≤±0.2
Temperature Uniformity(℃) ≤±0.3
Timing Range 1~9999mins or without timing
CO2  Range 0~20%
CO2  Control Accuracy ± 0.1%(Imported sensor)
Humidity Method Natural Vaporization
Power Supply AC220V, 50Hz
Power Rating(W) 6600 900
Chamber Size (W×D×H)cm 40×40×50 50×50×65
Exterior Size((W×D×H)cm 57×59×93 69×69×100
Net/Gross Weight(kg) 555/85 75/110
Alarm function Over heating, damage for temperature probe, water shortage
