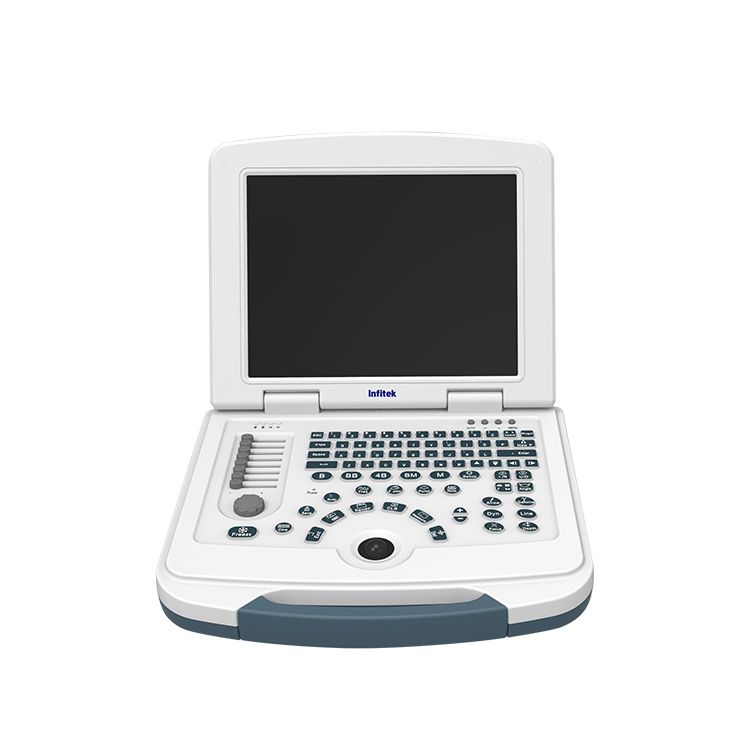

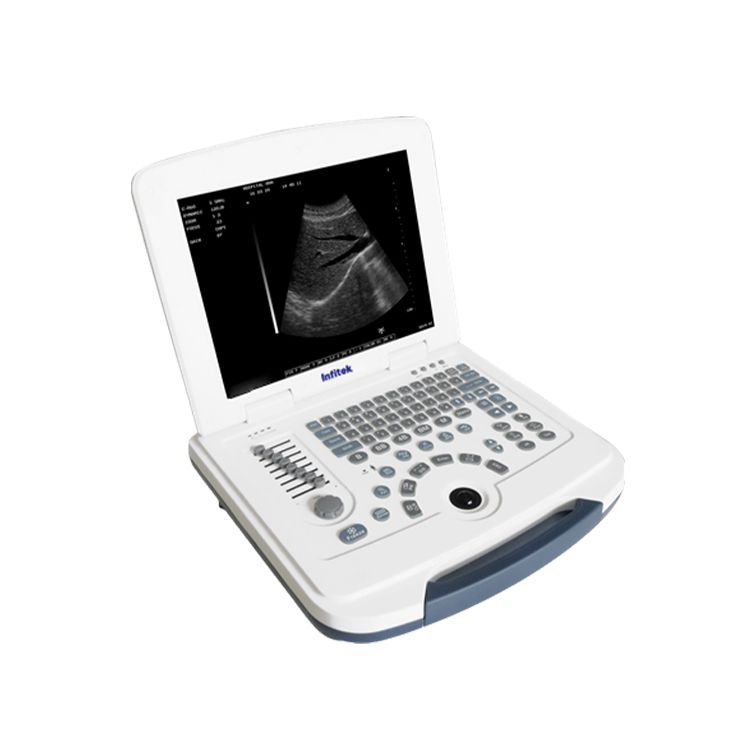

Ultrasound Machine, Black & White, US-H580

  1. Larger capacity movie playback
  2. Automatic image loop demo
  3. External USB storage
  4. Compact size, clear image

Share the product


1. 12.1 inch HD LCD display
2. Rechargeable battery
3. THI and Histogram function
4. Support OB Report: Chinese/English/Spanish/French etc.

Based on high-quality digital imaging technology, intelligent TGC and full 8-stage gain control, it makes image clearer. With large capacity movie playback, image automatic cycle demonstration and external USB storage, this equipment can upload image more conveniently.
As a necessary choice for clinical use , this equipment can be widely used in various fields such as expert visiting, community services, family planning services, emergency centers.


Smooth Workflow

Lightweight and compact body, diagnosis software is simple and easy to use, and the operation process is simple and fast

Brilliant Quality

1. Larger capacity movie playback, automatic image loop demo

2. External USB storage, image upload more

3. Compact size, clear image, easy to convenient operate, strong endurance

Excellent Information processing

1. Comprehensive and rich graphic information

2. High-quality digital imaging processing functions technology, the image is clearer

Ergonomic design

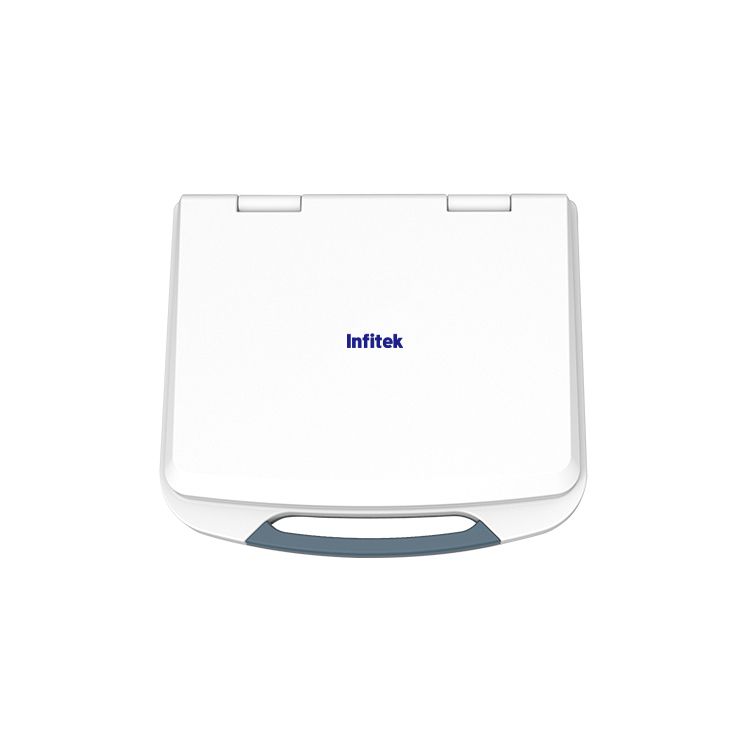

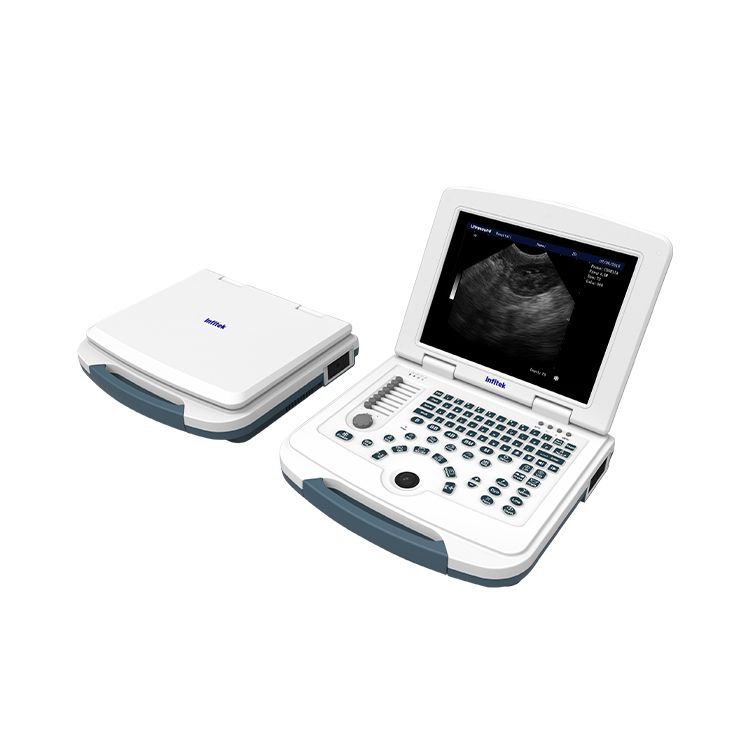

1. Lightweight laptop design permits easy transportation and storage.

2. Flexible and ideal for bedside examinations.


Convex probe


Linear probe


Trans-vaginal probe


Micro-convex probe

Clinical Images - Convex probe

Clinical Images – Convex probe

Clinical Images - Convex probe

Clinical Images – Convex probe


Clinical Images – Linear probe


Clinical Images – Linear probe


Model US-H580
Probe depth 16 Levels
Probe frequency 5 Levels
Main gain 0-100%
Focus 4
Image storage 4920
Pseudocolor 0-7
Scanning area(angle) 3 Levels


Linear correlation 0-5
Gamma correction 0-7
Frame correlation 0-3
Dynamic range 0-135
Cine loop 512 Frames
Body mark 97 Kinds
Image reversal Up/Down, Left/Right, Black/White
Measurement General measurement, GYN & OB measurement package, Andrology measurement, Cardiac measurement
Interface Ports  RS232, VGA, VIDEO, USB*2, DICOM (preset)

Probe family

Probe Frequency Depth
Convex probe (2.0 – 5MHz) 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5MHz 16 level 【126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm】
Linear probe (5.5 – 9.0MHz) 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz 16 level 【126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm】
Trans-vaginal probe (5.0 – 8.5MHz) 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz 16 level 【126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm】
Micro-convex probe (4.0 – 7.0MHz) 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz 16 level 【62,69,83,97,111,125,139,152,166,180mm】
