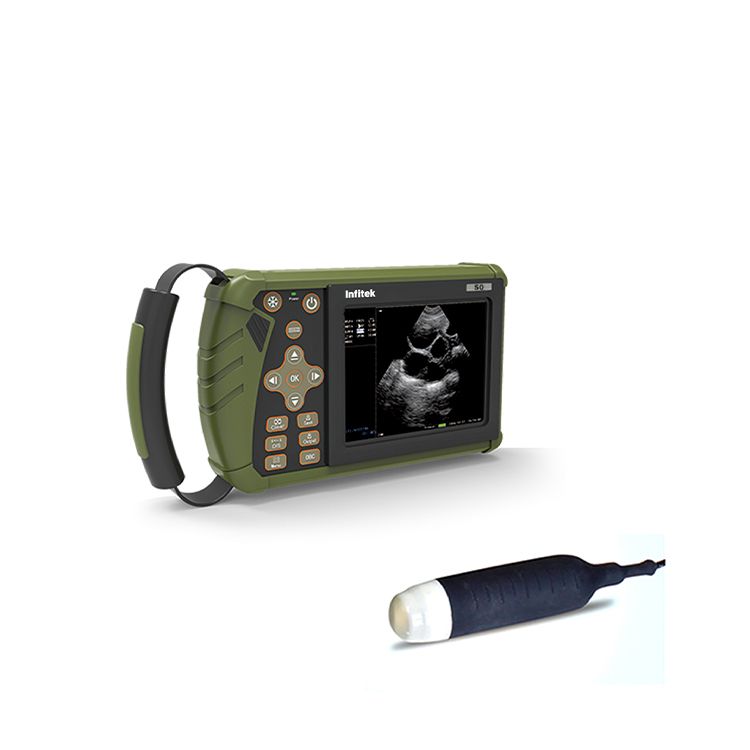

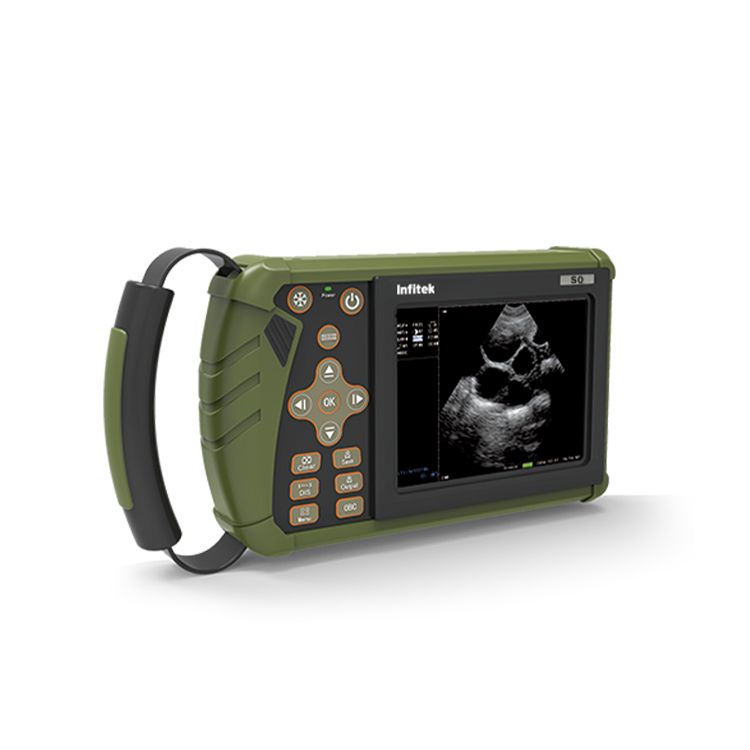

Veterinary Ultrasound Imaging Diagnostic Instrument, US-S0

  • Scanning Mode:Mechanical sector scanning
  • Frequency:5MHz, 3.0MHz, 3.5MHz, 5.0MHz
  • Measurement:Distance,perimeter,area,gestational age,etc.

Share the product


It gathers the technology of computer control, digital scan converter (DSC), broadband low-noise voltage amplifier, digital logarithmic compression, digital dynamic filtering, frame correlation processing and edge enhancement to make the whole image clearer and higher in resolution.


  • 5.6-inch LEDHD display
  • 8GTF memory card
  • Various of pseudo colordisplay
  • Winter mode:one key to start
  • Compact and portable, waterproof and user-friendly
  • Large capacity Lithium battery (more than 6 hours)
  • Comfortable hand-held body,ultra-light weight,easy to carry


Model US-S0
Scanning Mode Mechanical sector scanning
Frequency 2.5MHz, 3.0MHz, 3.5MHz, 5.0MHz
Display Mode B,B+B
Depth 46-208mm,adjustable
Gain Control Far field, near field, main gain
Frame Frequency 30frames/s
Grey Map 256
Magnification 15kinds
Monitor 5.6-inch LED
Measurement Distance,perimeter,area,gestational age,etc.
Extend Ports Mini USB port、TF card slot.
Power Consumption 13W(working in non-charging state)/25W(working in charging state)
Image Processing Up / down, left / right, black / white invert, real-time freeze.
Pseudo Color 8 kinds
Playback 255 frames
Dimension 240*120*45mm
N.W./G.W. 0.8/4.5kg
Shipping Dimension 390*550*180mm
