MILL

    • Single Grinding Time: 2min
    • Batch Capacity: 0.1~100g
    • Grinding Chamber: 200ml
    • Liquid Nitrogen Filling System: Manual/automatic optional
    • Polymers, rubber, textile materials, grain particles, hair, nails, skin, bones, muscle tissue, etc.
    • Feed Size: <10mm
    • Speed: 50-130rpm
    • Final Fineness: <5μm
    • Easy and safe to operate.
    • Suitable for dry, wet & cryogenic grinding.
    • Sample type: hard, soft, brittle and pasty samples.
    • Speed: 500-1000rpm
    • Feed Size: <40mm
    • Final Fineness: <0.5mm
    • Specially designed for solid sample preparation in the laboratory.
    • Zero point adjustment to compensate the wear.
    • Feed Size: <10mm
    • Final Fineness: <0.1μm (up to nanometer for colloidal grinding)
    • Speed: 30-400rpm, 100-650mpm, 50-650mpm
    • Effective Sun Wheel Diameter: 360mm, 260mm, 290mm

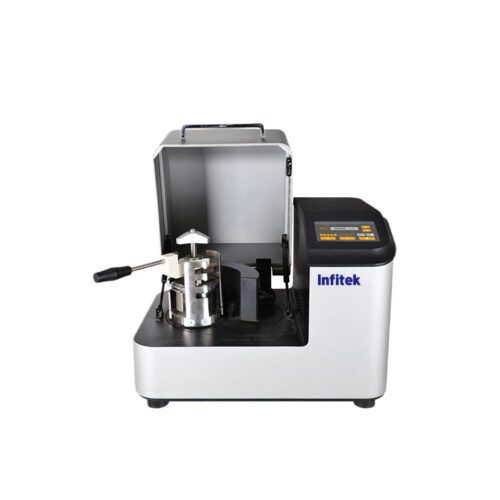

    • Planetary ball mills have 1,2 and 4 grinding stations as option.
    • Grinding jars equipped with safe closure device for gas-tight and dust-proof.
    • Feed Size: <40mm
    • Final Fineness: <300μm
    • Batch Quantity: 150-700ml
    • Coarse grinding and fine grinding can be realized in one step.
    • Special for high water, oil or fat content sample
    • Sample type: Soft, elastic, fibrous, water-bearing, oily, fatty, dry sample
    • Feed Size: <10mm
    • Final Fineness: <5μm
    • Suitable for dry, wet and freezing grinding.
    • Sample type: hard, soft, elastic and fibrous samples
    • Designed for high sample throughput, up to 192 sample preparations.
    • Frequency: 15-30Hz, oscillation 900-1800 times/min
    • Clamp Movement: 32mm
    • Vertical up and down grinding design
    • Suitable for dry, wet and cryogenic grinding.
    • Suitable for centrifuge and cryogenic vials of 2ml/5ml/50ml
    • Feed Size: <60*80mm
    • Final Fineness: 0.1-20mm
    • Used for batch or continuous processing of solid samples.
    • Long fibers and large volume samples can be processed directly without pre-crushing.
    • Application fields: Electronics, environment, cement, agriculture, etc
    • Feed Size: <10mm
    • Final Fineness: < 40μm
    • Ring Sieve: 0.08, 0.12, 0.20, 0.25, 0.50, 0.75, 1.00, 2.00mm
    • Rotor-ring sieve two stage grinding system ensures reliable grinding result.
    • Sample type: Soft, elastic, fibrous, water-bearing, oily, fatty, dry sample.
