- Capacity:416L
- Cooling method:Forced Air Cooling System
- Defrost:Auto
- Refrigerant:R290
- Sensor Type:NTC
- Temperature controller:Microprocessor

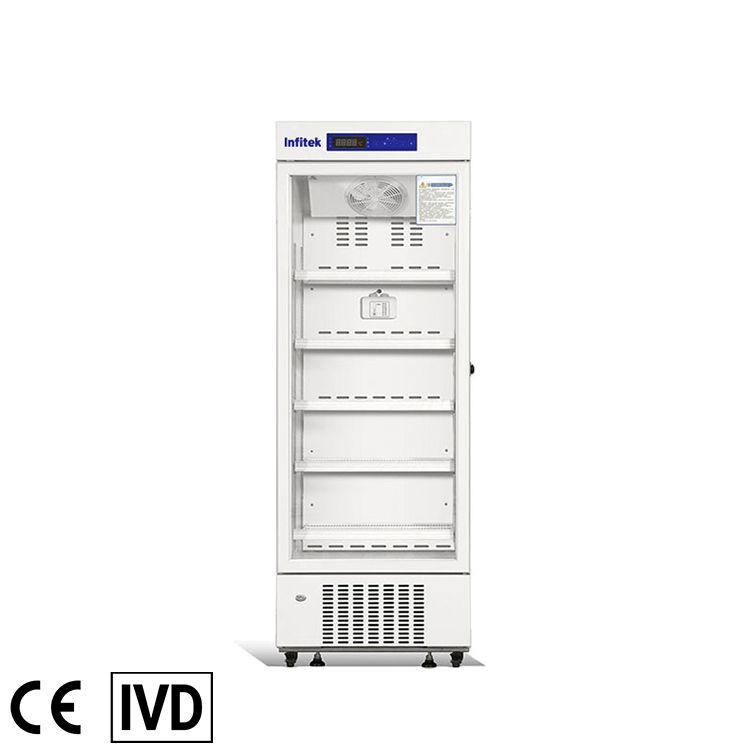

2~8℃ Single Door Laboratory Refrigerator, PR5-420
Description
Reliability and Key Features
High efficiency specially compressor with known field proven reliability.
Permanently lubricated cooling fan for safety and longevity.
Forced-air cooling with optimized air distribution system designed.
To achieve maximum temperature uniformity and stability.
Optimized refrigeration system design for more effective cooling and speedy recovery.
Temperature variation within ±3℃.
Adjustable temperature range 2-8℃.
Microprocessor control digital display, and temperature adjustment with an increment of 0.1℃.
Large digital display screen.
Characteristic Function
Safety door lock design to avoid door ajar.
Big digital screen display for easy observation.
Optional testing hole.
Adjustable shelves.
Inner light design for a clear display.
Safety
Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light.
Capable of alerting failures due to high and low temperature sensor error, door ajar, power failure.
Forced Air-cooling System
Advanced forced cooing system to keep inside temperature stable and uniform. Finned evaporator with special cycle design of forced air cooling system to ensure no-frost inside.
Ergonomic Design
Optimized space utilization design with multi-level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.
Safety lock to prevent unauthorized access.
Caster design and leveling legs LED interior light.
Model | PR5-420 | |
Capacity (L) | 416 | |
Dimension (W*D*H) | Internal (mm) | 685*429*1380 |
External (mm) | 785×552×1927 | |
Temperature | Range (℃) at RT.10~32℃ | 2~8(Optional 2~10 ; 2~14) |
Sensor | NTC | |
Controller | Microprocessor | |
Cooling system | Refrigerant | R290 (CFC Free ) |
Defrost | Auto | |
China compressor qty | 1 | |
Display | Digital display | |
Audible&Visible Alarm | High/Low temperature | Standard |
High ambient temperature | / | |
Abnormal voltage | / | |
Power failure backup system(alarm) | 8h | |
Door ajar | Standard | |
Material | Internal | Electro-galvanized steel with antimicrobial powder coating |
External | Electro-galvanized steel with antimicrobial powder coating | |
Accessories | USB port | Optional |
Casters | Standard | |
Chart recorder | / | |
Temperature data logger | Optional | |
Remote alarm port | Standard | |
Test hole (Qty) / Diameter (mm) | 1/25 | |
Shelves / Drawers (Qty) | Shelves/5 | |
Sound Emission (dB) | 50 | |
Electricity | Voltage/Frequency | AC110/220V±10%, 50/60Hz |
Consumption (W) | 330 | |
N.W./G.W. (Kg) | 120/146 | |
Shipping Dimension (W*D*H) (mm) | 870*660*2070 |
