| Model |

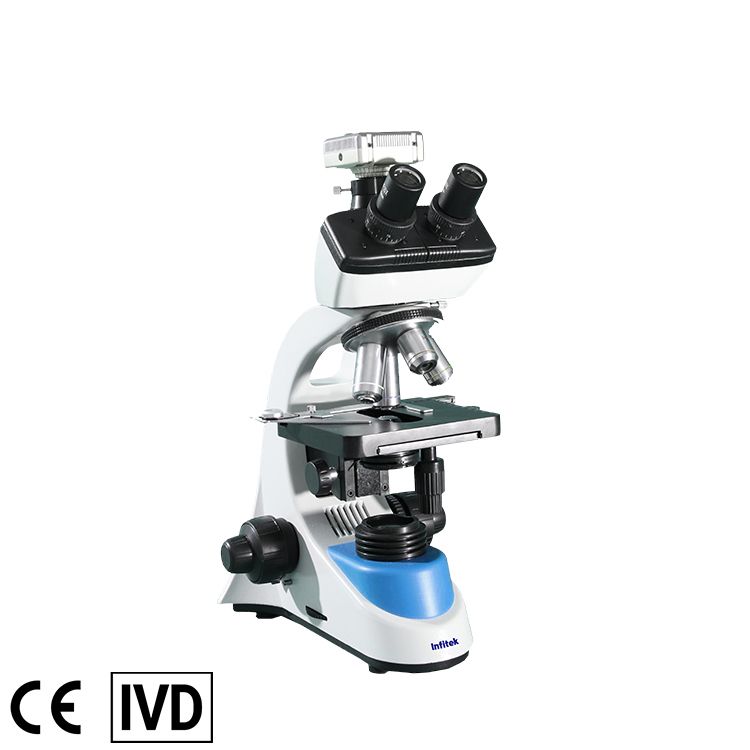

MSC-B208T(Sliding) |
| Optics |
Finite Distance Optical System / *Infinity Optical System |
| Observation Tube |
Tilting trinocular, interpupillary 55-75mm |
| Viewing Head |
Sliding head, inclined at 45° |
| Optical Coating |
Transmittance ≥ 95% |
| Eyepieces |
Wide field eyepiece WF10×18mm |
| *Wide field eyepiece WF10×20mm |
| Objective |
Achromatic objective 4X, 10X, *20X,40X, 100X |
| *Plan achromatic objective: 4X, 10X, 20X, 40X, 100X |
| *Plan phase objective: Ph10X, 20X, 40X, 100X |
| *Infinite plan achromatic objective: 4X, 10X, 20X, 40X,100X |
| Nosepiece |
Quadruple nosepiece / *Quintuple nosepiece |
| Stage |
Double layers mechanical stage 140×135mm / 75×50mm (*Heating module) |
| Condenser |
Abbe NA1.25 with iris diaphragm & filter |
| Focusing |
Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 22mm |
| Illumination |
3W LED Illumination, brightness adjustable |
| *6V 20W Halogen lamp, brightness adjustable |
| Electricity |
100-240V AC,50/60Hz |
| Package Dimension (W*D*H) (mm) |
390*270*480 |
| Gross Weight (Kg) |
7 |
| *Optional |
Turret phase contrast kit, dark field attachment, fluorescent attachment |
| MSC-B208T: Microscope camera (Standard imaging software) / Win 10 Pad / Digital display |
| *Optional Configuration |
*Optional Configuration |
