- Flammable poison storage cabinet
- Activited carbon filter system
- 99.99% high efficiently filtering.
- 50mm leakage proof sump
- Temperature,humidity VOC alarm device

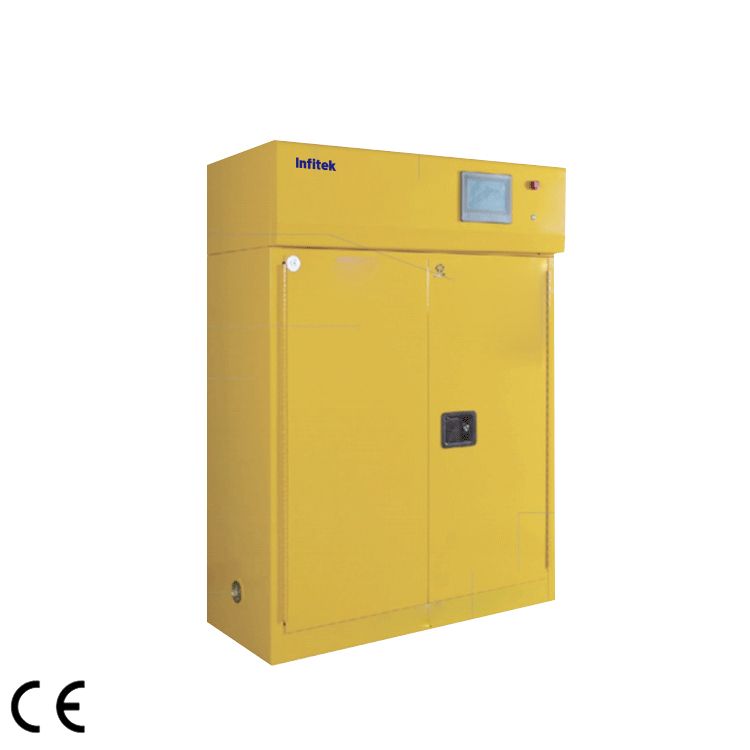

Gas-Purifying Chemical Safety Cabinet, SSC-F1100, SSC-F1101
Description
- Choose a proper high efficient filter according to the chemicals
- The hazardous air goes though molecular filter become fresh air.
- The turbine motor draws the air from the outside of cabinet.
- The air brings the hazardous vapour into the filtration system.
- Activited carbon filter system with US imported fan
- Reflective waring label
- Galvanized removable shelf
- Double wall 1.2mm steel plate 38mm air insulating space
- Vent with anti-prevention
- Touch screen computer control system real time monitor the humidity temperature and concentration in the cabinet
- Accomplate with OSHA standard static grounding connector
- 50mm leakage proof sump
- 3-Point locking system:Double locks +3 latch, easy to open 180 degrees cupboard door, equipped with double key; optional padlock, realizing double lock management.
- A temperature and humidity controller is adopted, to monitor the relative temperature and humidity in the cabinet,digital display settings and measured values, and it will alarm immediately once the temperature and humidity exceed the setting values.Silent turbine fan draws chemical vapors from bottles into filter system with high absorption capacity. No static.no spark and super silence motor Various type filters help realize 99.99% high efficiently filtering.
| Model | SSC-F1100 | SSC-F1101 |
| Specification | ||
| External Dimension(H*W*D)(mm) | 1400*1090*460mm | 1930×1090×460mm |
| Door | Double door | Double door |
| Lock | 3-points lock | 3-points lock |
| Shelf | 1 galvanized shelf | 2 galvanized shelf |
| Colour | Yellow | Yellow |
| Noise | 40 dBA | 40 dBA |
| Rated Voltage | 220V/50Hz | 220V/50Hz |
| Electric Powder | 40w | 40w |
| Rated current | 2A | 2A |
| Configure | ||
| Filters(pcs) | 3 | 3 |
| Fans(pcs) | 1 | 1 |
| Display screen | Yes | Yes |
| Power cord(pcs) | 1 | 1 |
| Control system(unit) | 1 | 1 |
| Temperature and humidity alarm system | Yes | Yes |
| VOC alarm | Yes | Yes |
| Optional parts | ||
| Shelf | 0-2pcs | 0-3pcs，suggestion 2pcs |
| Filter | SFGL OG: Organic filter | |
| SFGL AG: Inorganic filter | ||
| SFGL FO: Formaldehyde filter | ||
| SFGL AM: Ammonia filter | ||
| Filter Alarm | Ammonia gas alarm | |
| HCL alarm | ||
| Formaldehyde alarm | ||
