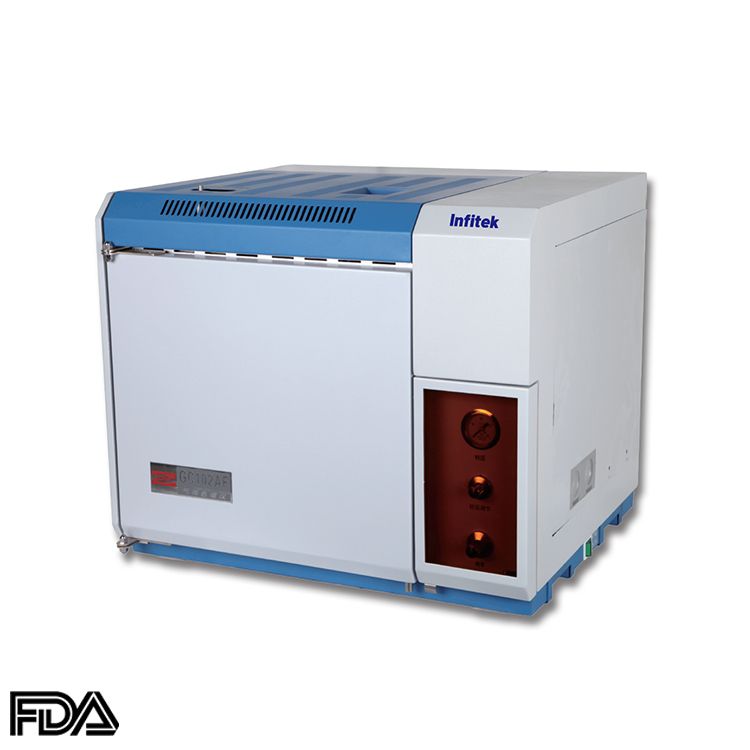

Gas Chromatograph, GC-I102A

  1. Detector: FID
  2. The computer reverse control
  3. On-column injection, Instantaneous vaporization injection, Gas injection
  4. Open computer system
  5. Large capacity oven

Share the product



As a new generation instrument, GC-I102A Gas Chromatograph applies the computer reverse control technology and can conduct remote detection and fault diagnosis, equipped with a flame ionization detector (FID).

  1. PC control, user-friendly interface, and easy to operate.
  2. Temperature control is of high accuracy (better than ±0.1℃). Heating speed is fast and overshoot temperature is small.
  3. Self-diagnosis, power protection, oven over-temperature protection, and automatic ignition.
  4. It can accurately display the temperature control settings, actual value, and FID amplifier sensitivity.
  5. The single gas system and precise scale pneumatic control valve contribute to excellent reproducibility and stability and can perform analysis of packed column.
  6. Packed column: on-column injection, instantaneous vaporization injection, gas injection.
  7. Open computer system and NJ2000 chromatography workstation can work together to process data.
  8. Large capacity oven (300mm×280mm×270mm) facilitates the installation of packed column.
  9. Built-in heating wire structure


Temperature Control

  1. Temperature area: column oven, sampler, detector
  2. Temperature range: 15℃~399℃above room temperature (increment: 1℃)
  3. Temperature accuracy: better than ±0.1℃(measured at 200℃)

Flame Ionization Detector (FID)

  1. Detection limit: Dt≤1×10 g/s (octane and hexadecane)
  2. Baseline drift: ≤2×10 A/h
  3. Linear range: ≥10
  4. Max. limit temperature: 400℃


  1. Voltage: 220V~±22V 50Hz±0.5Hz
  2. Power: ≤1500W
  3. Package size: 945mm×655mm×750mm
  4. G.W.:70kg

Optional Accessories

N2000 chromatography workstation
