- Vessel Quantity:6
- Vessel Volume:100mL
- 7 inch touch screendisplay
- 360°Continuous rotating

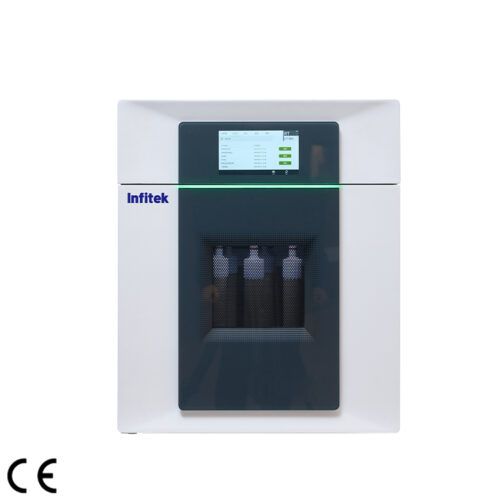

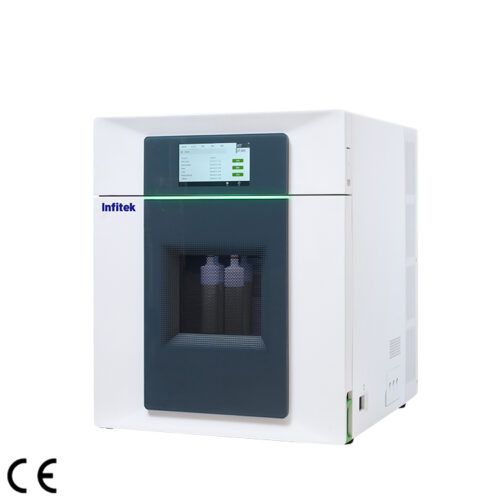

Microwave Digestion System, MDS-610-T6
Description
It is newly designed and fully upgraded with higher performance and safer protection system.The smart design and good performance make it warmly welcomed by users.
Features
- Optional vessel quantity, up to 12 vessels to meet different digestion requirements.
- Vertical design for even distribution of microwave.
- Real-time monitoring for both temperature and pressure of each vessel.
- Contactless sensor monitoring with no burst disk design saves consumables cost and maintenance cost.
- Imported vessel material for both sample vessel and protection vessel highly ensures safety.
- 7 inch color Touch screen with user-friendly interface for easy operation.
- Imported CFRP outer shell material with high strength ensures impact resistance.
- Pre-installed general standard methods, users can also create, save, modify and delete the method.
- 316L industrial stainless steel cavity with multilayer teflon coating avoids acid corrosion, also improves cooling efficiency.
Specifications
| Model | MDS-610-T6 |
| Vessel Quantity | 6 |
| Vessel Volume | 100mL |
| Temperature
Monitoring System |
Temperature monitoring: Contactless IR sensor
Temperature control:Scanning control of each vessel Temperature control range: 50~400℃ Temperature control accuracy:±0.1℃ Display accuracy:±0.1℃ |
| Pressure
Monitoring System |
Pressure monitoring: Contactless sensor
Scan monitoring for each vessel Pressure control range: 0~6MPa Pressure accuracy:±0.01MPa Display Accuracy:±0.01Mpa |
| Sample Vessel Material | Imported TFM |
| Protection Vessel Material | Peek+glass fiber |
| Display | 7 inch touch screen |
| Rotation Mode | 360° Continuous rotating |
| Microwave Tank | 316L Stainless steel tank with corrosion-proof coating |
| Microwave Power | 0-1000W(Adjustable) |
| Microwave Leakage | <5mW/cm2 |
| Air Exhaust | High power corrosion-proof air blower |
| Electricity | AC 220V±10%, 10A, 50/60Hz |
| Dimension(L*W*H) | 490*560*630mm |
| N.W./G.W. | 47kg/83kg(Main device+Accessories) |
| Shipping Dimension(L*W*H) | 710*640*880mm(Main device), 410*400*300mm(Accessories) |
