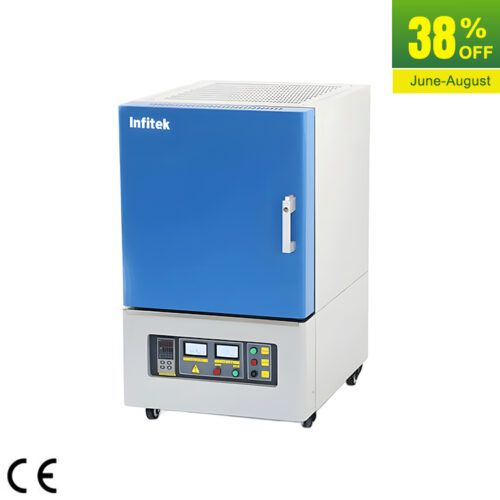

Muffle Furnace, 100-1200℃ Temp.Range, FNC-BX1200-P Series

  1. Temperature Max. Temp(℃): 1200
  2. Accuracy(℃): ±1
  3. Heating Rate: ≤30min
  4. Heating mode: Alloy wire heating in three sides left; right; top side

Share the product

Category:

Description

Key Features

P Type,1200°C maximum operating temperature;
High purity fibrous alumina insulation for maximum energy saving;
PID automatic control via current limiting phase angle fired the resistor, e.g. SC R (Silicon Controlled Rectifier);
Japaness Fuji color LCD 64- segment programmed temperature controller

Safety

Double layer steel structure with air cooling fan to keep furnace’s exteriors safe to touch;
Safety interlock with automatic power off the furnace when door is opened;

Optional

Different chamber size for your choose;
LCD touch screen control for choose
Program software to connect computer for choose.
Content may be subject to modifications or corrections

Specifications

Model FNC-BX1200-2P FNC-BX1200-7P FNC-BX1200-12P FNC-BX1200-16P
Heating mode Alloy wire heating in three sides left; right; top side.
Temperature Max. Temp(℃) 1200
Accuracy(℃) ±1
Heating Rate ≤30min
Chamber Dimension(W*D*H)(mm) 120*200*80 200*300*120 200*300*200 250*400*160
External Size(W*D*H)(mm) 450*685*600 530*785*640 530*785*720 600*895*700
Capacity(L) 2 7 12 16
Heating Element Alloy heating wire
Thermocouple K type
Chamber Material Ceramic fiber
Outer shell cold rolling steel electrostatic spraying exterior
Temp. control mode Japaness Fuji color LCD 64- segment programmed temperature controller
Electricity AC220V/6.6A
50/60HZ
AC220V/13.6A
50/60HZ
AC220V/20.4A
50/60HZ
AC380V/9.9A
50/60HZ
Max. Consumption 1.5kW 3.0kW 4.5kW 6.0kW
