- Max. Temp.: 1200℃
- Continuous working temp.: ≤1100℃
- High purity fibrous alumina insulation for maximum energy saving
- Double layer steel structure with fan cooling to keep furnace’s exteriors safe to touch
- Safety interlock with automatic power off the furnace when door is opened
- 30 segments programmable PID automatic control

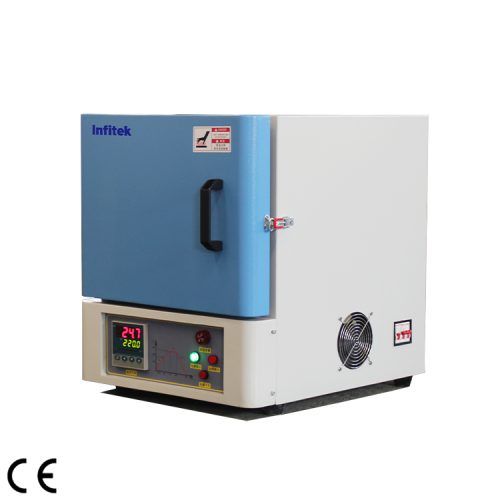

Muffle Furnace, 1200°C High Temp, FNC-AS1200 Series
Description
Standard Features
1. 1200°C maximum operating temperature;
2. High purity fibrous alumina insulation for maximum energy saving;
3. Double layer steel structure with fan cooling to keep furnace’s exteriors safe to touch;
4. Safety interlock with automatic power off the furnace when door is opened(optional)
5. 30 segments programmable PID automatic control.
Accessories (specify these at time of order)
Standard Accessories
Vacuum pump | Thermal gloves | Crucible Tong |Thermal couple | inlet/outlet valves | Flow meter| Vacuum gauge | Furnace door block | Air pressure pipe | Silicon rubber sealing ring | User Manual
Optional
Different chamber size for your choose.
Touch screen (with USB interface)
Computer connection software, control equipment (RKC, 16-segment program + interface + software)
Note: You can only choose one between 2 and 3;
Model | FNC-AS1200-1 | FNC-AS1200-2 | FNC-AS1200-6 | FNC-AS1200-9 | |
Temperature | Max. Temp(℃) | 1200 | |||
Continuous Working Temp.(℃) | ≤1100 | ||||
Heating Rate | 0~30℃/min, suggest to be 15℃/min; | ||||
Accuracy(℃) | ±1℃ | ||||
Uniformity(℃) | ±5℃ | ||||
Chamber Dimension(W*D*H)(mm) | 100*100*100(Or customize as your requirement) | 150*200*150(Or customize as your requirement) | 200*300*200(Or customize as your requirement) | 300*400*300(Or customize as your requirement) | |
External Size(W*D*H)(mm) | 650*600*865mm | 670*600*930mm | 660*750*1020mm | 830*910*1265mm | |
Capacity(L) | 1 | 4.5 | 12 | 36 | |
Heating Element | Resistance wire, Fe-Cr-Al Alloy doped by Mo | ||||
Thermocouple | K type | ||||
Chamber Material | Alumina ceramic fiberboard | ||||
Electricity | AC 220V, 50Hz/60Hz | AC380 V, 50Hz/60Hz | |||
Gas available | all inert gases, mixed gases, nitrogen, oxygen, carbon monoxide, argon, etc. | ||||
Gas control | One or more inlets can be set at the inlet end, each inlet is equipped with a ball valve and connected to a vacuum gauge. The outlet end is connected to an outlet hole and a vacuum hole, and all holes are equipped with ball valves. Equipped with a vacuum pump. | ||||
Sealing method | The furnace door is milled with a flat surface and a silicone strip is embedded in the seal, which has strong sealing performance and is easy to open and close. | ||||
Max. Consumption | 1kW | 2kW | 6kW | 9kW |
