- Wavelength range: 400-780nm, 325nm-1100nm
- Spectral bandwidth: 5nm
- Optical system: Proportional double beam, optical path, holographic diffraction grating

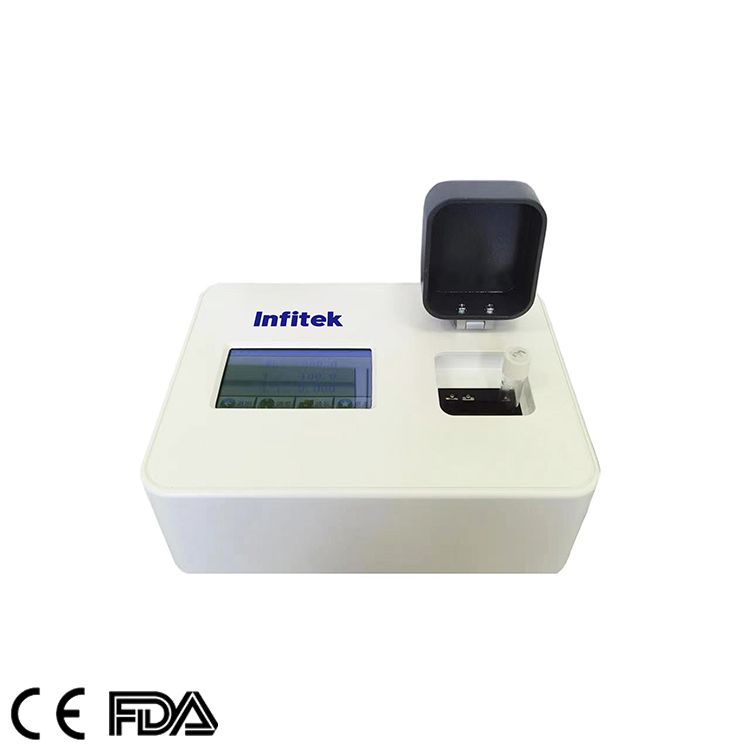

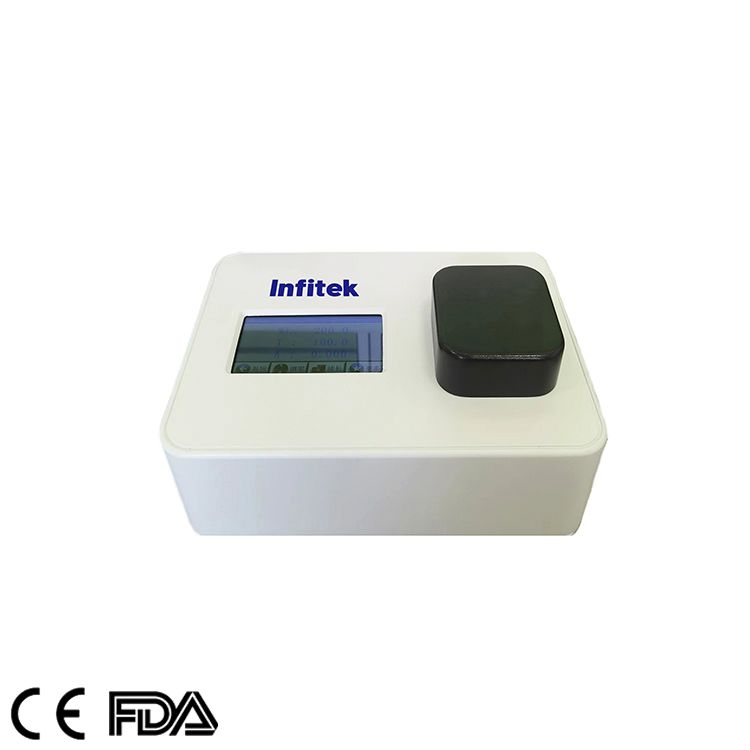

Portable Visible Spectrophotometer, SP-HVP-A4, SP-HVP-A4L
Description
Portable visible spectrophotometer is small in appearance and powerful in function. It adopts true color touch screen and has humanized design, which makes the operation easier and meets the needs of different customers. It is widely used in teaching and daily analysis.
Luminosity measurement
- Photometric measurement: Test the absorbance, transmittance ( SP-HVP-A4) and energy of the sample at a fixed wavelength and measure the results at multiple arbitrary wavelengths at the same time
- Quantitative testing: Establish a standard curve for concentration testing ( SP-HVP-A4L)
- Pre-programmed programs: Stored programs are pre-programmed methods for reagents, test tube tests and pipette tests.
- User preset programs: User programs make “measurement analysis” possible: Users can program their own developed methods. The stored methods can be saved as user programs. The test can then be modified to suit the user’s requirements
- Frequently Used Procedures: User-selected list of common methods/tests
Specifications
| Model | SP-HVP-A4 | SP-HVP-A4L | |
| Spectral bandwidth | 5nm | 5nm | |
| Wavelength range | 400-780nm | 325-1100nm | |
| Optical system | Proportional double beam optical path, holographic diffraction grating | ||
| Wavelength accuracy | ±2.0nm | ±1.8nm | ||
| Wavelength repeatability | ≤1nm | ||
| Wavelength setting | Automatically set wavelength, wavelength resolution : 0.1nm | ||
| luminosity range | -0.602-4.0A 0-400%T | ||
| luminosity accuracy | ±0.002A (0-0.5A), ±0.004A (0.5-1A), ±0.8%T (0-100%T) | ||
| Luminosity repeatability | ≤0.001A (0-0.5A), ≤0.002A (0.5-1A), ≤0.1%T (0-100%T) | ||
| Stray light | 0.05%T (340nm)%T | ||
| Baseline drift (stability) | ≤0.001A/h (500nm,0A) | ||
| Detector | Dual imported silicon photodiodes | ||
| Light source | LED | Tungsten lamp (no optical debugging required) | |
| Display screen | 480*272,5-inch color touch screen | ||
| Printout | Micro printer; PC printer (online use) | ||
| Power supply | DC12V 3A | ||
| External dimensions (L*D*H) | 290x200x120mm | ||
| package size（L*D*H） | 390*310*240mm | ||
| rough weight (KG) | 5 | ||
