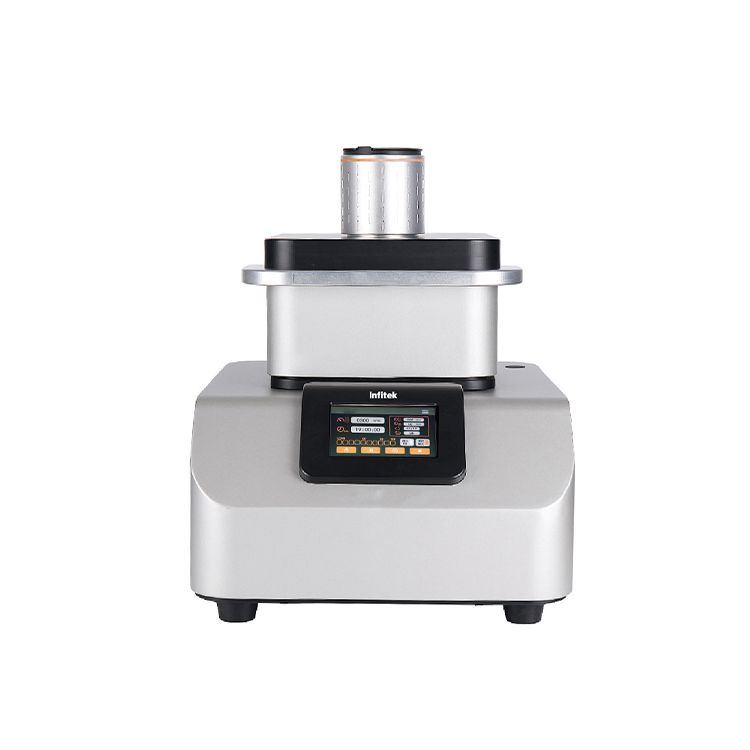

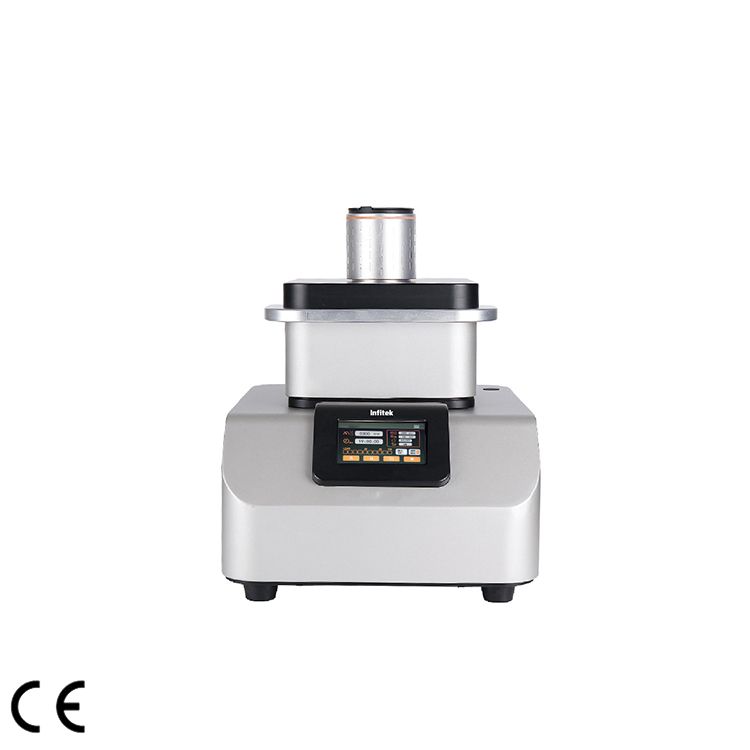

Ultra Centrifugal Mill, GM-G200

  • Feed Size: <10mm
  • Final Fineness: < 40μm
  • Ring Sieve: 0.08, 0.12, 0.20, 0.25, 0.50, 0.75, 1.00, 2.00mm
  • Rotor-ring sieve two stage grinding system ensures reliable grinding result.
  • Sample type: Soft, elastic, fibrous, water-bearing, oily, fatty, dry sample.

Share the product

Category:

Description

Description

It is applicable to a wide range of samples. Based on its efficient grinding technology and rich accessories, it adopts a two-steps grinding method of rotating knife-ring sieve system, which can perform dry and wet grinding of soft, hard, brittle and fibrous samples in a very short time.

Sample type: Soft, elastic, fibrous, water-bearing, oily, fatty, dry sample.

Application fields: Agriculture, environment, soil, electronics, RoHS testing, coal, chemistry, plastics, medicine, feed, grain, dry plants.etc.

Application Examples

Before grinding        After grinding

Ultra Centrifugal Mill Application Examples Ultra Centrifugal Mill Application Examples

Sample: plastics

Rotor: 12 teeth rotor, stainless steel
Sample characteristic: tough
Remarks: the sample need to be frozen before grinding
Time:the sample can be collected immediately after feeding
Before grinding                 After grinding

Ultra Centrifugal Mill Application Examples Ultra Centrifugal Mill Application Examples

Sample: corn

Rotor: 12 teeth rotor, stainless steel
Sample characteristic: hard
Remarks: feed size must be less than 8mm
Time: the sample can be collected immediately after feeding
Advantages

  • The final fineness is less than 40μm.
  • Touch control panel, convenient and easy to operate.
  • Low noise, reliable operation, easy cleaning.
  • Rich accessories for option enable various application.
  • Different fineness can be realized by selection of ring sieves with different aperture size.
  • The speed is adjustable from 6000-18000rpm.
  • Rotor-ring sieve two stage grinding system ensures reliable grinding result.
  • The rotor diameter is 98.5mm and peripheral speed is up to 94.2 m/s, ensuring efficient grinding.

Features

Diversified application, efficient sample preparation

  • Ecological environment protection: plants (root, stem and leaf, etc,) sample preparation, C.H.N determination;
  • Coal, coatings sample preparation; ash content, thermal measurement;
  • Identify the nitrogen composition and protein composition of feed and food;
  • Secondary fuel, rubbish, plastic, electronic elements, the determination of harmful substances.

Grinding art for special samples

  • Plastic and rubber samples will become brittle and easy to grind in liquid nitrogen condition.
  • The distance ring sieve and automatic vibratory feeder can be used for grinding heat-sensitive samples such as paint, resin.
  • The rotor and ring sieve with wear-resisting coatings can be used for grinding rigid and corrosive materials such as fertilizers, chemicals.

Automatic feed device and large sample receiver

  • It can be equipped with an automatic feed device, which can guarantee highly homogeneous grinding results and avoid the risk of sample feed overload.
  • The ground samples are collected in a collecting pan, which is convenient for collection without sample loss and prevents cross contamination of samples.

Diversified accessories

  • Rotor

The rotor has three options: 24 teeth, 12 teeth, and 6 teeth. The 24 teeth is for the crushing of fine sample, while the 12 teeth for general sample and the 6 teeth for coarse massive sample.

  • Ring sieves

Final fineness depends on the different aperture ring sieve. We also provide the reinforcing screen to enhance the stability of the ring sieve.
The material of all the rotors and the ring sieves not only has stainless steel but also the heavy-metal-free for choice to meet different laboratory requirements.
The rotor and the ring sieve are chosen according to the properties of the samples, the required final fineness and subsequent analysis.
We offer a special ring sieve with shear function. For most materials, about 80% of the samples can reach the fineness of less than the half aperture size of the sieve used.

Specification

Model GM-G200
Feed Size <10mm
Final Fineness < 40μm
Speed 6000-18000rpm
Peripheral Speed 31.4~94.2m/s
Rotor Diameter 98.5mm
Ring Sieve 0.08, 0.12, 0.20, 0.25, 0.50, 0.75, 1.00, 2.00mm
Collecting Pan Volume 900ml ( The volume of the sample collected is no more than 300ml)
Rated Power 760W
Electricity 220V, 50/60Hz
External Dimension 400*506*495mm
Package Dimension 620*620*770mm
Net Weight 38kg
