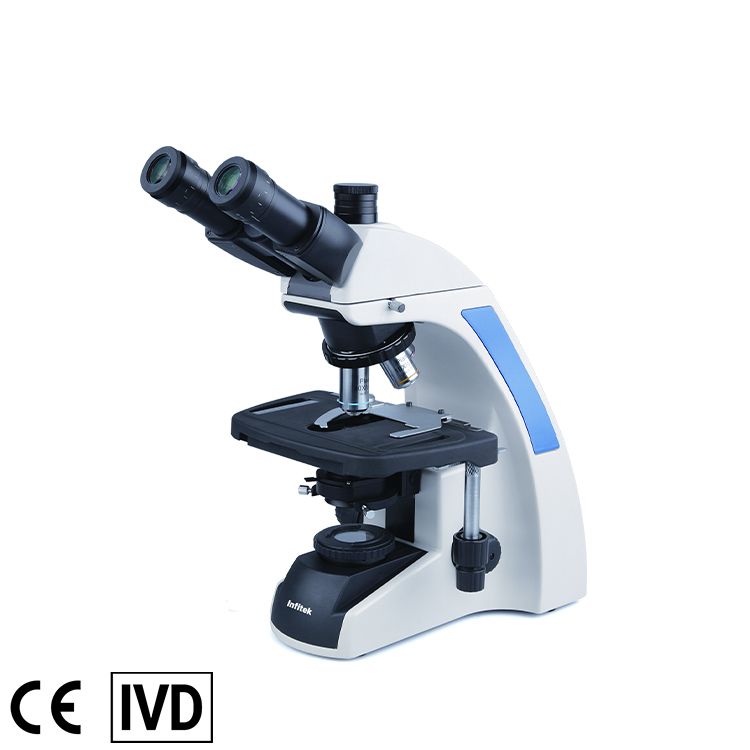

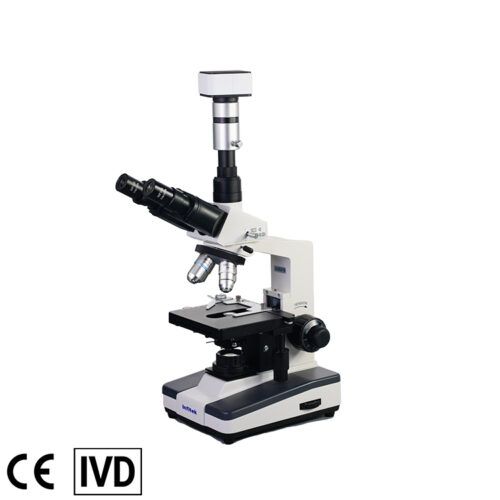

Biological Microscope, MSC-B203T

  1. Optics: Infinity Optical System
  2. Viewing Head: Seidentopf head,inclined at 30°,360° rotatable
  3. Optical Coating: Transmittance ≥ 95%
  4. Display or camera can be added

Share the product

Description

Specifications

Model MSC-B203T
Optics Infinity Optical System
Observation Tubes Seidentopf  binocularhead/Seidentopf  trinocularhead,  50-75mm
Viewing Head Seidentopf head,inclined at 30°,360° rotatable
Optical Coating Transmittance ≥ 95%
Eyepiece Wide field eyepiece WF10×22mm
Objective Infinite plan achromatic objective: 4X, 10X, *20X, 40X, 100X
Flour semi-apo  objective: 4X, 10X, 20X, 40X, 100X
Infinite plan phase objective: Ph10X, 20X, 40X, 100X
Nosepiece Quadruple nosepiece / *Quintuple nosepiece
Stage Double layers mechanical stage 210×150mm / 75×50mm
Condenser Abbe condenser N.A.1.25 with iris diaphragm & filter
Focusing Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 24mm
Illumination LED illumination, brightness adjustable
Electricity 100-240V AC,50/60Hz
Package Dimension (W*D*H) (mm) 590*350*360
Gross Weight (Kg) 9
*Optional Phase contrast kit;Drak field attachment; Microscope camera (Standard imaging software) / Win 10 Pad / Digital display
