- Opening: 480mm
- Inflow Air Velocity: 0.53±0.025m/s
- Down flow Air Velocity: 0.33±0.025m/s

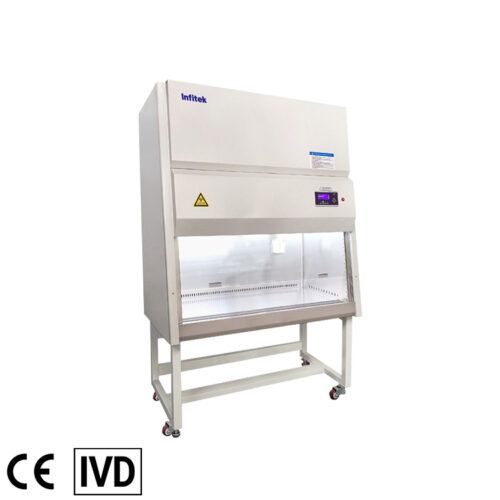

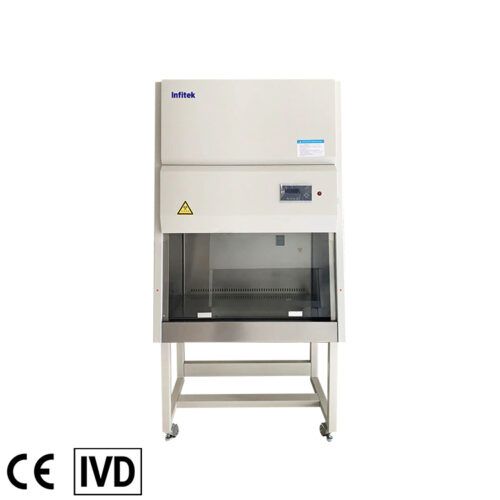

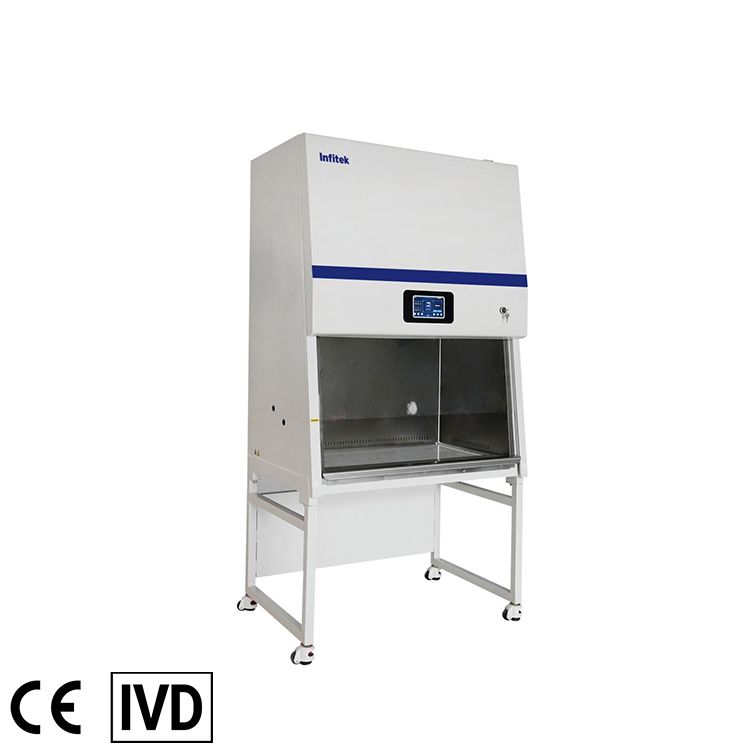

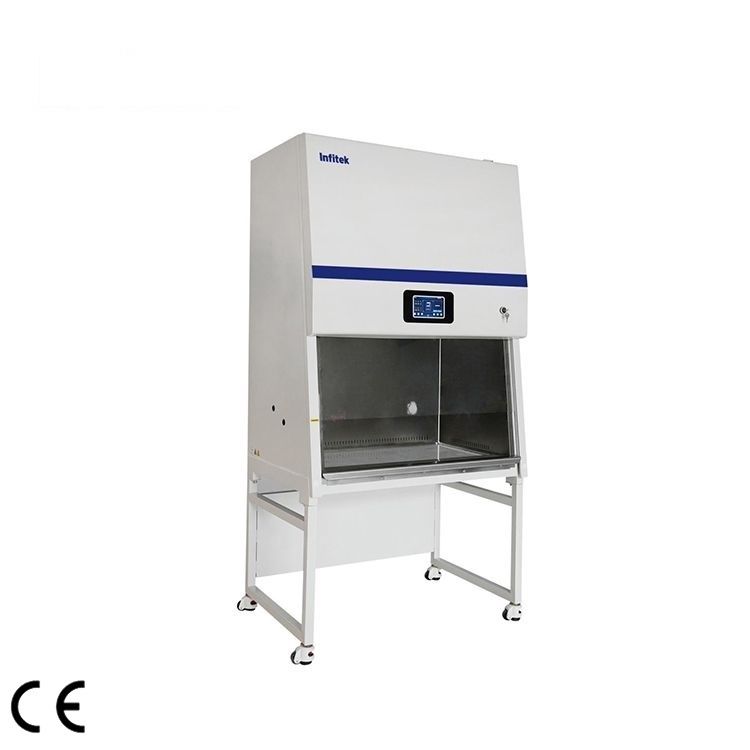

Class II Type A2 Biological Safety Cabinets, BSC-IIA2 Series
Description
Biological safety cabinet is necessary equipment in the laboratory in the search of microbiology, biomedical, DNA recombinant, animal experiment and biological products, especially in the occasion that operator need to adopt protective measure, such us medical and health, pharmacy, medical research.
- Color key display: large screen, more clear and dynamic display of various values of the safety cabinet,and has the function of appointment timing.
- With power-off memory function, the state before power-off will be restored after power-on, and there will be visual prompts and alarms.
- The integrated design of the operation area makes it easy to disassemble and clean.
- The cabinet is separated from the base.The height of the base can be customized.
- Interlocking function: UV lamp and front window; UV lamp and fan, LED lamp, fan and front window.
- It has the function of appointment timing,which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fans and sockets.
- The front window closes the double trigger signal, so that the sterilization and disinfection function of the ultraviolet lamp is normally turned on.
- The front window glass has a one-key lift function.
- The cabinet is designed with a 7° inclination angle,which is in line with ergonomic principles,with a larger viewing angle,convenient operation and more humanization.
- The one-piece hand rest has a large flat surface,which has a larger contact area with the arm and is more comfortable.
| Model | BSC-IIA2-1100 | BSC-IIA2-1300 | BSC-IIA2-1500 | BSC-IIA2-1800 |
| External Dimensions
(W*D*H)(mm) |
1100*760*2200 | 1300*760*2200 | 1500*760*2200 | 1800*760*2200 |
| Internal Dimensions
(W*D*H)(mm) |
940*600*660 | 1150*600*660 | 1350*600*660 | 1625*600*660 |
| Tested Opening | Safety height 200mm | |||
| Max. Opening | 480mm | |||
| Inflow Air Velocity | 0.53±0.025m/s | |||
| Down flow Air Velocity | 0.33±0.025m/s | |||
| ULPA Filter | 2pcs, 99.9995% efficiency at 0.12μm, filter life indicator | |||
| Front Window | Motorized, 6mm two-layer laminated toughened glass, Anti UV | |||
| Sound Emission | ≤65dB | |||
| UV Lamp | 30W*1 | 30W*1 | 40W*1 | 40W*1 |
| LED Lamp | 12W*2 | 14W*2 | 16W*2 | 16W*2 |
| Illumination | ≥1000Lux | |||
| Consumption | 600W | 800W | 1300W | 1300W |
| Waterproof Socket | Total load of two sockets:500W | |||
| Display | Color Touch Screen | |||
| Control System | Microprocessor | |||
| Airflow System | 70% air recirculation, 30% air exhaust | |||
| Visual and Audio Alarm | Abnormal airflow velocity,filter replacement,front window at unsafe height,high filter pressure alarm,abnormal power failure | |||
| Material | Work Zone: 304 stainless steel Main Body:Cold-rolled steel with anti-bacteria powder coating |
|||
| Work Surface Height | 770mm (Can be customized) | |||
| Caster | Footmaster caster | |||
| Electricity | AC 220V 50/60Hz; 110V/60Hz | |||
| Standard Accessories | LED lamp*2pcs, UV lamp*2pcs, Base stand*1pc, Foot switch*1pc, Drain valve*1pc,
Water-proof socket*2pcs |
|||
| Optional Accessories | Water and gas tap | |||
| N.W/G.W(kg) | 220/310 | 255/360 | 285/400 | 345/470 |
| Package Dimension (W*D*H) (mm) | 1250*1080*1870 | 1450*1080*1870 | 1650*1080*1870 | 1950*1080*1870 |
