- Shaking Speed (rpm): 20-300
- Speed accuracy (rpm): ±1
- Swing amplitude(mm): Φ26
- Temperature Range(℃): RT+5～60
- Temperature Accuracy (℃): ±0.1

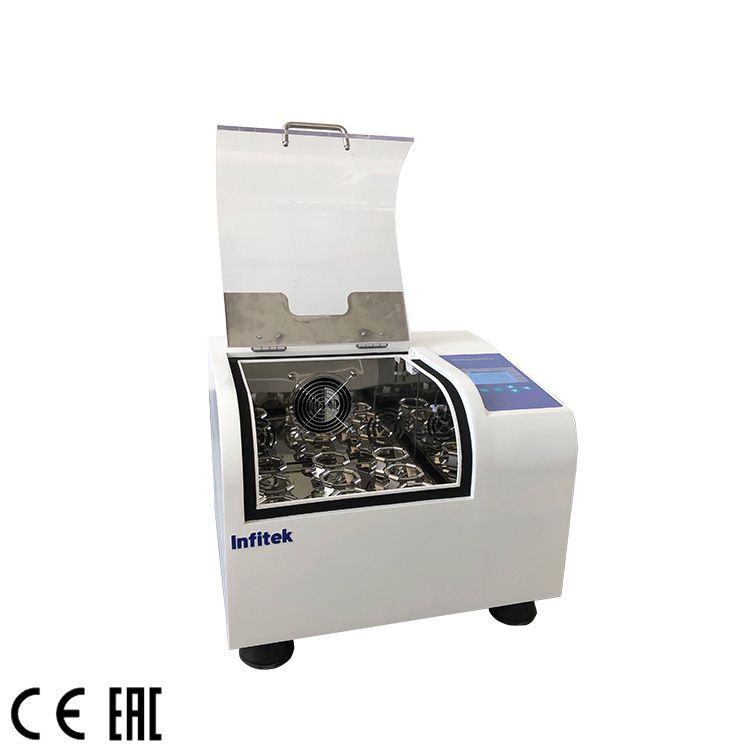

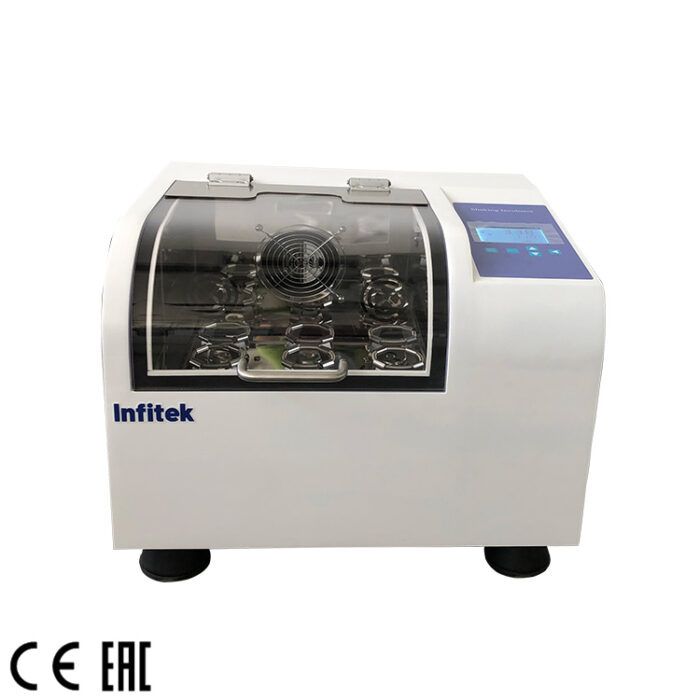

Constant Temperature Shaking Incubator(Benchtop), ICB-S20,ICB-S50
Description
Features：
1.Integrated with incubator and shaker to save space and cost.
2.ABS shell, polished stainless steel chamber.
3.Large LCD screen to display temperature and shaking speed.
4.With operation data memory function to eliminate faulty operation.
5.Non-volatile memory saves settings during a power outage and automatically restarts the unit as originally programmed after power is restored.
6.Auto-stop operation when door is opened. Strong air spring rod with easy opening and closing.
7.Brushless DC motor, more stable and reliable.
8.Equipped with leakage protection.
Specifications
| Model | ICB-S20 | ICB-S50 | |
| Capacity(L) | 18 | 48 | |
| Circulation | Forced convection | Forced convection | |
| Shake Mode | Convolution | Convolution | |
| Orbit Diameter(mm) | Φ26 | Φ26 | |
| Cyclotron Frequency | Range (rpm/min) | 0(to do static culture),20~300 | |
| Resolution (rpm) | ±1 | ±1 | |
| Temperature | Range (℃) | RT+5~60 | RT+5~60 |
| Fluctuation (℃) | ≤0.1(37℃) | ≤0.1(37℃) | |
| Resolution (℃) | ± 0.1 | ± 0.1 | |
| Uniformity (℃) | ± 1(37℃) | ± 1(37℃) | |
| Dimension(W*D*H) | External (mm) | 440*410*390 | 600*580*510 |
| Internal(mm) | 320*295*190 | 440*405*270 | |
| Flask Clamp | Max. Capacity | 50ml*12 or | 50ml*20 or |
| 100ml*9 or | 100ml*9 or | ||
| 250ml*6 | 250ml*12 or 500ml*9or1000ml*4 | ||
| Standard Capacity | 100ml*9 | 50ml*4 | |
| 100ml*4 | |||
| 250ml*3 | |||
| 500ml*3 | |||
| Controller | PID Microcomputer | PID Microcomputer | |
| Control Mode | Fixed value mode , static mode | Fixed value mode , static mode | |
| Display | Large high efinition LCD | Large high efinition LCD | |
| Timer | 1~9999min (Or continuous operation) | 1~9999min (Or continuous operation) | |
| Refrigerant | / | / | |
| Defrosting Mode | / | / | |
| Safety Device | Self-diagnosis ; visible& audible over temperaure ,abnormal status alarm , leakage protector | Self-diagnosis ; visible& audible over temperaure ,abnormal status alarm , leakage protector | |
| Electricity | Voltage/Frequency(V/Hz) | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz |
| Consumption (W) | 220 | 320 | |
| N.W./G.W. (kg) | 31/41 | 72/88 | |
| Package Dimension(W*D*H) (mm) | 580*530*540 | 700*730*700 | |
| Optional | Various flask clamps, | Various flask clamps, | |
| universal spring clamp | universal spring clamp | ||
