Cooling Incubator, ICB-BZ Series

  1. Capacity: 70L, 100L, 150L, 250L, 350L, 450L
  2. Temperature range: 0~60 ℃
  3. Test hole:Optional φ25, 50, 80mm
  4. Safety device: Leakage protector/Over- temperature alarm

Share the product

Description

Applications
The Cooling Incubator is applicable to scientific research institutes, colleges and production departments engaged in environmental protection, epidemic prevention, drug test, livestock and aquatic products. It’s a dedicated thermostatic equipment for water analysis and measure, culture and conservation of bacteria, mucedine and microorganism, plant cultivation and breeding experiment.

Features
Energy-saving
Adopts new synthetic silicone sealing, better sealing effect, preventing heat loss effectively.
Automatically adjust the control parameters according to the ambient temperature and load to achieve the optimal heating method and reduce energy consumption.
High efficiency and energy saving compressor, stable temperature control and low power consumption.

Intelligent control
Large high efinition LCD display,with intelligent microcomputer control, parameter real-time display.
Menu-type operation interface, simple and convenient, can quickly set temperature and time parameters.

Internal circulation system
Back suction and bottom forced convection system.
Adopts high-quality fan and large impeller fan, the machine has higher ventilation efficiency and better temperature uniformity.
The shelf is laser-hollowed out with round holes for better ventilation and better temperature uniformity.

Dedicated sheet metal processing
The shelf can be disassembled and can be freely adjusted up and down, with a minimum spacing of 30mm.
The inner chamber is made of high-quality brushed stainless steel, with strong corrosion resistance.

Humanized design
Built-in observation window to make the objects in the chamber clear at a glance.
Safety
Equipped with leakage protection device to ensure the safety of operators and other equipment in the laboratory.
Self-diagnosis function: display fault information, which is convenient for judging the fault point.

Optional
Test hole, internal socket, Digital independent temperature limiter
, Programable temperature controller (Optional USB, RS485/232, and built-in printer), Spare shelf.

Specifications

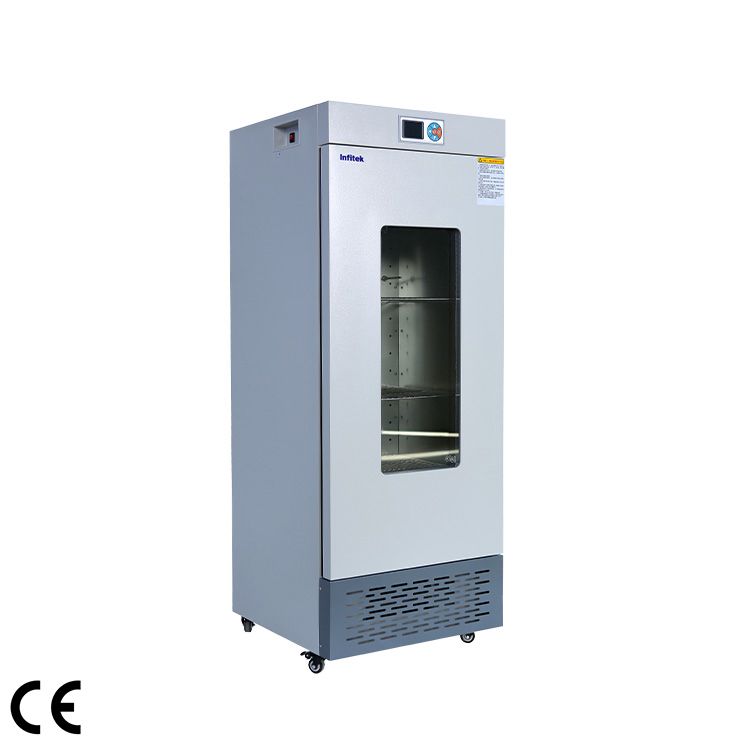

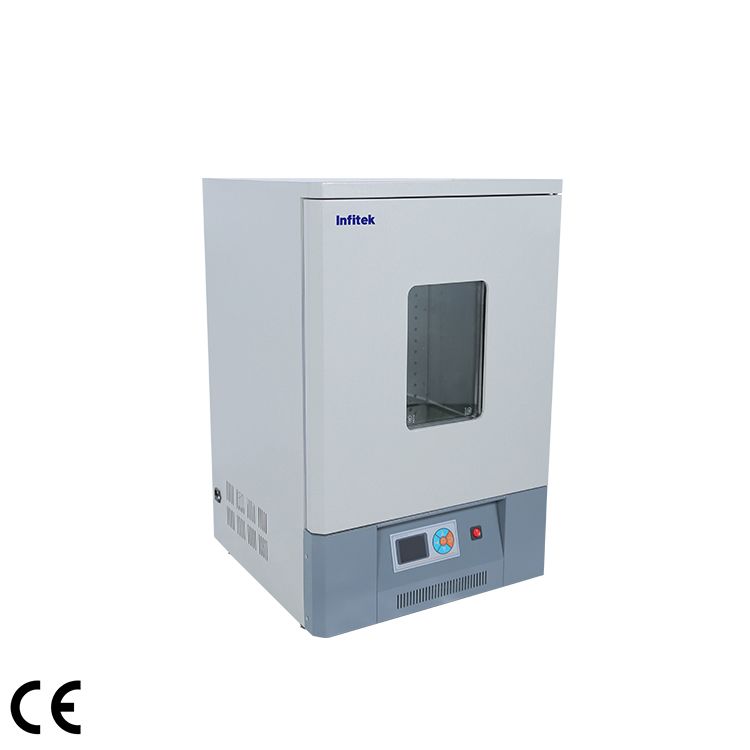

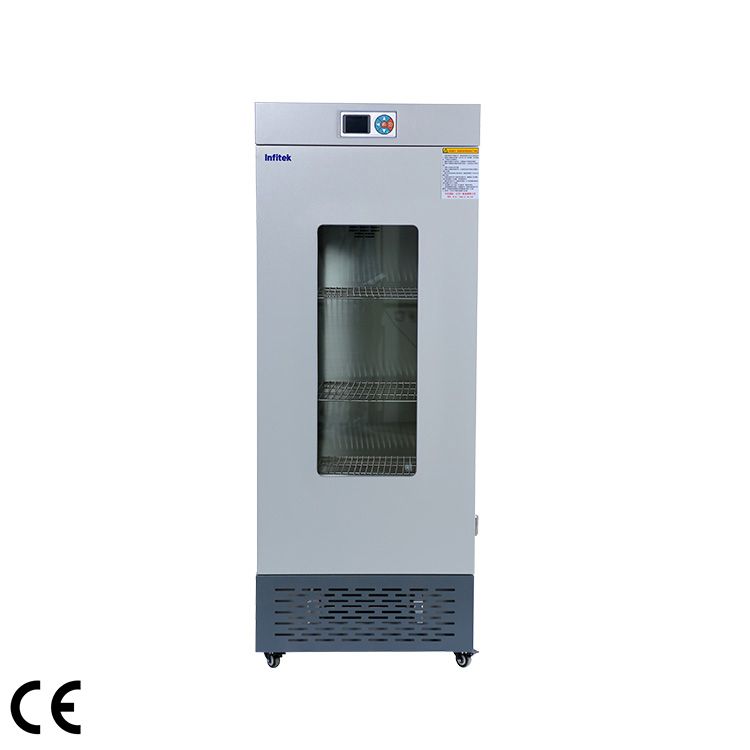

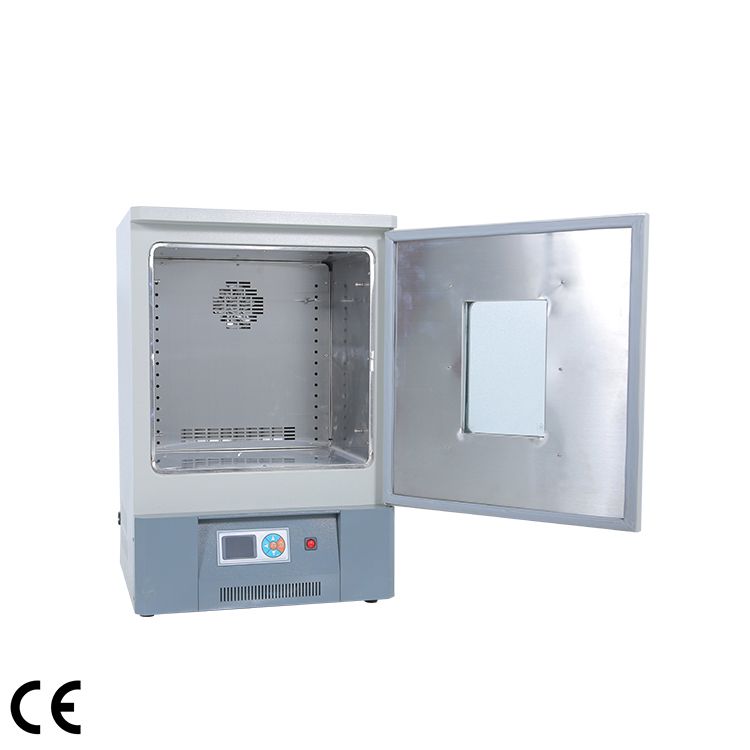

Cooling Incubator
Model ICB-B70Z ICB-B100Z ICB-B150Z ICB-B250Z ICB-B350Z ICB-B450Z
Capacity(L) 70 100 150 250 350 450
Circulation Mode Forced  convection
Dimension(W*D*H) Internal (mm) 450*350*450 510*390*510 550*390*800 560*420*1050 560*530*1200 700*530*1210
External (mm) 560*555*885 620*590*990 600*630*1460 660*660*1700 670*730*1880 810*790*1890
Temperature Range (℃) 0~60
Fluctuation (℃) ±0.5
Resolution (℃) 0.1
Uniformity (℃) ±1
Sensor PT100
Controller PID
Display High efinition LCD
Timer 1~9999min
Material Internal Stainless steel
External Cold rolled steel electrostatic spraying exterior
Shelves 2 3 4
Test Hole(Optional)  Φ25,50,80,100mm
Refrigerant R134a (CFC free)
Safety Device Leakage protector ,Audible alarm
Electricity Voltage/Frequency AC 220/110V, 50/60Hz
Consumption (W) 660 680 900 1000 1100 1600
N.W./G.W. (kg) 55 / 70 55 / 70 73 / 115 98 / 140 125 / 170 158 / 200
Shipping Dimension (W*D*H) (mm) 720*650*1050 700*730*1140 730*690*1610 800*760*1930 800*850*1900 900*1150*2080
Optional Test hole, internal socket, Digital independent temperature limiter
, Programable temperature controller (Optional USB, RS485/232 and  built-in printer), Spare shelf
