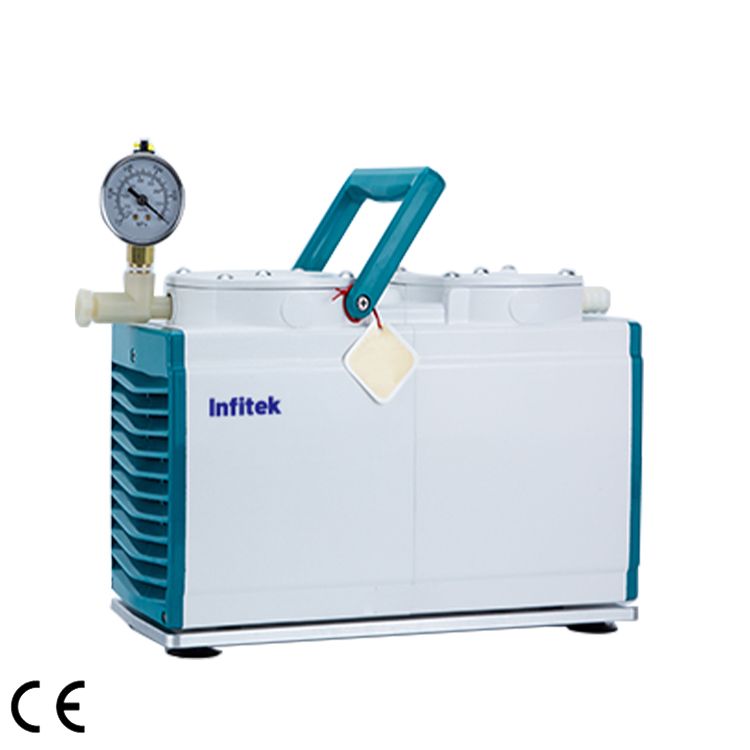

Diaphragm Vacuum Pump, VACP-D52/D102

  1. Pumping Speed: 30 L/Min, 60 L/Min
  2. Ultimate Vacuum: 50 mbar, 200 mbar
  3. Pump Head: 2
  4. Air Inlet/ Outlet: φ6(mm)
  5. Positive-negative pressure dual purpose

Share the product



  1. There is no need for any working medium (no oil) and no pollution. The air exchange chamber of the machine is equipped with filter materials to ensure the purity of the air.
  2. Adopt new technology and new materials in the production process. It is easy to move and work smoothly, thus ensuring an ideal vacuum degree and a high air flow rate.
  3. The special electricitymachineis provided by the export motor manufacturer ODM. Reasonable rotation design, equipped with an overheating power-off protector, will automatically power off when the pump body temperature reaches 130°C, and protect the motor from damage during long-term operation.
  4. Adoptfrictionless film movement, no heat generation, no friction loss. The diaphragm is made of imported rubber, which is corrosion resistant and has a long service life.
  5. The machine body is designed with an automatic cooling and exhaust system, which can ensure continuous operation for 24 hours.
  6. The pressure adjustable design can meet the vacuum degree and gas flow rate within a certain range.
  7. The bearing adopts imported classic bearings, with stable operation, low noise and high working efficiency.
  8. The parts of the anti-corrosion pump in contact with gas are treated with Teflon surface treatment, which has complete resistance to chemical corrosion.
  9. Small size, light weight, easy to move, saving laboratory space, convenient for repair and maintenance.


Vacuum filtration, Vacuum distillation, Vacuum adsorption, Solvent filtration, Solid phase extraction, Degassing, Used for compression and air conversion gas


Model VACP-D52 VACP-D102
Pumping Speed (L/Min) 30 60
Ultimate Vacuum 50mbar 200mbar
Voltage 220Vac,50Hz 220Vac,50Hz
Power 160W 160W
Positive Pressure ≥30Psi
Air Inlet (mm) φ6 φ6
Air Outlet (mm) Muffler φ6
Operating Ambient Temperature(°C) 7-40 7-40
Pump Head 2 2
Pump body Temperature(°C) <55 <55
Dimension(L×W×H) (mm) 350x130x220 310x200x210
Weight(Kg) 10 10
Diaphragm Imported Rubber Imported Rubber
Valve Plate Imported Rubber Imported Rubber
Noise(BD) <60 <60
Note Positive-negative pressure dual purpose
Optional accessory Retention bottle
