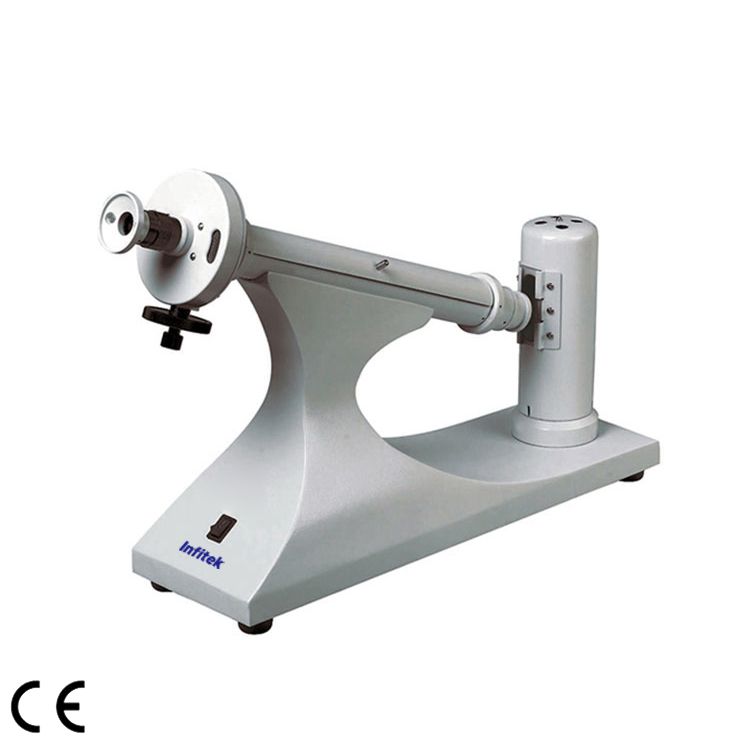

Disc Polarimeter, Manual, POL-DISC4II

  • Division Value: 1°
  • Vernier: 0.05°
  • Measurement range: ±180°
  • Test Tube: 100mm/200mm

Share the product

Description

Features

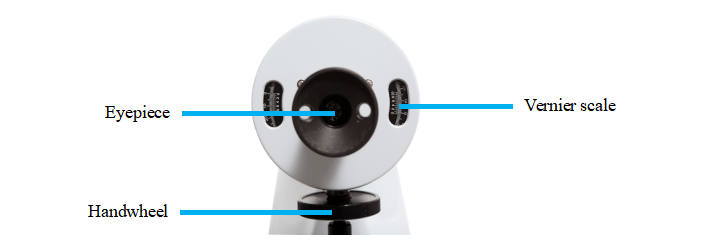

  • Visual aim
  • Manual measure
  • Easy to operate

Specifications

Parameters/Model POL-DISC4II
Measurement range ±180°
Light source Sodium Lamp
Division Value
Dial Venire Value in Reading 0.05°
Magnifying Factor of the Magnifying Glass 4X
Wavelength 589nm
Test Tube 100mm/200mm
G.W.(kg) 5.8 kg
External Dimensions(W*D*H)(mm) 435*135*320
Package Dimension (W*D*H)(mm) 580*230*420



Polarimeter Accessories

Micro Tube

With sample loading capacity less than 0.8ml and length of 50mm, suitable for automatic polarimeter.

Thermostatic Tube

Dedicated to polarimeters that have temperature control function.

For the length of about 100mm, the sample loading is 2.5ml;

And the non-corrosive type is optional to purchase.

Standard Quartz Tube

The only calibration equipment for standard polarimeter and optical Brix; with stable performance, leas influence by the environment, and easy-to use features.

The reading of quartz tube includes ±1°, ±5°, ±7°, ±34°, ±68°, for customers to choose.
