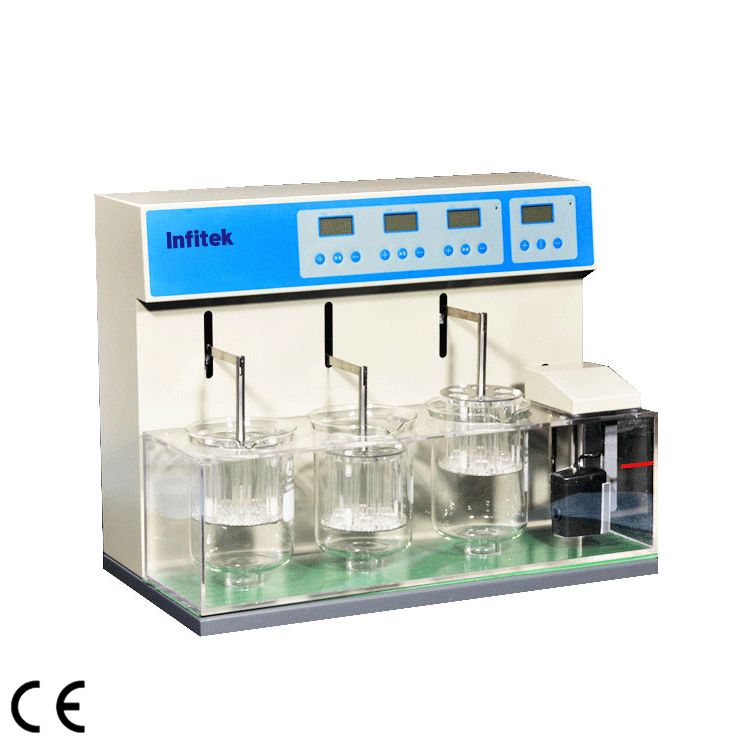

Disintegration apparatus, DITT-3

  • Temperature prefabrication range room temperature: ~50℃
  • Display resolution :0.1℃.
  • Number of lifting baskets:  3 sets

Share the product


Disintegration time limit tester is a drug test instrument to test the disintegration time limit of tablets, capsules and pills in accordance with Chinese Pharmacopoeia.

  • Three-basket working position system measures disintegration time limit.
  • 3 sets of baskets, which can realize 3-way independent operation to be controlled independently.
  • Electronic temperature sensor can display and monitor various points in water bath case and the temperature in the beaker. High-precision digital electronic sensor is adopted to ensure the high precision and high accuracy of water bath temperature without the need for calibration.
  • The instrument controls the bath temperature at 37.0℃ automatically (prescribed by Pharmacopeia). It can also reset the preset temperature again at any time.
  • The instrument sets the lifting time of baskets to be 15min automatically, which can also be reset at any time.
  • It adopts the computer control technology which is centered on SCM to control two performance parameters including bath temperature and working time intelligently.
  • The instrument can monitor bath temperature, give over-temperature alarm and protect itself automatically.


Model DITT-3
Temperature prefabrication range  room temperature:~50℃, display resolution :0.1℃.
Temperature control accuracy  ±0.3℃
Timing prefabrication range  1min~999min
Time control accuracy  ±0.5min
Work noise  <60db
Number of lifting baskets  3 sets
Lifting frequency of basket  (30~32) times/min.
Lifting distance of basket  (55±1) mm
Minimum spacing from screen to beaker bottom  25mm±2mm
Mesh size  standard configuration 2mm, (optional for 0.425mm and 1mm bore diameters)
Power supply 220V50Hz
Total power 600W
Overall dimensions L*W*H  540mm*320mm*440mm
