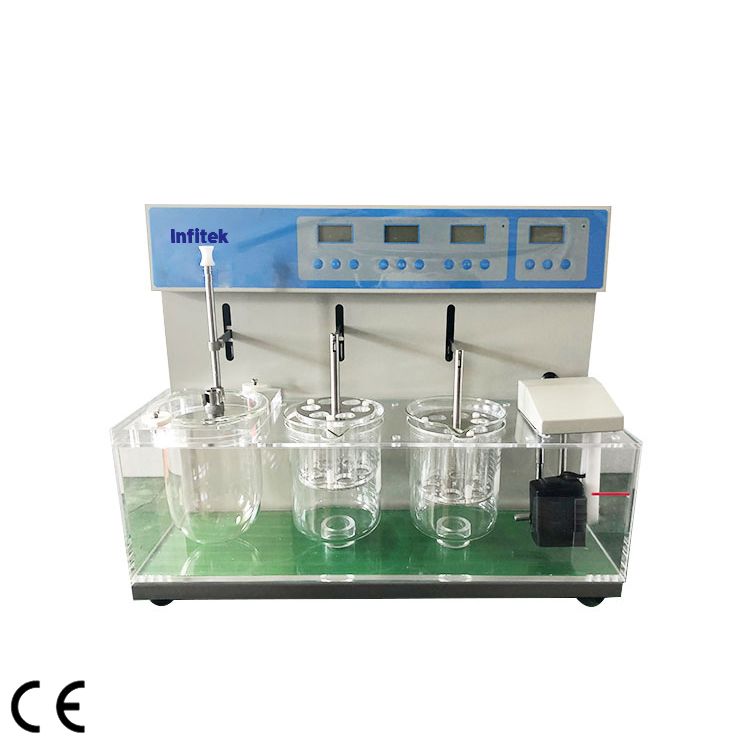

Disintegration tester, Multifunctional, DITT-M3

  • Temperature prefabrication range:  R.T.~50℃, display resolution 0.1℃.
  • Temperature control accuracy:  ±0.3℃
  • Timing prefabrication range: 1min~999min

Share the product


The Disintegration apparatus detects the disintegration time limit of tablets, capsules, pills and oral disintegration reagents according to the 2020 edition of the Chinese Pharmacopoeia.

  1. The 2+1 design method is adopted, and it can meet the disintegration requirements of the orally disintegrating reagents in the 2020 edition of the Pharmacopoeia, extensive use.
  2. 3 sets of hanging baskets, and the 3 routes operate independently, which can be controlled separately.
  3. The electronic temperature sensor can display and monitor the temperature at various points in the water bath and in the beaker. The use of high-precision digital electronic sensors ensures the high precision and accuracy of the water bath temperature without calibration.
  4. The temperature of the water bath is automatically controlled by the instrument to be 37.0℃ (prescribed in the Pharmacopoeia). The preset temperature can be reset at any time in both directions.
  5. The instrument automatically sets the lifting and lowering time of the hanging basket to 15 minutes, and the time can also be reset arbitrarily in both directions.
  6. Adopt the computer control technology with single-chip microcomputer as the core, and intelligently control the two performance parameters of water bath temperature and working time.
  7. Temperature and time display adopts the latest LCD module.
  8. Water bath temperature overheating alarm and automatic protectionfunction.



Model DITT-M3
Temperature prefabrication range  R.T.~50℃, display resolution 0.1℃.
Temperature control accuracy  ±0.3℃
Timing prefabrication range  1min~999min
Time control accuracy  ±0.5min
Working noise  <60db
Lifting baskets number 2 sets of ordinary disintegration baskets, 1 set of oral disintegration special baskets
Lifting frequency of the hanging basket  30~32times/min
Lifting distance of hanging basket  55±1mm, 10±1mm
Screen aperture  standard 2mm, (0.425mm, 1mm apertures optional) for ordinary hanging baskets, standard 710μm for oral disintegration hanging baskets
Electricity source  220V50Hz
Power of the whole machine  600W
Dimensions(L×W×H)  540mm*320mm*440mm
