- Remote monitoring system
- Anti-corrosive and anti-rust performance
- 99.99% high eficienty filtering
- Advanced VOC Detector port detects pollution.in time, with special alarm system

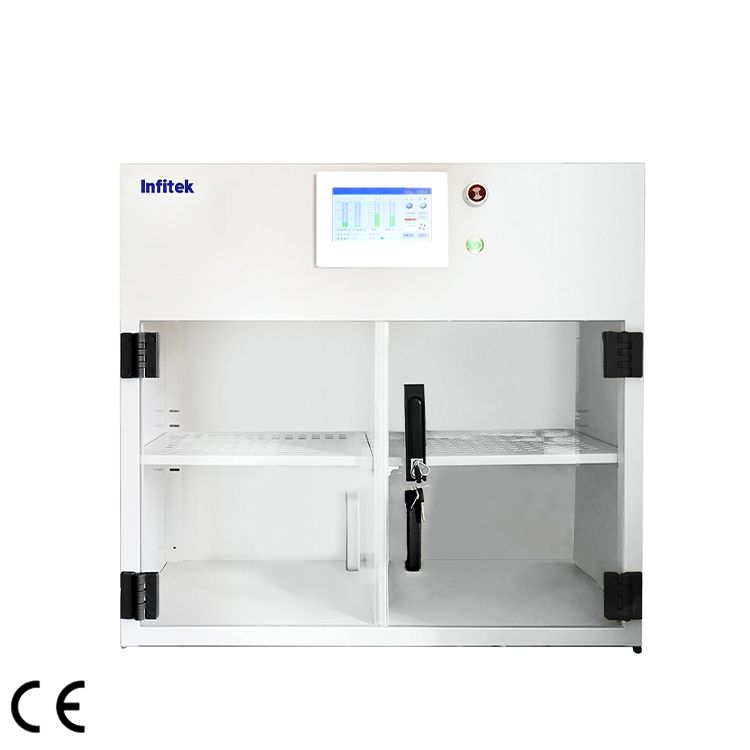

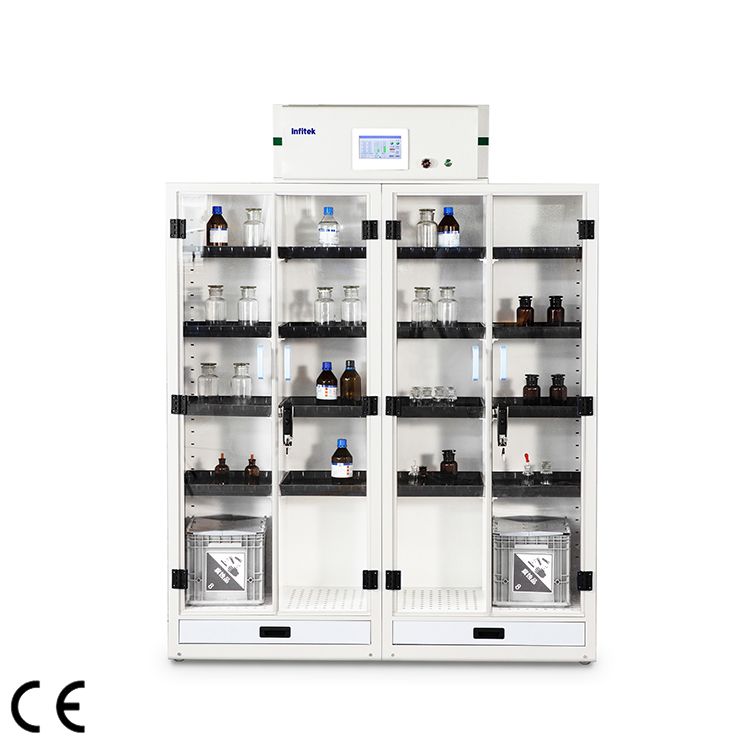

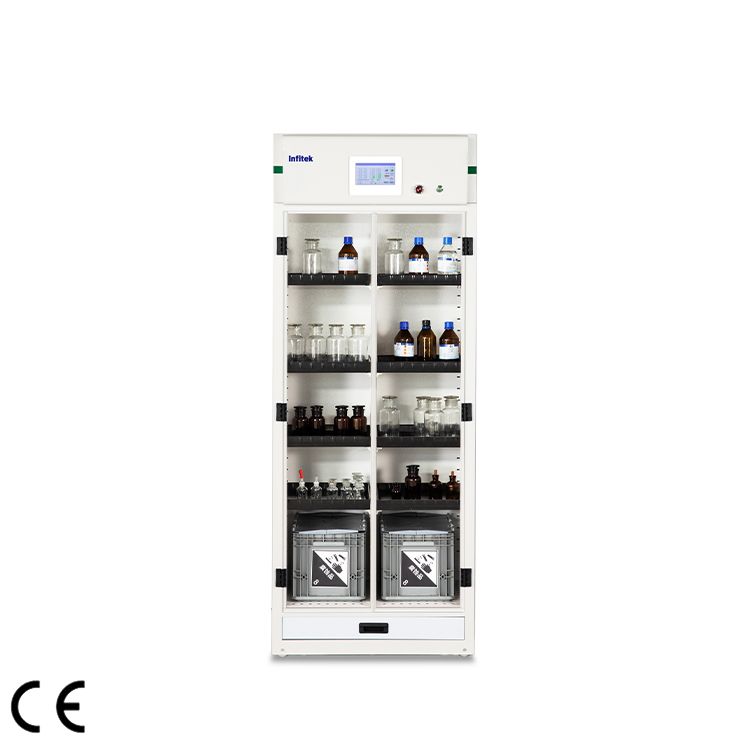

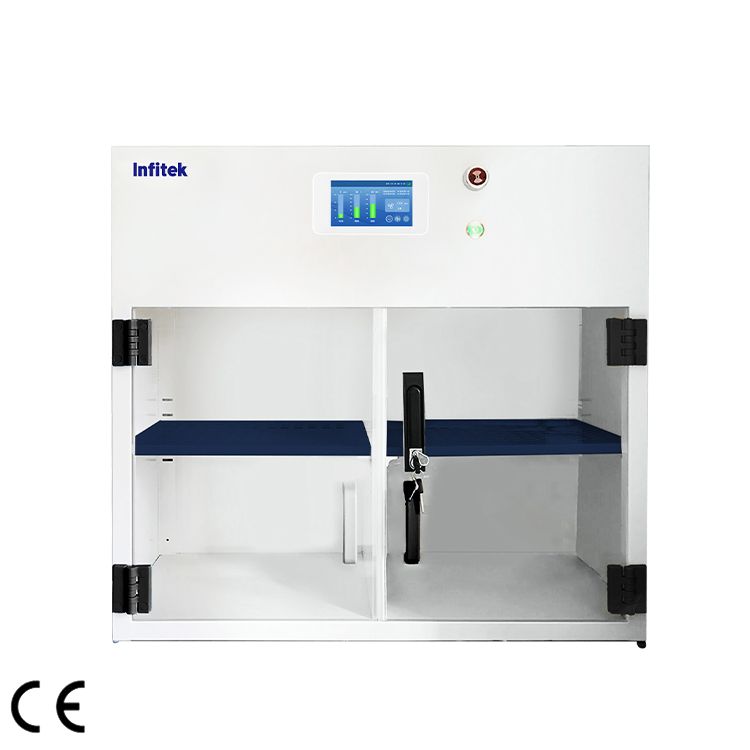

Filtered Storage Cabinet, CSC-F800, F820, F1600
Description
 |
 |
 |
| CSC-F800 | CSC-F820 | CSC-F1600 |
1、Advanced VOC Detector port detects pollution.in time, with special alarm system.
2、Remote monitoring system: Users can view the device’s running status and set the parameters by WeChat Alarm information can be sent to users when Malfunction.
3、Transparent acrylic glass with good anti-corrosive performance.
4、Gray finish paint wall with epoxy powder coated, with anti-corrosive and anti-rust performance.
5、Silent turbine fan draws chemical vapors from bottles into a HEPA filte with high absorption capacity. No static, no spark and super silence motor. Various types of filters can realize 99.99% high eficienty filtering.
6、Unique designed LED touch screen control system,which combine all data in one piece computer control panel, easy to control fan speed lighting, etc. and convenient to set up and monitor all data.
7、Epoxy resin coated adjustable shelf with leaking holes. Which can be adjusted according to the size of vessel.
| Model | CSC-F800 | CSC-F1600 | CSC-F820 |
| Specification | |||
| External Dimension (H*W*D)(mm) | 2070*800*510mm | 2070*1600*510mm | 772*819*350mm |
| Internal Dimension (H*W*D)(mm) | 1604*797*475mm | 1604*1594*475mm | 520*816*338mm |
| Shelf | 8 | 16 | 2 |
| Compression of shelf | 30kg | 30kg | 30kg |
| Air Capacity(m/h) | 230m3/h | 230m3/h | 75m3/h |
| Capacity | 160 bottles(500ml ) | 320 bottles(500ml ) | 48 bottles (500ml ) |
| Noise | 40 dBA | 40 dBA | 40 dBA |
| Rated Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Electric Powder | 42w | 42w | 42w |
| Rated current | 2A | 2A | 2A |
| Configure | |||
| Filters(pcs) | 3 | 3 | 3 |
| Fans(pcs) | 1 | 1 | 1 |
| Door | Transparent door | Transparent door | Transparent door |
| Shelf | 8*movable PP pallet | 16*movable PP pallet | 2*movable PP pallet |
| Wheel | nylon wheels | nylon wheels | nylon wheels |
| Display screen | Yes | Yes | Yes |
| Power cord(pcs) | 1 | 1 | 1 |
| Control system(unit) | 1 | 1 | 1 |
| Temperature and humidity alarm system | Yes | Yes | Yes |
| VOC alarm | Yes | Yes | Yes |
| Optional parts | |||
| Light-blocking door | |||
| HCL Box | |||
| Filter | SFGL OG: Organic filter | SFGL OG: Organic filter | |
| SFGL AG: Inorganic filter | SFGL AG: Inorganic filter | ||
| SFGL FO: Formaldehyde filter | SFGL FO: Formaldehyde filter | ||
| SFGL AM: Ammonia filter | SFGL AM: Ammonia filter | ||
| SFGL H14：HEPA filter | |||
| Filter Alarm | Ammonia gas alarm | ||
| HCL alarm | |||
| Formaldehyde alarm | |||
| Category | Title | File type/size | Download |
| Brochure | Brochure – Reagent Cabinet | PDF(474 KB) | download |
