Floor Freeze Dryer, LYO60V-1/LYO80V-1 Series

  1. Final condenser temp (℃): -55 or -80
  2. Freeze drying area (m2): 0.09-0.18
  3. Material loading capacity(ml): 900-1800
  4. Ice condenser capacity (Kg/24h): 4
  5. Control System: microprocessor, touch screen

Share the product



LYO60V-1S-LYO80V-1S-freeze-dryer    LYO60V-1T-freeze-dryerLYO60V-1P--LYO80V-1P-freeze-dryerLYO60V-1PT-LYO80V-1PT-freeze-dryer

LYO60V-1S/LYO80V-1S                 LYO60V-1T/LYO80V-1T              LYO60V-1P/LYO80V-1P          LYO60V-1PT/LYO80V-1PT

Key Features:

  1. 7inches colorful touch panel can display the product sample’s temperature, Condenser temperature and vacuum etc in digital and curve.
  2. Touch panel with the design conforms to ergonomics and operate more comfortably.
  3. Compact design with a small footprint.
  4. With USB interface to export the data, convenient for user information management.
  5. Large-volume stainless steel condenserwithout coils, which can realize independent sample pre-freezing


  • High performance compressor, cascade system,high cooling efficiency and fast cooling speed.
  • Condenser and operation panel are made by stainless steel.
  • Drying chamber is transparent which is visual and safe.


  • The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples.
  • Widely used in drugs, biological products, chemical and food industries.
  • On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.


  • Optional for gas interface: it can inject inert gas.
  • Optional for Condenserelectrical heating defrost function.
  • Optional for rack heating which is help to test in production.


  • freeze dryer Accessories


Model LYO60V-1S LYO60V-1P LYO60V-1T LYO60V-1PT


Standard chamber Standard chamber with 8 port manifold


Stoppering chamber



chamber with

8 port manifold

Freeze Drying Area(m2) 0.12~0.18 0.12~0.18 0.09 0.09
Tray(Qty) 4/6(Optional)pcs 4/6(Optional)pcs 3pcs 3pcs
Tray Dimensions(Diameter*H)(mm) Φ200*20 Φ200*20 Φ200*20 Φ200*20
Height Between Trays(mm) 76/50 76/50 70(average) 70(average)
Condenser Temperature (℃) -60/-80 -60/-80 -60/-80 -60/-80
Condenser Capacity (L) 9.5 9.5 9.5 9.5
Condenser Dimensions(Diameter*H)(mm) Φ217*250 Φ217*250 Φ217*250 Φ217*250
Vacuum Degree(no-loading) (Pa) ≤5 ≤5 ≤5 ≤5
Ice Condenser Capacity (kg/24h) 4 4 4 4
Loading Capacity/ Shelf (mL) 300 300 300 300
Total Loading Capacity(mL) 1200~1800 1200~1800 900 900
Drying Chamber Dimensions(standard) Lower circle:Φ260mm;Upper circle:Φ240mm;Height:Φ450mm
Total Qty. Of Vial Φ22 260 260 195 195
Total Qty. Of Vial Φ16 480 480 360 360
Total Qty. Of Vial Φ12 920 920 690 690
Refrigerant CFC-free
Standard Accessories Vacuum pump 2L/s,8m³/h,material tray,material rack,PC cover(for all modes)

Conical-mouth flask 500mL*8 pcs,switch valve*8 pcs(only for model 1P/PT)

Optional Function&Accessories Electric defrost function,nitrogen gas filling valve,oil mist filter(for all models)

800mL wide-mouth flask(only for model 1P/PT)

Consumption 0.95kW(-60℃)/1.5kW(-80℃)
Electricity AC220V,50Hz(standard), other electricity type can be customized
External Dimensions(W*D*H)(mm) 480*610*905/1355 480*610*905/1415
Shipping Dimensions(W*D*H) Main body 730*600*1180mm
Drying chamber 410*410*640mm
Vacuum pump 220*580*370mm
Gross Weight 135kg(-60℃)/155kg(-80℃)

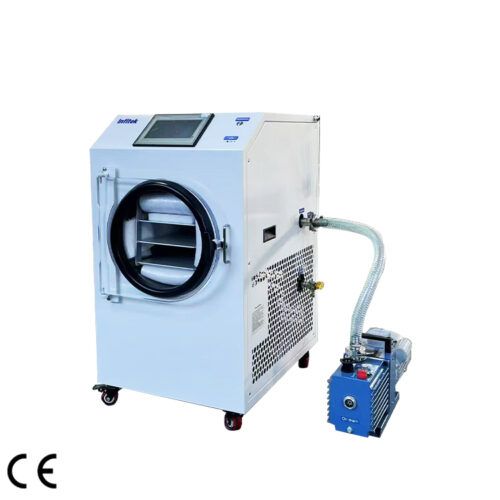

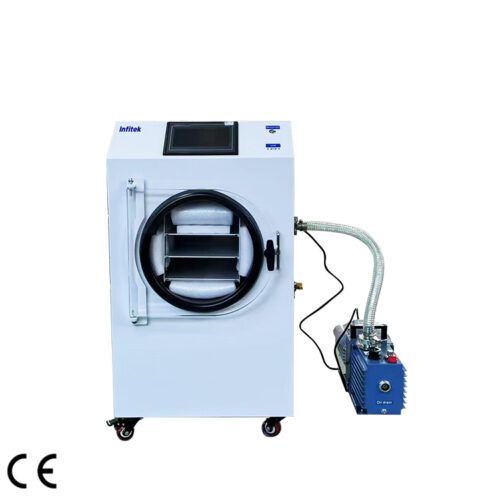

You may also like…
