- High brightness LED
- Excitation LED: 250nm ~ 600nm(LED)
- Emission wavelength accuracy: ± 1nm
- Emission wavelength reproducibility: ≤ 0.5nm

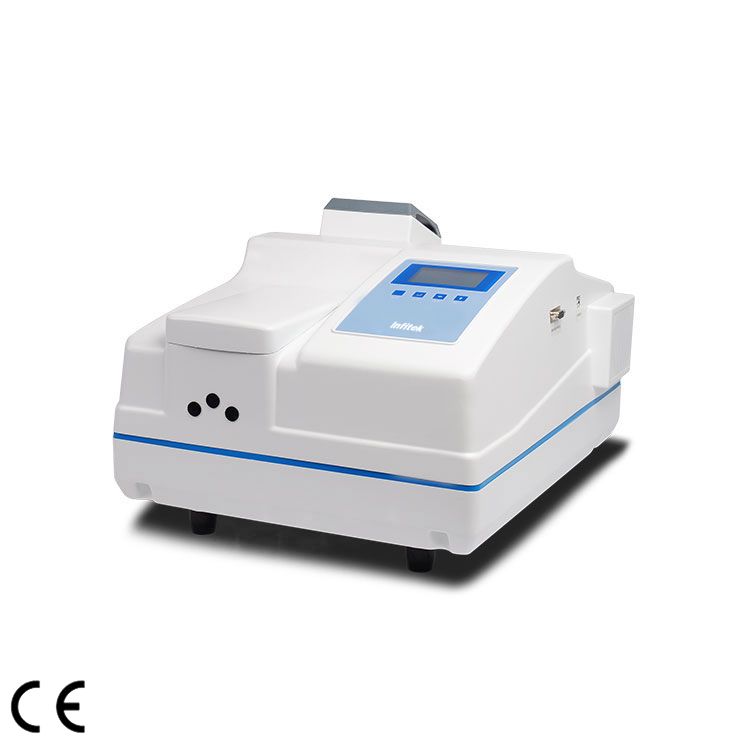

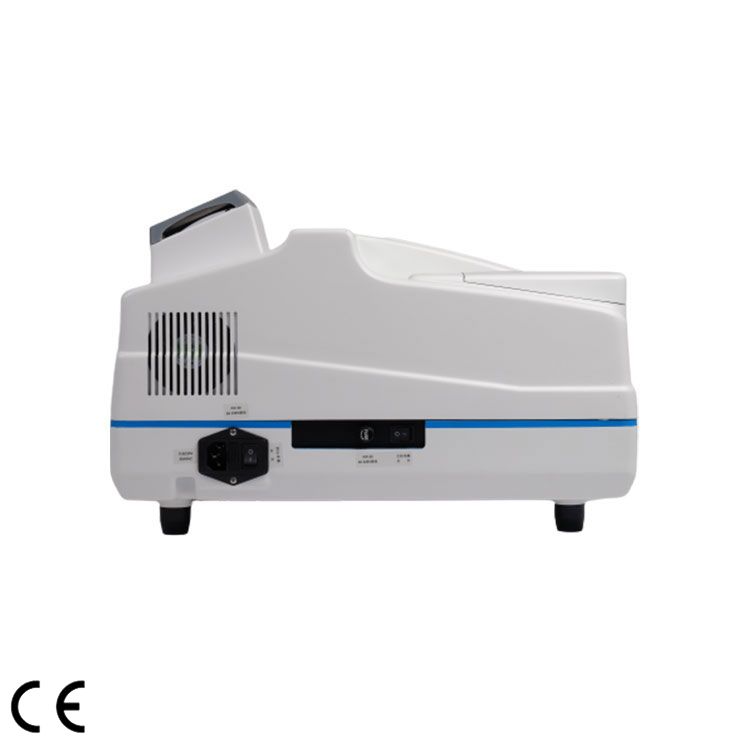

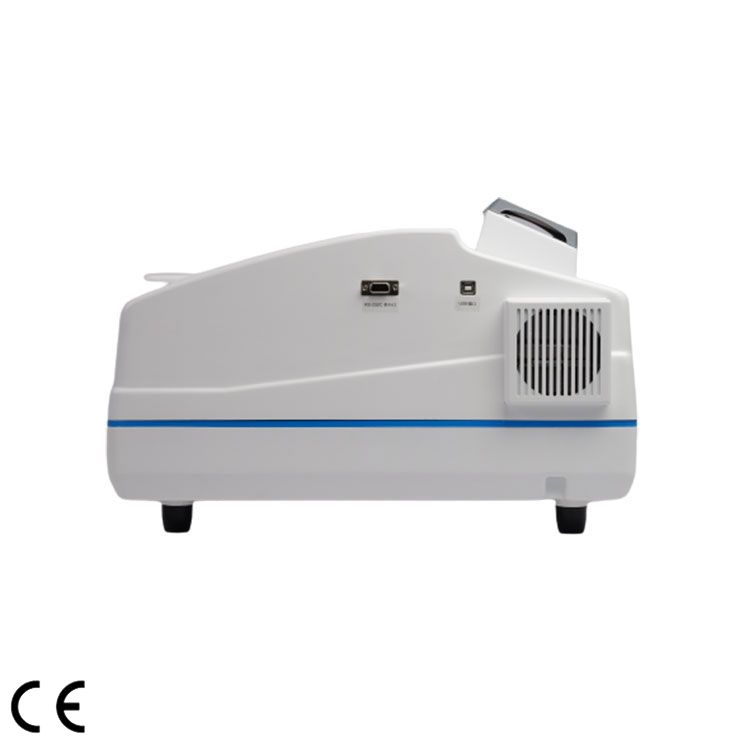

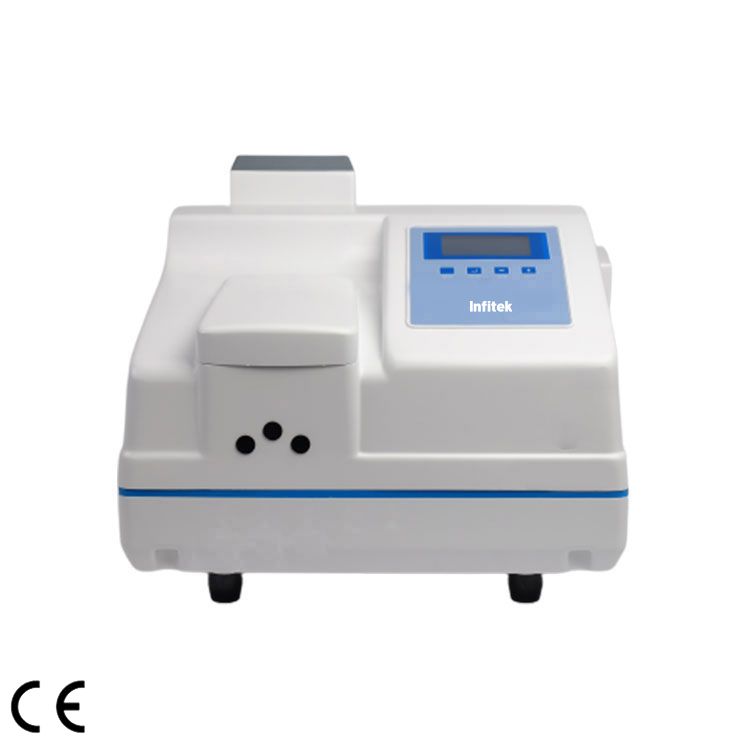

Fluorescence Spectrophotometer, SP-LF96S
Description
Fluorescence Spectrophotometer
| Model | SP-LF96S |
| Emission monochromator | C-T configuration diffraction grating monochromator |
| EX wavelength standard set | 365nm,376nm,392nm,405nm( Em200-650nm is optional) |
| Emission wavelength range | 200nm ~ 650nm |
| Emission wavelength accuracy | ± 1nm |
| Emission wavelength reproducibility | ≤ 0.5nm |
| Emission Bandwidth | 10nm |
| S∕N ratio | S/N≥90(Using 1cm quartz sample cell, measure the signal |
| noise ratio of Raman spectrum of water ) | |
| Detection limit | 1 × 10-10 g/ml quinine sulfate solution |
| Excitation light source | High brightness LED |
| Linearity | γ≥0.995 |
| Repetitive peak intensity | ≤1.5% |
| Zero drift | ≤0.3(within 10min) |
| Upper limit change of indicating value | ≤1.5% (Within 10 minutes) (displaying value≥50) |
| Power Supply | 110-240V AC.50/60Hz |
| Dimensions(mm) | 442×392×250 |
| N.W./G.W.(kg) | 10/12 |
| Category | Title | File type/size | Download |
| Brochure | Brochure-Spectrophotometer | PDF(6 MB) | download |
