- Station capacity: 14 pcs station, 1500ml/cup
- Processing capacity: 70 pcs
- Numbers of Program: 20 sets
- Drying function
- Intelligent automatic water influx/efflux/drainage system

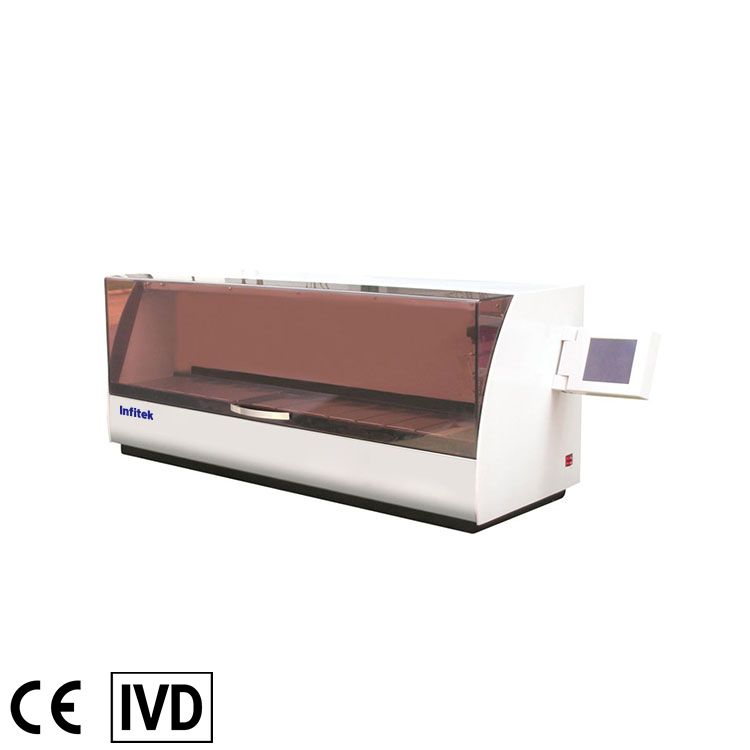

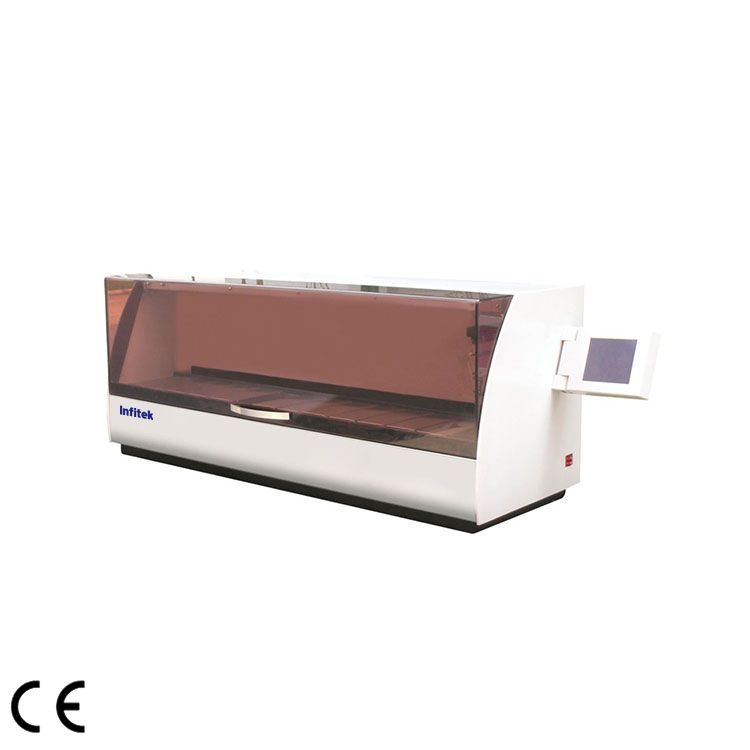

Fully Automated Tissue Slide Stainer, TSST-14
Description
- 7-inch intelligent touch LCD screen, real-time display of working status, clear display and high sensitivity.
- The running status simulation animation is synchronized with the graphic display, so the work progress is clear at a glance.
- Low noise, wear-resistant flexible transmission system using imported high-quality materials and elements to ensure reliable performance
- Intelligent control of hot air, automatic drying.
- Imported solenoid valve intelligently controls the water supply system, with fully automatic water inlet and outlet to ensure adequate cleaning.
Specifications
| Model | TSST-14 |
| Number of Processing Cups: | 14 (12 cups for reagents, the one at the 8th station for washout, and the one at the 1st station for drying) |
| Capacity of Each Cup | 1500ml |
| Each Cup Processing Time | 0s~59min59s |
| Dripping Time | 0~30s |
| Temporary Cleaning Time | 0~59s |
| Number of Programs | 20sets |
| Programmable Dipping Sequence | 1~28pcs. |
| Capacity of Staining Rack | 70pcs. |
| Electricity | AC100V~120V/AC220V~240V, 50Hz/60Hz |
| Power | 500W |
| External Dimension | 1380*420*470mm |
| Net Weight | 70kg |
| Package Dimension (W*D*H) | 1310*550*590mm |
| G.W.(kg) | 105Kg |
