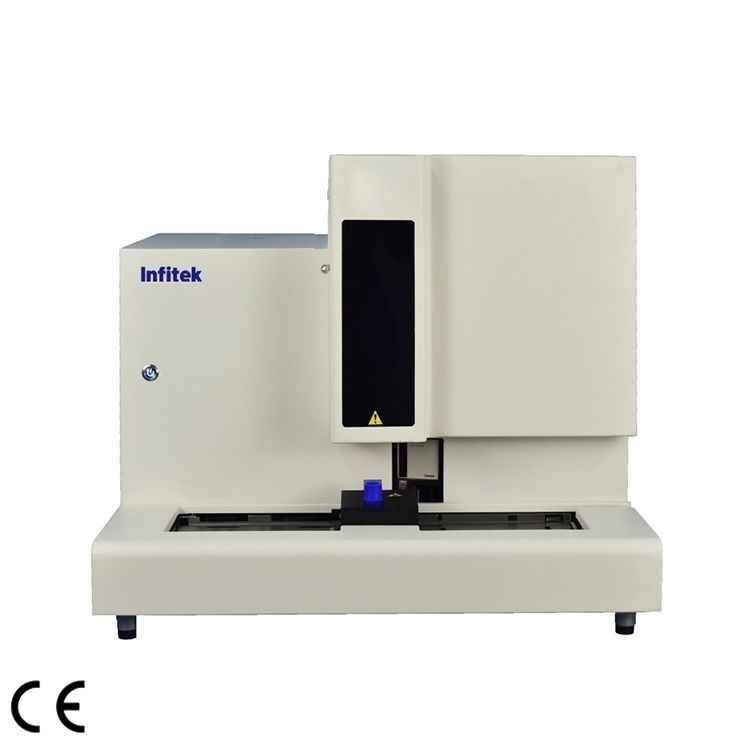

Fully Automatic Urine Sediment Analyzer, UA-S3-120

  • Test Speed:120 samples/hour
  • Test Sensitivity:5 cells/μL
  • Channel:Four channels fixed flow counting cell
  • Sample Volume:Minimum volume:3mL,Aspiration volume:1mL

Share the product



UA-S3-120 Fully Automatic Urine Sediment Analyzer can store clinical data, dry chemical index, microscopic examination results and other expansion projects.


  • 4-channel design
  • channel injection design, channel settling, cleaning and other detection functions fully guarantee the speed and efficiency of specimen detection.
  • Auto focusfunction

Automatic focus correction of the microscope ensures clear and complete sample shooting,which reduces maintenance costs.

  • Self-earning and training function

The target of misidentification of the instrument can be modified by the operator.After training, the memory can be stored and automatically modeled.


Model UA-S3-120
Test Parameters Normal RBC, Standing RBC, Dysmorpuic RBC, Normal WBC, WBCC, Pus Cell, Hyaline Cast, Granular Cast,WBC Cast ,Squamous Epithelial Cell,Normal Epithelial Cell,Sperm, Calcium Crystal, Oxalate Crystal Bacteria,Yeast, Amorphous Urates, Mucus etc.
Test Principle Flow cell digital imaging technology,medical image fusion technology,artificial intelligence identification technique
Channel Four channels fixed flow counting cell
Sample Volume Minimum volume:3mL,Aspiration volume:1mL
Test Speed 120 samples/hour
Aspiration Volume 1ml
Test Sensitivity 5 cells/μL
Accuracy >95%
Repeatability CV<10%
Cross Contamination Rate <0.05%
Data Storage 200,000
Report Mode International general quantitative unit; unit /μL&HPF, complete and illustrated report, with urine chemistry test results and urine sediment test results
Environment Temperature:15°C~35°C

Optimum temperature: 20°C~25°C

Relative humidity:≤75%

Electricity AC220V±10% , 50Hz
Dimensions(L*W*H) 660mm*440mm*570mm
N.W./G.W. 37kg/95kg
Shipping Dimension(L*W*H) 1150*760*770mm
