- Auto calibration
- Observer Angles:2°,10°
- Integrating Sphere Size:φ40mm
- Wavelength Interval:10nm
- Wavelength Range:400-700nm

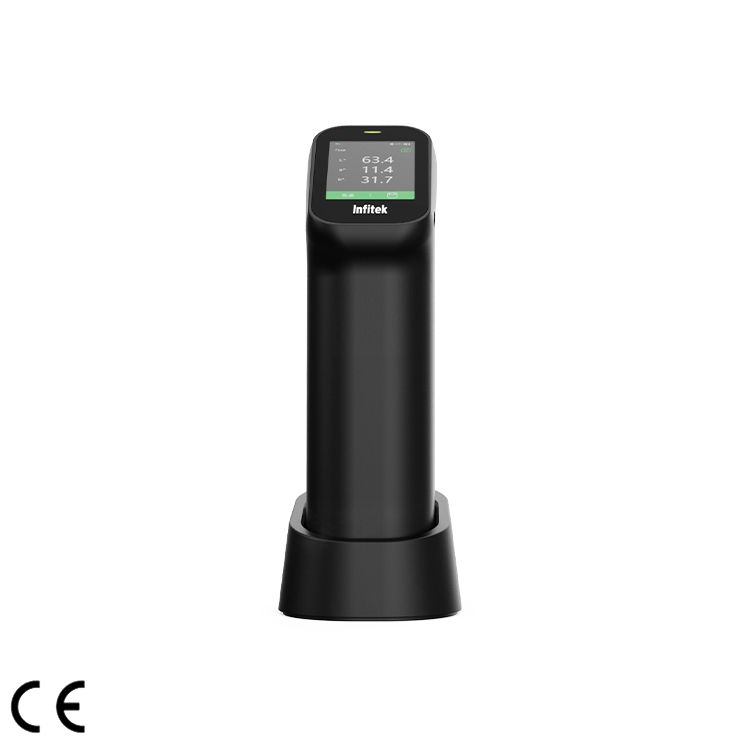

Grating Portable Spectrophotometer, SP-CLR500C
Description
Portable Grating Spectrophotometer has powerful performance configuration which makes color measurement more professional. Excellent inter-instrument error ensures consistency of the measurement data of multiple devices.
Features
- 20 kinds of color indexes and 26 kinds of illuminants
- Supports 26 kinds of illuminants such as D65/D50,etc.
- It can get the value of reflectance, CIE-Lab,CIE-LCh, whiteness, yellowness, opacity, color strength and other color indexes.
- Excellentinter-instrument error
Inter-instrument error＜0.3 ,which ensures test results consistency of multiple devices.
- Auto calibration
The auto calibration technology allows the instrument to achieve automatic calibration, which greatly improves the user experience.
- Multi-function calibration base
- The multi-function calibration base keeps the whiteboardbeing protected, combining calibration and charging functions in one.
- When instrument is placed on the base, it will be automatically charged and calibrated. It saves a lot of time for the user to charge and calibration the device.
Specifications
| Model | SP-CLR500C |
| Optical Geometry | D/8 (diffused illumination,8° viewing), SCI（specular component included） |
| Integrating Sphere Size | φ40mm |
| Light Source | Full waveband balanced LED |
| Color Space and Index | Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-
73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness （My,dM）,Color Fastness, Tint,(ASTM E313-00),Color Density CMYK(A,T,E,M), Milm, Munsell, Opacity, Color strength |
| Illuminant | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84 |
| Observer Angle | 2°,10° |
| Sensor | 256 pixel CMOS sensor |
| Calibration | Auto |
| Wavelength Interval | 10nm |
| Wavelength Range | 400-700nm |
| Measured Reflectance Range | 0-200% |
| Reflectance Resolution | 0.01% |
| Repeatability | Chromaticity value:
Max. :dE*ab< 0.1 Average :dE*ab< 0.05 Standard deviation within ΔE*ab 0.03 (When a whiteboard measures 30 times every 5 seconds) Reflectance: Standard deviation < 0.1% |
| Measuring Aperture | MAV: φ8mm/φ11mm |
| Inter-instrument Error | ΔE*ab＜0.3
（BCRA Series Ⅱ, average measurement of 12 tiles，MAV/SCI） |
| Measuring Time | About 2s |
| Battery | Rechargeable, 8000 times continuous tests, 3.7V/3000mAh |
| Screen | 2.4-inch IPS full color screen |
| Interface | USB，Bluetooth |
| Illuminant Life Span | 1 million measurements in 10 years |
| Software Support | Android, IOS, Windows |
| Camera | Without |
| External Dimension (L*W*H) | 77.8*53.2*185.7mm |
| N.W./G.W. | 0.3kg/1.5kg |
| Shipping Dimension (L*W*H) | 320*170*290mm |
