- Capacity: 30L
- Temperature range: RT+5-65℃
- Test hole:Optional φ25mm
- Safety device: Leakage protector/Over- temperature alarm

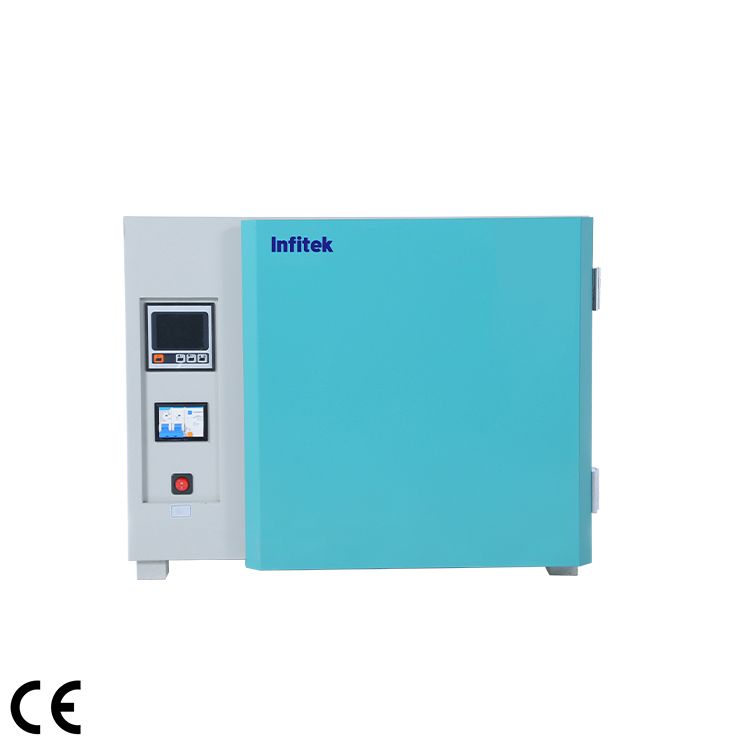

Heating Incubator, ICB-30E
Description
Heating Incubator is a requisite device for strain storage, biological culture and scientific research in colleges and universities, biological, agricultural or scientific research sectors and other departments.
Features
Energy-saving
The sealing ring of incubator adopts a new type of synthetic silicone sealing strip, which effectively prevents heat loss.
Automatically adjust the control parameters according to the ambient temperature and load to achieve the optimal heating method and reduce energy consumption.
Intelligent LCD control
Large-screen LCD display, real-time parameter display, simple and convenient operation.
Menu-type operation interface, simple and convenient operation, can quickly set temperature and time parameters.
Running function: fixed value running, timing running, the screen displays “END” when the running time is completed, accompanied by a buzzer reminder.
Internal circulation system
Adopts high-quality fan and large impeller fan, the machine has higher ventilation efficiency and better temperature uniformity.
The circulation system adopts the back suction and the air circulation on both sides mode.
The shelf is laser-hollowed out with round holes for better ventilation and better temperature uniformity.
Dedicated sheet metal processing
The shelf can be disassembled and freely adjusted up and down, with a minimum spacing of 30mm.
The inner tank is made of high-quality brushed stainless steel, with strong corrosion resistance.
Built-in observation window to make the objects in the chamber clear at a glance.
The anti-scalding design of the door handle makes it easy to open and close the door.
Safety
Equipped with leakage protection device to ensure the safety of operators and other equipment in the laboratory.
The insulation material is made of high-quality aluminum silicate silk cotton, and the insulation layer of the box is thickened.
With limited temperature control sound and light alarm system.
Self-diagnosis function: display fault information, which is convenient for judging the fault point.
Specifications
Model | ICB-30E | |
Capacity(L) | 30 | |
Circulation | Forced air convection | |
Dimension(W*D*H) | Internal(mm) | 320*300*315 |
External (mm) | 650*470*510 | |
Temperature | Range (℃) | RT+5-65 |
Fluctuation(℃) | 0.5 | |
Resolution(℃) | 0.1 | |
Uniformity(℃) | ±1 | |
Sensor | PT100 | |
Controller | PID | |
Display | LCD | |
Timer(min) | 1-9999 | |
Material | Internal | Stainless steel |
External | Electro-galvanized steel with antimicrobial powder coating | |
Shelves | 2 | |
Test Hole (mm) | Optional φ25, 50, 80 | |
Safety Device | Leakage protector/Over- temperature alarm | |
Electricity | Voltage/Frequency(V/Hz) | 220/50 |
Consumption(W) | 200 | |
N. W./G.W.(kg) | 35/40 | |
Shipping Dimension (W*D*H) (mm) | 700*540*700 | |
Optional | 1.Independent temperature limiting controller2.Intelligent LCD procedure temperature controller(Optional USB,RS485/232 and printer). |
