- Main function: Heating
- Temp range: RT.+5°C~130°C/160°C
- Optional blocks: 3-96 wells for 0.2-2.0ml/6-40mm tubes
- Automatic fault detection and alarm function.
- Built-in over-temperature protection device.
- Temperature deviation calibration function

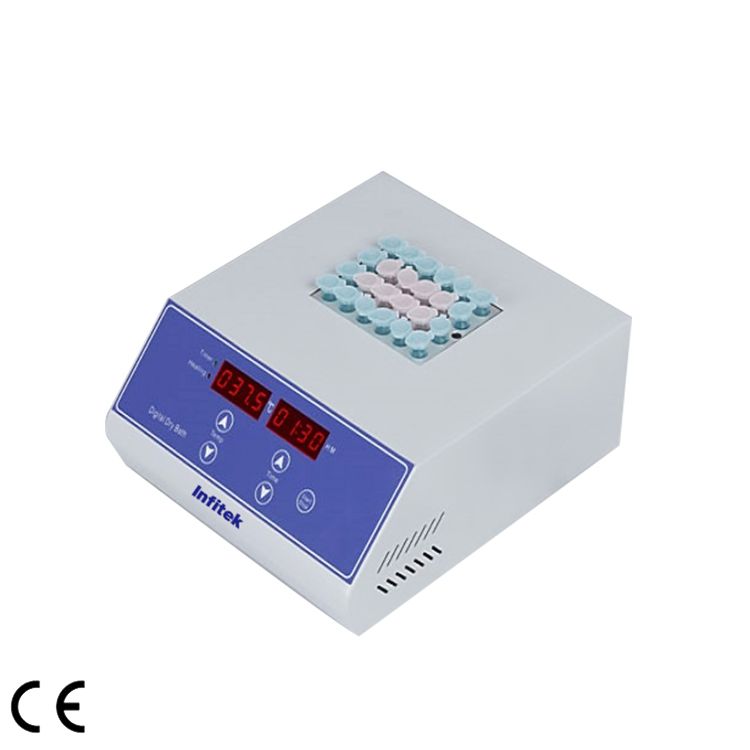

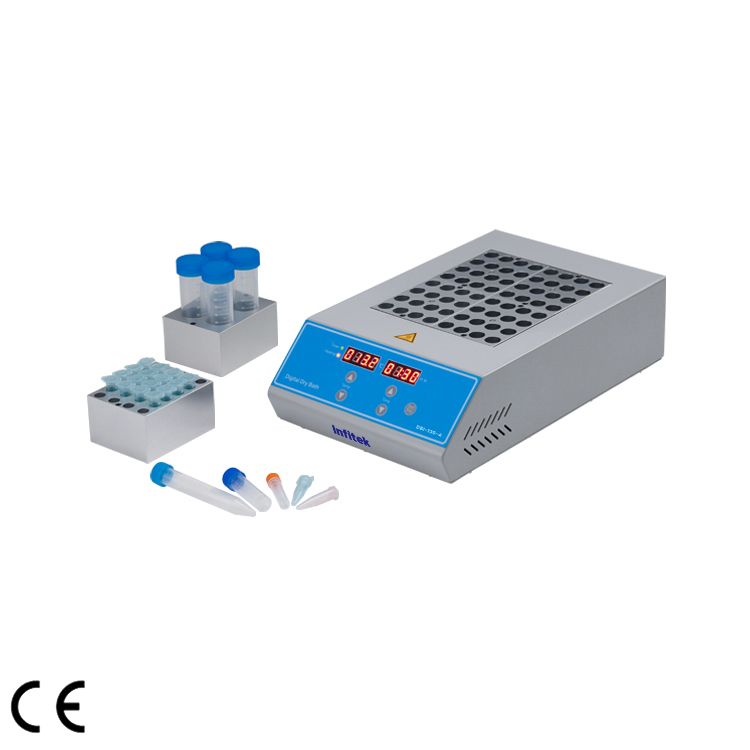

Dry Bath / Block Heater, DBI-160/130 Series
Description
The high temperature Dry Bath Incubator controlled by microcomputer, use high purity aluminum material as a heat conduction medium instead of the traditional water bath device.It can be widely used in the sample preservation, reaction of DNA amplification, electrophoresis, degeneration, solidification and other kinds of serum biochemical sample thermostatic incubation process.
1.Real-time temperature display, the countdown display.
2.Convenient block replacement, easy to clean and disinfect.
3.Automatic fault detection and alarm function.
4.Built-in over-temperature protection device.
5.Temperature deviation calibration function.
Specifications
| Product model | Parameters | ||
| Product model | DBI-160-1 | DBI-160-2 | DBI-130-4 |
| Temperature range | RT.+5°C~160°C | RT.+5°C~160°C | RT.+5°C~130°C |
| Temp accuracy | ±0.5℃(@40℃) | ||
| Temp accuracy | ±1℃(@120℃) | ||
| Temp uniformity | ±0.5℃ | ||
| Display accuracy | 0.1℃ | ||
| Time range | 1-99h59min/∞ | ||
| Heating time | ≤15min(from 25℃ to 160℃) | ≤15min(from 25℃ to 160℃) | ≤20min(from25℃ to 130℃) |
| Block quantity | 1 | 2 | 4 |
| Max power | 300W | 500W | 600W |
| Voltage | AC220V or AC110V, 50/60Hz | ||
| Size | 260 x 220 x 100mm | 260 x 220 x 100mm | 360 x 220 x 100mm |
| Weight | 5.0kg | 5.5Kg | 8.0kg/9.2kg |
| Package Dimension (W*D*H)(mm) | 370*370*260 | / | 430*330*220 |

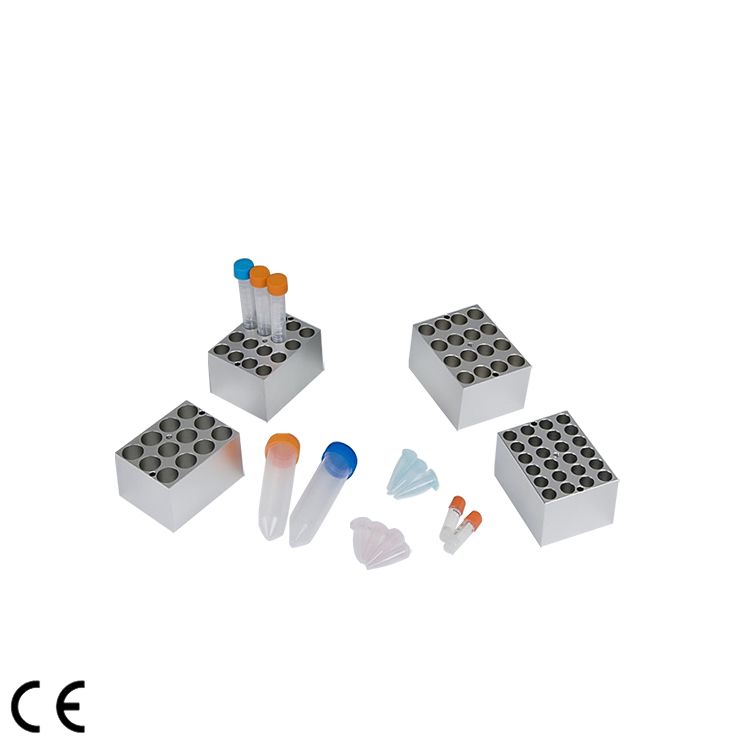

Optional Blocks:
| Type | Diameter of test tube | Number of test tube | |
| MD01 | 6mm | 48 | Hole depth 47mm |
| MD02 | 7mm | 48 | Hole depth 47mm |
| MD03 | 10mm | 24 | Hole depth 47mm |
| MD04 | 12mm | 24 | Hole depth 47mm |
| MD05 | 13mm | 24 | Hole depth 47mm |
| MD06 | 15mm | 16 | Hole depth 47mm |
| MD07 | 16mm | 16 | Hole depth 47mm |
| MD08 | 19mm | 12 | Hole depth 47mm |
| MD09 | 20mm | 12 | Hole depth 47mm |
| MD10 | 26mm | 8 | Hole depth 47mm |
| MD11 | 28mm | 4 | Hole depth 47mm |
| MD12 | 40mm | 3 | Hole depth 47mm |
| MD13 | 0.2ml centrifuge tube | 48 | Standard centrifuge tube |
| MD14 | 0.5ml centrifuge tube | 48 | Standard centrifuge tube |
| MD15 | 1.5ml centrifuge tube | 24 | Standard centrifuge tube |
| MD16 | 2.0ml centrifuge tube | 24 | Standard centrifuge tube |
| MD17 | 0.2ml PCR plate | 96 | Not applicable to DBI-160-1 |
| MD18 | 0.2ml Elisa plate | 96 | Not applicable to DBI-160-1 |
