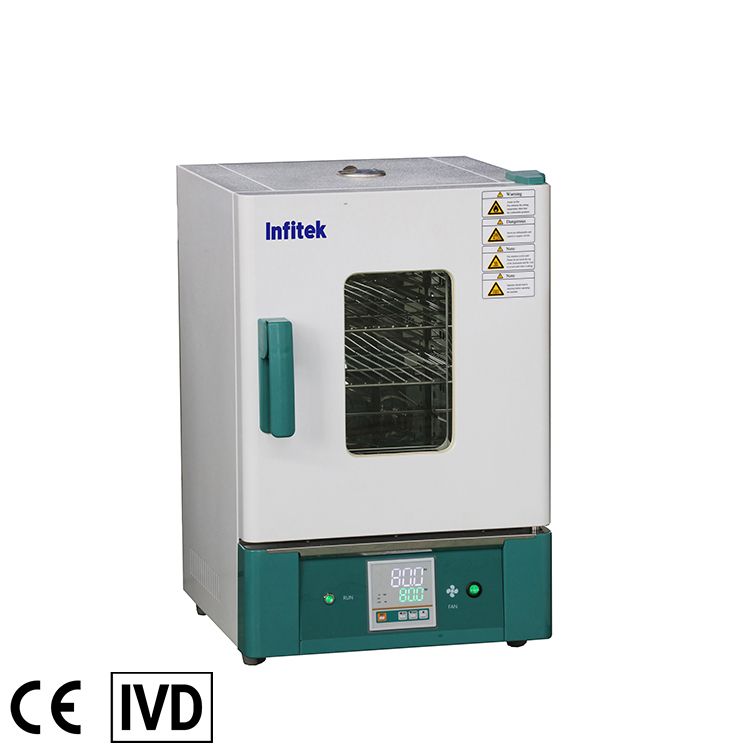

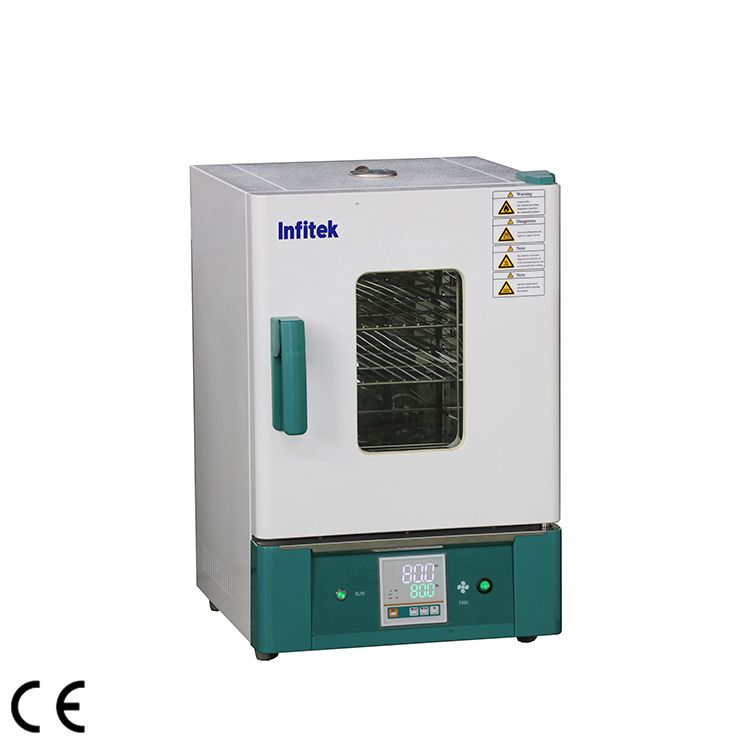

Hot Air Sterilzier, DOF-HAS E Series

  1. Volume:30L,45L,65L,85L,125L,230L
  2. Air Circulation type:Forced-air convection type
  3. Control Accuracy:±1℃
  4. Sensor: PT100
  5. Exhaust hole:Φ35mm top(with function of test hole)

Share the product

Description

Product Characteristics:
1. horizontal air circularly by double air ducts, high efficiency and high uniformity.
2. PID controller, with over-temperature protection function.
3. With fan switch, LED digital display, high temperature blast motor.
4. New anti-hot handle.

DOF-HAS series have the following characteristics other than the above functions.
1. LCD temperature controller. SSR to make sure the safety.
2. 4 gears speed fan, adjustable for different requirements.
3. Over-temperature protection system.
4. Independent temperature limiter.
5. 304: SUS304 Stainless Steel Body.

Specifications

Model DOF-HAS30E DOF-HAS45E DOF-HAS65E DOF-HAS85E DOF-HAS125E DOF-HAS230E
Cycle Mode Forced convection
Function Temp. Range RT+10-300℃
Temp. Resolution Ratio 0.1℃
Temp. Fluctuation ±1℃
Temp. Uniformity ±2.5%
Structure Inner Chamber Mirror Stainless Steel
Outside Material Cold rolling steel electrostatic spraying exterior
Insulation Layer High quality rock wool board (with CE)
Heater 304 stainless steel heater
Power Rating 0.8kW 1.2kW 1.6kW 2.0kW 2.3kW 3.0kW
Exhaust Hole φ35mm top(with function of test hole)
Controller Temp. Control Mode Two temperature section PID intelligent
Temp. Setting Mode Touch button setting
Temp. Display Mode Measure the temperature and display on the upper row of four digit nixie tube; Set temperature: four digit nixie tube lower display
Timer 0-9999min(with timing wait function)
Operation Function Fixed temperature operation, timing function, auto stop.
Additional Function Mechanical independent temperature limiter,3grade adjustable speed fan(230E without fan speed adjustor),sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
 Sensor Pt100
Specification Inner Chamber Dimension Size(W×L×H)(mm) 310×310×310 350×350×350 400×360×450 450×420×450 500×450×550 600×500×750
Exterior  Dimension Size (W×L×H)(mm) 460×510×695 500×550×735 550×550×840 590×610×830 636×680×915 730×835×1250
Packing Dimension (W×L×H)(mm) 550×585×845 590×625×885 640×635×985 690×695×985 740×725×1085 890×870×1290
Volume 30L 45L 65L 85L 125L 230L
Shelf Number(Max.) 5 6 8 8 11 17
Load Per Rack 15kg
Shelf Space 35mm
Current Rating (50/60Hz) AC220V/3.6A AC220V/5.5A AC220V/7.2A AC220V/9.0A AC220V/10.5A AC220V/13.6A
NW/GW (kg) 33/37 37/43 44/49 50/56 60/66 94/120
Standard Accessories Shelf 2
Shelf Frame 4
Optional Accessory Shelf
