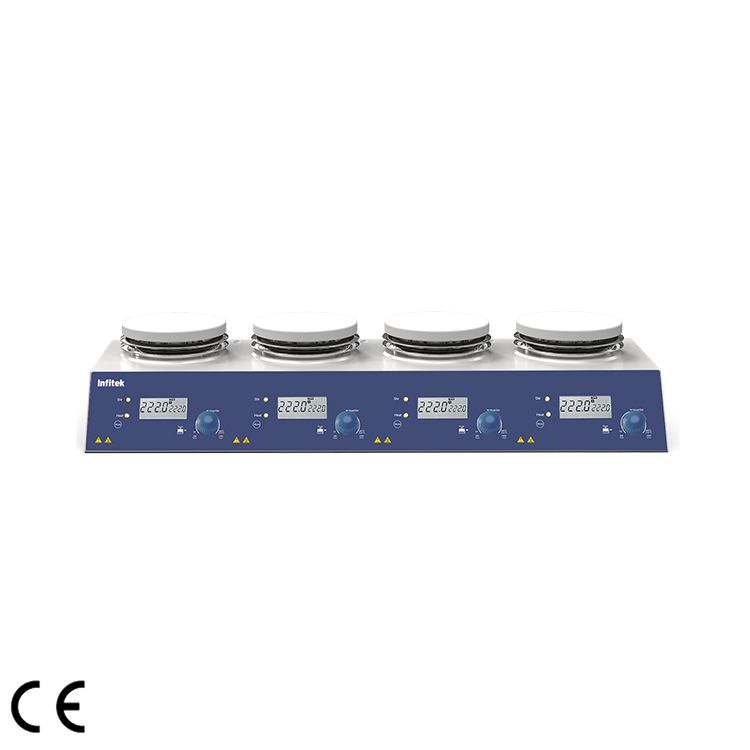

Hotplate Magnetic Stirrer, 4-Channel Type, HPS-M340-S4

  1. Control accuracy of sensor: ±20rpm
  2. Temperature range: 25-340℃
  3. Over temperature protection: 420℃
  4. Temperature display accuracy: ±0.1℃
  5. External temp. sensor: PT1000(Accuracy±0.2℃)

Share the product


  • Independent heating and stirring
  • LCD display shows actual temperaturesand speed.
  • PID controller ensures a preciseand steady heating process,  temperature up to 340℃.
  • Brushless DC motor enables morepowerful speed control.
  • External temperature sensor(PT1000)with accuracy at 0.2℃.
  • Overheating protection temperature at 420℃.
  • Stainless steel work plate with ceramiccoating provides good chemical resistant performance.
  • A wide variety of accessories are


Specifications HPS-M340-S4
Work plate dimension Φ135mm(5 inch)
Plate material Stainless steel with ceramic coating
Motor type Brushless DC motor
Stirring positions 4
Max. stirring quantity of single position (H2O) 10L
Max. magnetic bar 40mm
Speed range 200-1500rpm
Speed display LCD
Temperature display LCD
Control accuracy of sensor ±20rpm
Temperature range 25-340℃
Over temperature protection 420℃
Temperature display accuracy ±0.1℃
External temp. sensor PT1000(Accuracy±0.2℃)
IP Protection class IP21
Motor rating input 1.8W×4
Power 515W×4
Heating Power 500W×4
Voltage 100-120V,60Hz; 200-240V,50 Hz
Dimensions [WxDxH] 698*270*128mm
Packing Dimensions [WxDxH] 800*390*250mm
Net Weight 10kg
Gross Weight 12kg
Permissible ambient temperature 5~40℃
Permissible relative humidity 80%RH
