- Max. stirring quantity, [H2O]: 20L; 10L
- Max. magnetic bar[length]: 80mm
- Speed range: 100-1500rpm
- Heating temperature range: Room Temp.-550°C, increment 1°C; Room temp.-550°C, increment 5°C

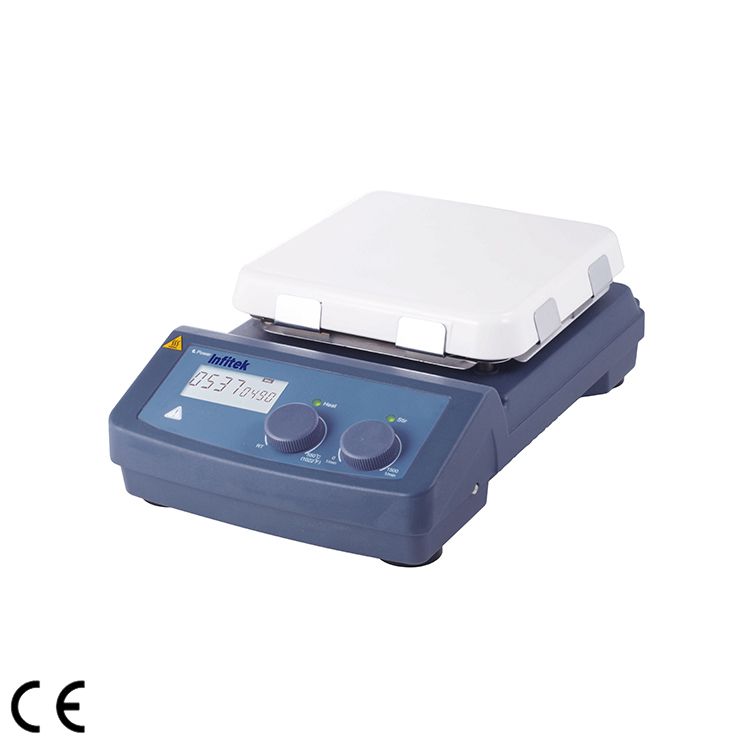

Hotplate Magnetic Stirrer, 500 Degree, HPS-550 Series
Description
DESCRIPTION
DESCRIPTION
HPS-550P LCD Digital HPS-550 LED Digital
- LCD display for precise monitoring of speed and temperature.
- Digital speed controlling, speed at 1500rpm.
- heating plate temperature 550°C.
- External temperature control is possible by connecting thetemperature sensor (PT1000) with an accuracy at ±0.2°C.
- The “HOT” warning will flash when the work plate temperature isabove 50°C even when the hotplate is turned off.
- Built-in PID controller ensures safe heating of the medium withoverheating protection.
- Glass ceramic work plate provides excellent chemical resistantperformance and most efficient heat transfer.
- Outstanding brushless DC motorenables more stirring power.
- Two rotating knobs enable easy adjustment of speed and
- Remote function provides PC control and data transmission.
SPECIFICATIONS
SPECIFICATIONS
| Specifications | HPS-550P | HPS-550 |
| Work plate Dimension [W x D] | 184x184mm (7 inch) | 184x184mm (7 inch) |
| Work plate material | Glass ceramic | Glass ceramic |
| Motor type | Brushless DC motor | Shaded pole motor |
| Stirring positions | 1 | 1 |
| Max. stirring quantity, [H2O] | 20L | 10L |
| Max. magnetic bar[length] | 80mm | 80mm |
| Speed range | 100-1500rpm resolution ±1rpm | 0-1500rpm |
| Speed display | LCD | Scale |
| Temperature display | LCD | LED |
| Heating temperature range | Room Temp.-550°C, increment 1°C | Room temp.-550°C, increment 5°C |
| Temperature control accuracy | ±1°C(<100°C) ±1%(>100°C) | ±10°C |
| Overheating protection | 580°C | 580°C |
| Temperature display accuracy | ±0.1°C | ±1°C |
| External temperature sensor | PT1000 (accuracy ±0.2) | PT1000 (accuracy ±0.2) |
| “Hot” warning | 50°C | 50°C |
| Data connector | RS232 | – |
| Protection class | IP21 | IP21 |
| Motor rating input | 18W | 15W |
| Motor rating output | 10W | 1.5W |
| Power | 1050W | 1030W |
| Heating output | 1000W | 1000W |
| Voltage | 100-120/200-240V 50/60Hz | 100-120/200-240V 50/60Hz |
| Dimension [WxDxH] | 215x360x112mm | 215x360x112mm |
| Package Dimension [WxDxH] | 500x370x280mm | 500x360x270mm |
| N.W. | 5.3kg | 4.5kg |
| G.W. | 7.5kg | 7kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH | 5-40°C, 80%RH |
Accessories & Package
Accessories & Package
| Category | Title | File type/size | Download |
| Brochure | Brochure-Hotplates & Stirrers | PDF(2 MB) | download |
