Overhead Stirrer, OHS Series, LED Digital

  1. Max. stirring quantity [H2O]: 20L; 40L
  2. Speed range: 50~2200rpm; 50~2200rpm
  3. Max. torque: 40N·cm; 60N·cm
  4. Viscosity max.: 10000mPa·s; 50000mPa·s

Share the product

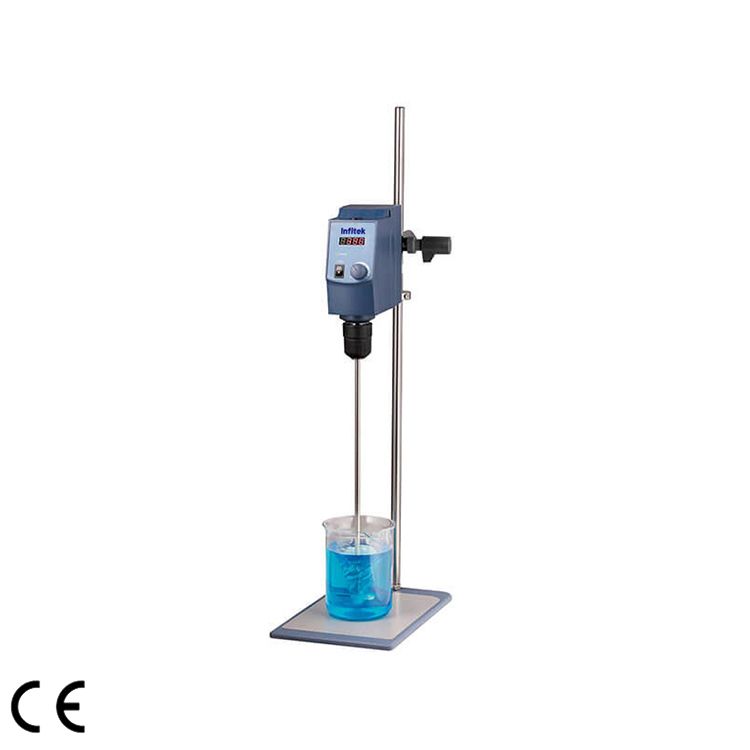

Overhead Stirrer


1. High reliability and outstanding performance

2. A wide range of speed from 50 to 2200rpm

3. Brushless DC motor for long life, maintenance free and explosion proof

4. LED screen for monitoring actual speed

5. Safety circuits allow for safe stop function in anti-stall or overload conditions


Specifications OHS-20 OHS-40
Max. stirring quantity [H2O] 20L 40L
Speed range 50~2200rpm 50~2200rpm
Max. torque 40N·cm 60N·cm
Viscosity max. 10000mPa·s 50000mPa·s
Weight 2.8kg 2.8kg
Motor type Brushless DC motor
Speed display LED
Overload protection display LED
Chuck range diameter 0.5~10mm
Motor input power 60W 120W
Motor output power 50W 100W
Power 70W 130W
Voltage 100~240V, 50/60 Hz
Dimension [WxHxD] 83 x 220 x 186mm
Protection class IP21
Permissible ambient temperature and humidity 5~40°C, 80%RH
