- Volume:150L, 268L, 310L, 400L, 500L, 1000L
- Temperature range&fluctuation&uniformity:0-50°C; ±0.5℃; ±0.1°C
- Can increase the illuminance according to customer requirements
- Compressor delay protection time: About 3 min

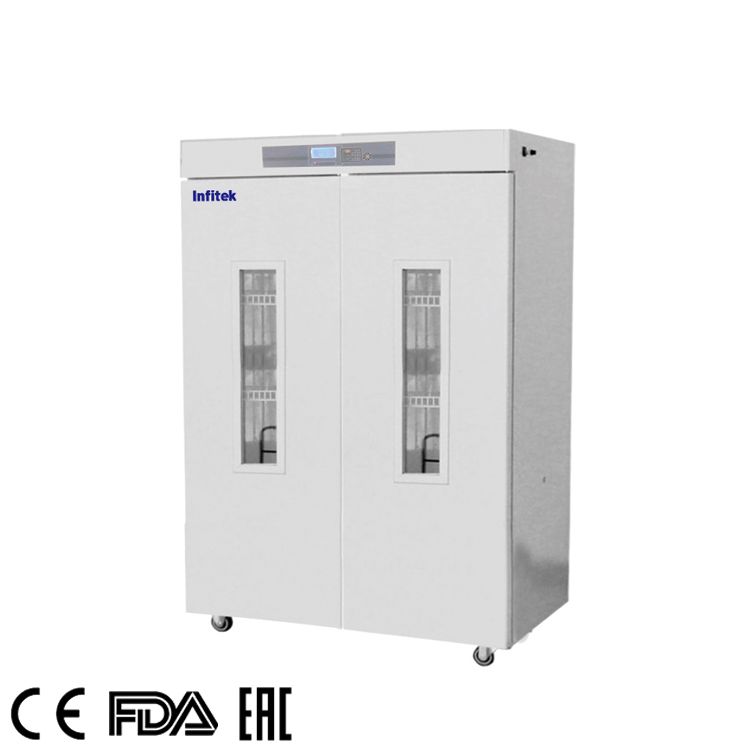

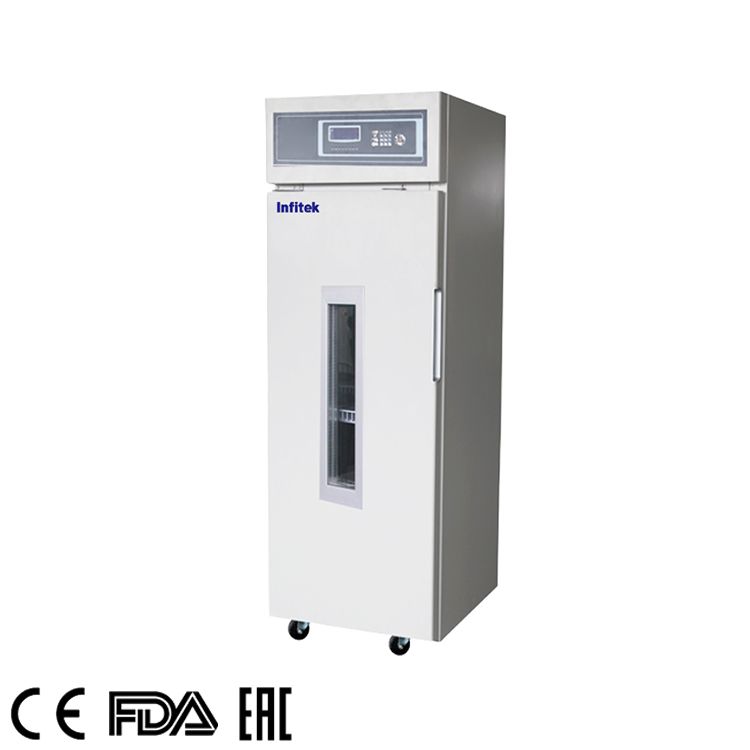

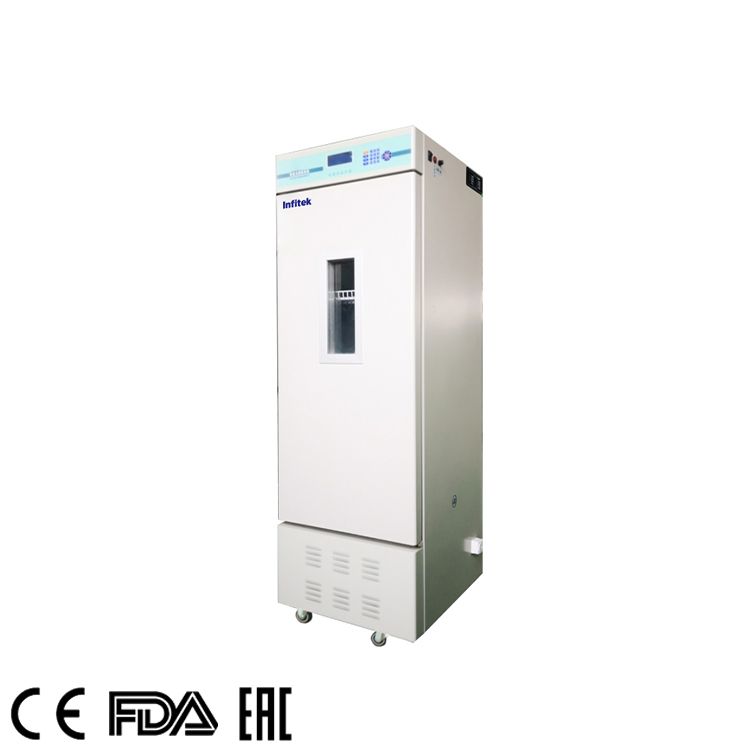

Illumination Chamber, ICB-L-E Series
Description
Illumination Chamber is a biological incubation experiment instrument, which adopts a microcomputer automatic control system with programmable control mode and intermittent cooling.
- Micro-computer control, integrated control panel. The parameters can be set are: time, temperature, light, humidity, period etc.
- Over-temperature and sensor abnormality protection to ensure the equipment and sample safety.
- Adopt LED light( ICB-L150E adopts Fluorescent lamp), beneficial to plant growth, disease resistance.
- It has the functions of power-down memory and automatic compensation for power-down time.
- Aluminum alloy frame, silver color and be able to the aging and deformation. With lock-door to protect the sample from falling out.
- The device has wheels, which is easy to move.
- Inside the incubator is grid structure,which can be adjusted according to the length of the sample.
- Duct-ventilated type with soft wind and uniformity temperature.
- The material of tank: stainless steel.
- Anti-irradiation tempered-glass with coating to ensure a good insulation performance.
- Light can be customized by users required. Our standard light is 8000lux. The max. light we can provide is 12000lux.
Specifications
| Model | ICB-L150E | ICB-L260E | ICB-L300E | ICB-L500E | ICB-L1000E | |
| Capacity(L) | 150L | 268L | 310L | 500 | 1000 | |
| Circulation Mode | Forced convection | |||||
| Dimension(W*D*H) | Internal (mm) | 424*430*962 | 480*480*1040 | 480*480*1290 | 690*533*1375 | 1110*600*1370 |
| External (mm) | 525*540*1580 | 580*630*1755 | 580*630*1895 | 810*703*1864 | 1230*708*1865 | |
| Temperature | Range (℃) | 0~50 | ||||
| Fluctuation (℃) | ±0.5 | |||||
| Resolution (℃) | ±0.1 | |||||
| Uniformity (℃) | ±0.1 | |||||
| Sensor | PT100 | |||||
| Illumination(Lx) | 0~8000 (can be customized) | 0~12000 (can be customized) | ||||
| Illumination Control | 10-level relative illuminance control | |||||
| Controller | PID | |||||
| Display | Large high efinition LCD | |||||
| Timer | 0~24h * 99 segments | |||||
| Material | Internal | Mirror 304 stainless steel | ||||
| External | Cold rolled steel electrostatic spraying exterior | |||||
| Shelves | 3 | 4 | 4 | 4 | 3 | |
| Refrigerant | R134a (CFC free) | |||||
| Defrosting Mode | Automatic | |||||
| Safety Device | Visible& Audible over temperaure alarm | |||||
| Electricity | Voltage/Frequency | AC 220V, 50/60Hz | ||||
| Consumption (W) | 400 | 400 | 600 | 600 | 700 | |
| N.W./G.W. (kg) | 90/104 | 105/120 | 135/150 | 180/210 | 290/310 | |
| Package Dimension(W*D*H) (mm) | 660*650*1930 | 710*670*1930 | 670*705*2060 | 950*780*2020 | 1340*780*2020 | |
| Optional | Spare shelf | |||||
