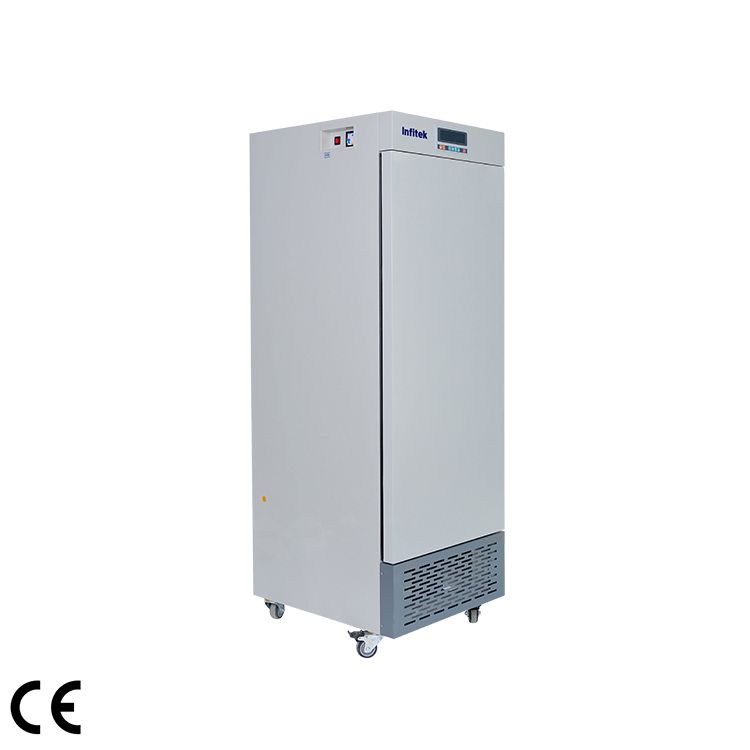

Illumination Chamber, ICB-L-B Series

  1. Capacity: 250L, 350L, 450L
  2. Illumination & Temp control
  3. Temperature range: With lighting: 10-60℃; Without lighting: 4-60℃
  4. Test hole: Optional φ25, 50, 80mm

Share the product

Description

The Plant Growth Chamber ICB-L-B Series is widely applied to microbial tissue and cell culture, seed germination, seedling culture test, plant cultivation, raising of insects and small animals, etc.. Different environmental and climatic conditions can be accurately simulated.

Energy saving

  • Imported compressor, safe and reliable.
  • Defrosting function: three-stage electric heating defrosting program control to ensure that frost will affect the temperature in the box during the low temperature operation of the equipment.
  • Adopts energy-saving LED cold light source;The light intensity is adjustable in six levels to meet plants with different light needs.

Intelligent LCD control

  • Large-screen LCD display: real-time display of parameters, self-locking function of screen, simple and convenient operation.
  • Intelligent control: The intelligent temperature control system can set up to 100 cycles, and 30 wave bands can continuously control temperature, light level and running time.
  • Running function: fixed value running, timing running; The screen will display “END” with a beeping reminder after the running time is completed.

Internal circulation system

  • Adopts high-quality fan and large impeller fan, the machine has higher ventilation efficiency and better temperature uniformity.
  • The circulation system adopts the back suction and the bottom vertical air supply mode.
  • The shelf is laser hollowed out with round holes for better ventilation and better temperature uniformity.Dedicated sheet metal processingThe shelf can be disassembled and can be freely adjusted up and down, with a minimum spacing of 30mm.
    The inner chamber is made of high-quality brushed stainless steel, with strong corrosion resistance.

    Humanized design

    Optional observation window to make the objects in the chamber clear at a glance.

Safety

  • Equipped with leakage protection device to ensure the safety of operators and other equipment in the laboratory.
  • With limited temperature control sound and light alarm system.
  • Self-diagnosis function: display fault information, which is convenient for judging the fault point..
  • Waterproof stainless steel heating tube, corrosion resistance, long service life.

Specifications

Model ICB-L250B ICB-L350B ICB-L450B
Capacity(L) 250 350 450
Circulation Mode Forced  convection
Dimension(W*D*H) Internal (mm) 560*420*1050 560*530*1200 700*520*1210
External (mm) 660*660*1700 670*730*1880 810*790*1890
Temperature Range (℃)  With lighting: 10~50
Without lighting: 4~50
Fluctuation (℃) ±1
Resolution (℃) 0.1
Uniformity (℃) ±1 ±2 ±2
Sensor PT100
Illumination(Lx) 0~12000 0~15000 0~20000
Illumination Control 6-level relative illuminance control
Controller PID
Display Large high efinition LCD
Timer 1~9999min (Optional 30*segments*100cycles)
Material Internal Stainless steel
External Cold rolled steel electrostatic spraying exterior
Shelves 3 3 3
Test Hole (Optional) Φ 25,50,80 mm
Internal Socket Optional
Refrigerant R134a (CFC free)
Defrosting Mode Automatic
Safety Device Visible& Audible over temperaure;leakage protector
Electricity Voltage/Frequency AC 220/110V, 50/60Hz
Consumption (W) 1500 2150 2250
N.W./G.W. (kg) 103/ 123 128 / 149 153 / 175
Shipping Dimension (W*D*H) (mm) 800*750*1940 880*750*2060 880*850*2100
Optional Test hole, internal socket, Digital independent temperature limiter
、Programable temperature controller (Optional USB,RS485/232 and  built-in printer)、Spare shelf
