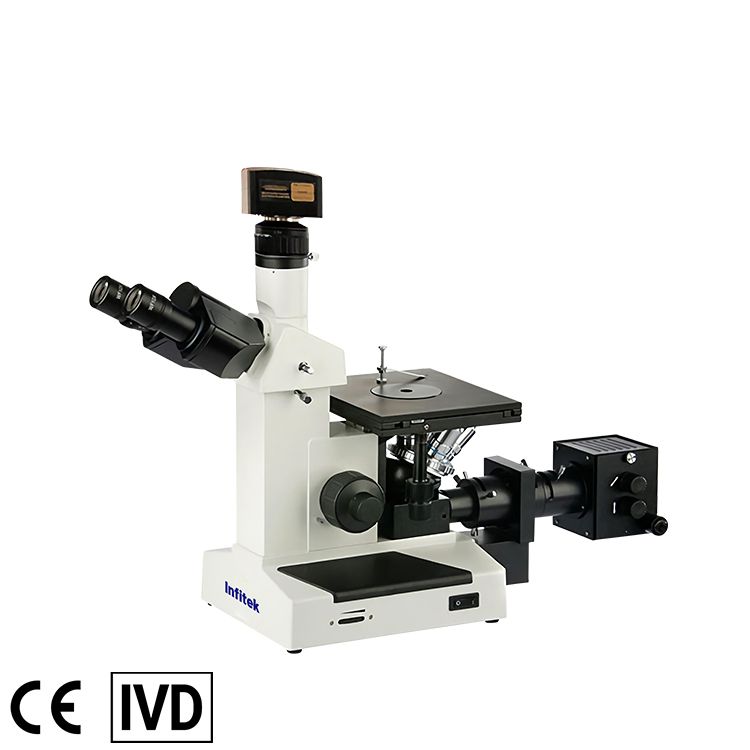

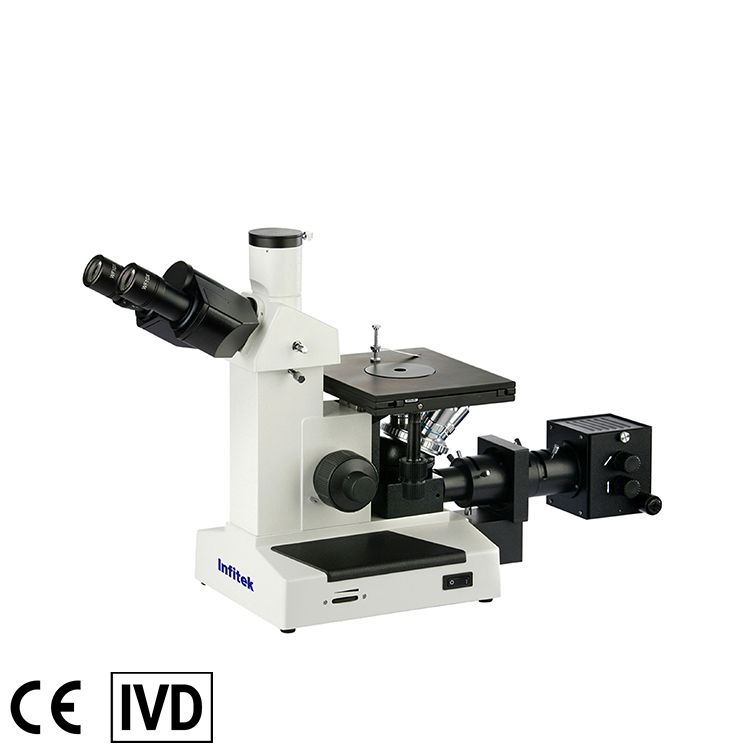

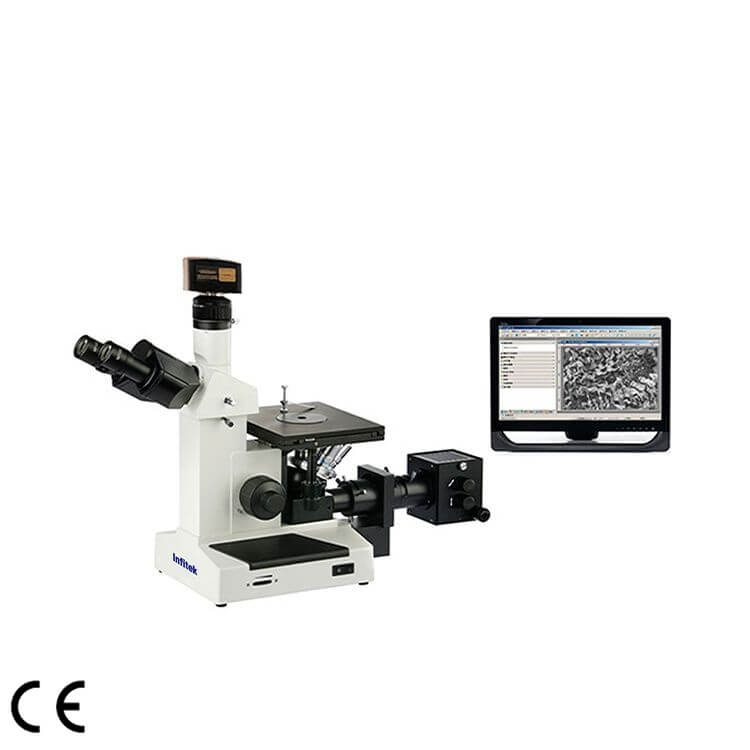

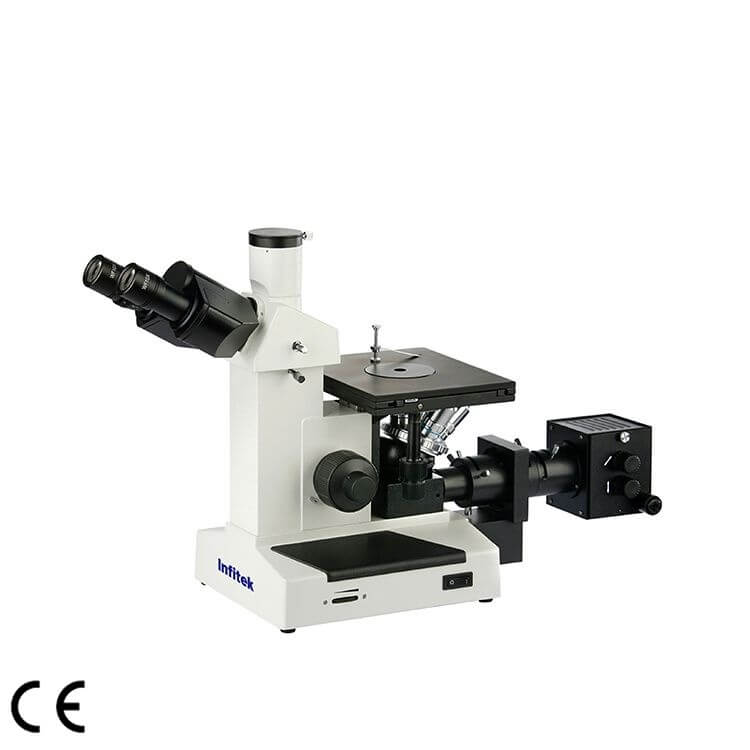

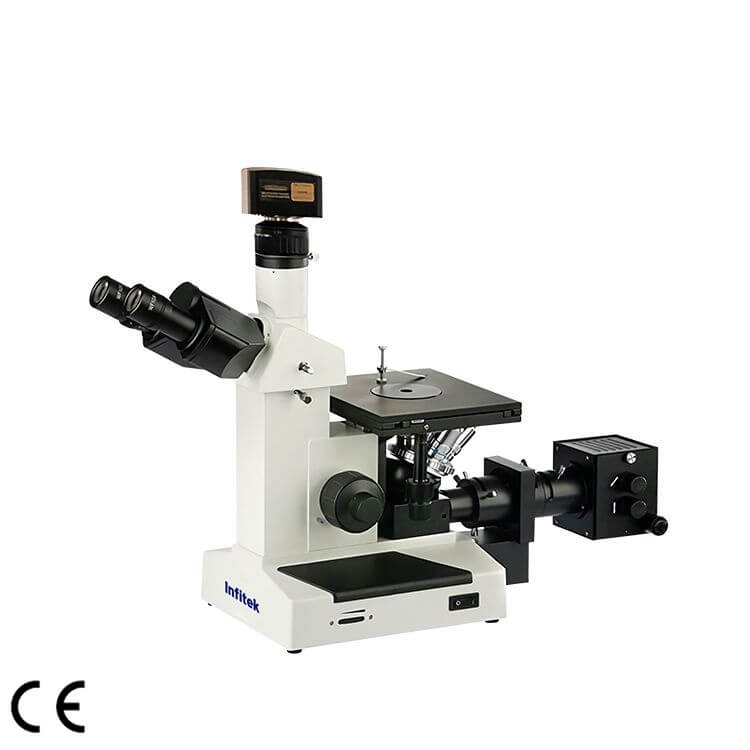

Inverted Metallurgical Microscope, MSC-M4XC

  1. Extra Wide Field Eyepiece: WF10X/18, Eyepiece with Scale of Crosshair
  2. WD Plan Achromatic Objective: PL L20X/0.40    WD 3.75mm/ PL L40X/0.60    WD 2.69mm/ SP L100X/0.90   WD 0.44mm
  3. Illumination system: 6V/20W Halogen light, brightness adjustable, Polarizer and analyzer, Green, Blue, Yellow Filter

Share the product


Infitek has newly developed and manufactured a new generation of advanced binocular inverted metallurgical microscope with integrated bright field, dark field, polarized light and other observation methods.

Suitable for microscopic observation of opaque objects or transparent objects. It is suitable for identifying and analyzing the internal structure of materials such as metals, minerals, precision engineering, electronics, etc. It is an ideal industrial optical microscope for metallographic research in metal physics.


Model MSC-M4XC
Extra Wide Field Eyepiece WF10X/18, Eyepiece with Scale of Crosshair
WD Plan Achromatic Objective PL L10X/0.25    WD 8.9mm
PL L20X/0.40    WD 3.75mm
PL L40X/0.60    WD 2.69mm
SP L100X/0.90   WD 0.44mm
Optional Objective PL L50X/0.70    WD 2.02mm
PL L60X/0.75    WD 1.34mm
PL L80X/0.80    WD 0.96mm
PL L100X/0.85   WD 0.4mm
Viewing Head Siedentopf trinocular viewing head, Inclined at 30″, Interpupillary 55mm-75mm
illumination system 6V/20W Halogen light, brightness adjustable
Polarizer and analyzer
Green, Blue, Yellow Filter
Focusing Coaxial coarse and fine adjustment, fine division 2um
Nosepiece Backward quadruple nosepiece
Optional: Backward quintuple nosepiece
Stage Double layer mechanical stage 180X150mm, Moving range 15mmX15mm
Accessories Photo/Nideo attachment; Micrometer scale 0.01mm
