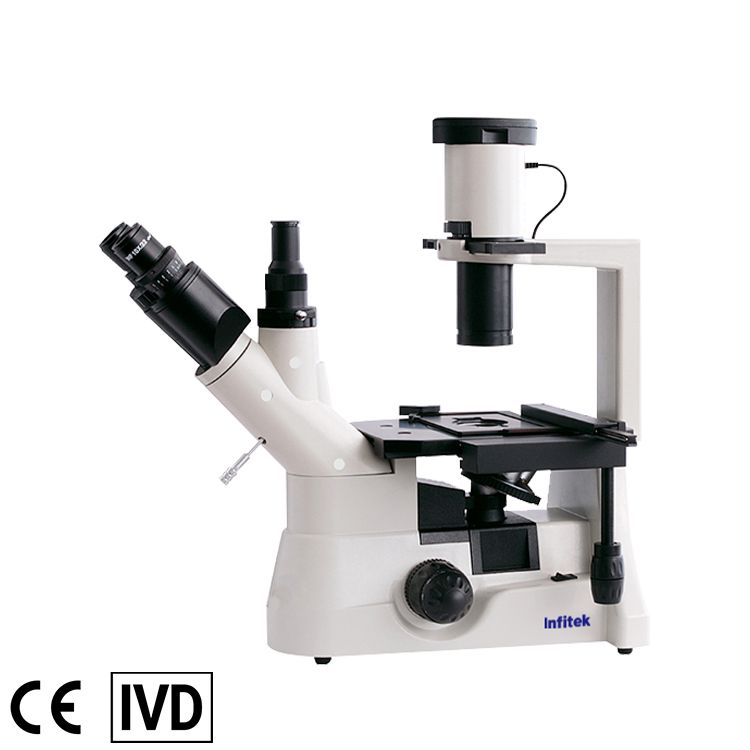

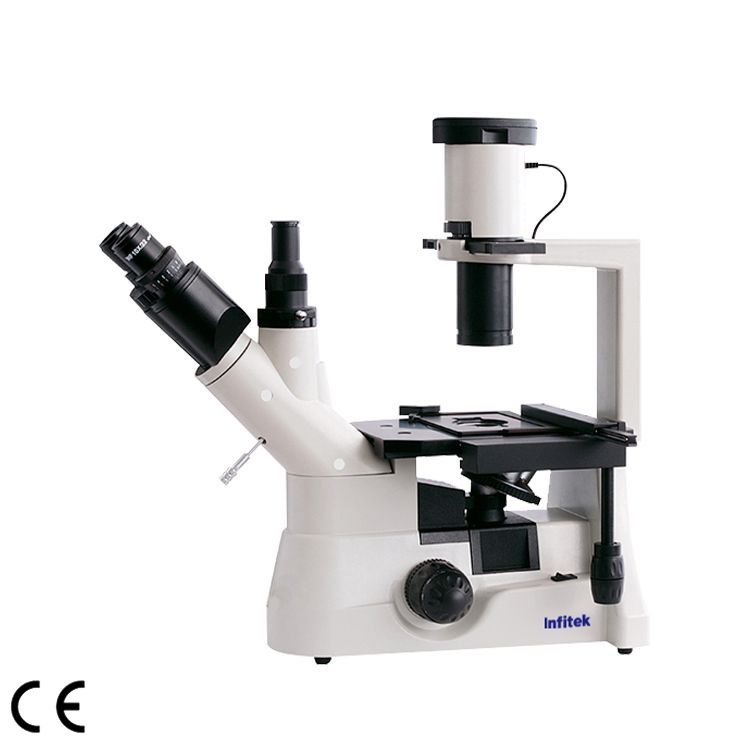

Inverted Microscope, MSC-IV403

  1. Trinocular Head Inclined at 45°
  2. Interpupillary Distance 50-75mm
  3. Eyepiece: WF10X/ 20mm
  4. Objective: LWD Plan ObjectiveLWDPL4X\10X\20X\40X
  5. Camera and display screen can be configured

Share the product


Inverted Microscope


Model MSC-IV403
Viewing head Trinocular Head Inclined at 45°, Interpupillary Distance 50-75mm
Eyepiece WF10X/ 20mm
Objective LWD Plan ObjectiveLWDPL4X\10X\20X\40X
Stage Double layers mechanical stage,Stage size: 242mmx 172mm,Central stage: Φ110mm,Moving range: 75mm × 50mm
Condenser N.A.0.3Abbe condenser W.D .75mm
Focusing Coaxial coarse&fine focusing adjustment with rack and pinion  mechanism Fine focusing scale Value 0.002mm
Phase contrast sliding plate Center of phase contrast ring plate adjustable
Centering telescope Centering telescope
Filter Blue,green, yellow and froster glass
Light source Halogen bulb12V/30W,Adjustable brightness
*Fluorescence attachment B.GWave band ,220V(110V)/100W Mercury lamp
*Optional Photograph connecting tube,adapter with MD or PK mount ,4X photograph eyepiece
Packaging Size(mm) 760*310*170
Net/ Gross Weight(kg) 12/ 13

*Optional configuration
