- Cleanliness level : ISO Class 5 (Class 100)
- Downflow velocity: 0.25-0.6 m/s（adjustable）
- Double-person and single surface
- Intelligent LCD displays system parameters
- With reasonable and safe structure design

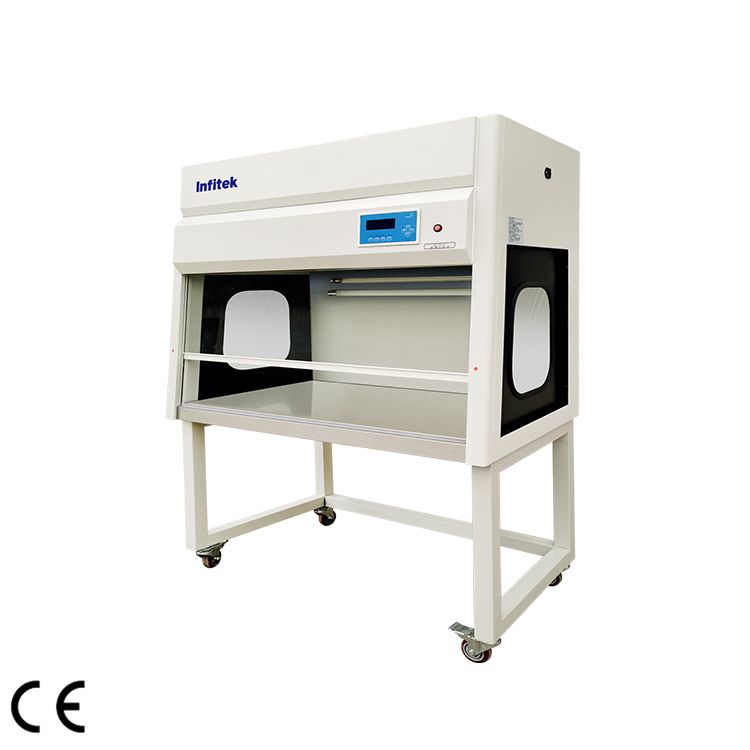

Laminar Flow Cabinet, Vertical type, Medical type, LCB-V1400J
Description
High-Quality&Ergonomic Construction
- 10°inclined operation surface, quasi-closed countertop with stepped design on the front
- The outer box adopts the cold-rolled steel plate spraying process.
- Adopt high-quality centrifugal fan, effectively prolong the service life of filter
Energy-efficient
- Adopt high-efficiency filter, energy saving and environmental protection
- Intelligent LCD displays system parameters
- Touch-type buttons to adjust various parameter settings
Quiet Operation
- Comfortable low noised ≤65dBA
- Reduce fatigue and improve work concentration
Safety Protection & Structural Design
- Interlocking protection design, the UV lamp and the lighting lamp are interlocked
- Double side perspective window design with good lighting effect
- Reasonable structural design, which makes maintenance and replacement of high efficiency filters and fans more convenient and fast.
Specifications
| Model | LCB-V1400J |
| Airflow mode | Vertical air supply |
| Cleanliness level | ISO Class 5 (Class 100) |
| Colony amount | ≤0.5 pcs/dish/h (φ90mm culture dish) |
| Downflow velocity | 0.25-0.6m/s（adjustable） |
| Sound emission | ≤65dBA |
| Illuminance | ≥300LX |
| Vibration half-peak value | ≤3μm（X.Y.Z direction） |
| Max. power consumption | 500W |
| Electricity | AC220V±10%,50/60Hz |
| Net weight | 120kg |
| Gross weight | 220kg |
| Work area dimensions (W*D*H) | 1400*580*520mm |
| External dimensions (W*D*H) | 1500*695*1650mm |
| Package dimension (W*D*H) | 1600*790*1800mm |
| Applicable number of people | Double-person and single surface |
