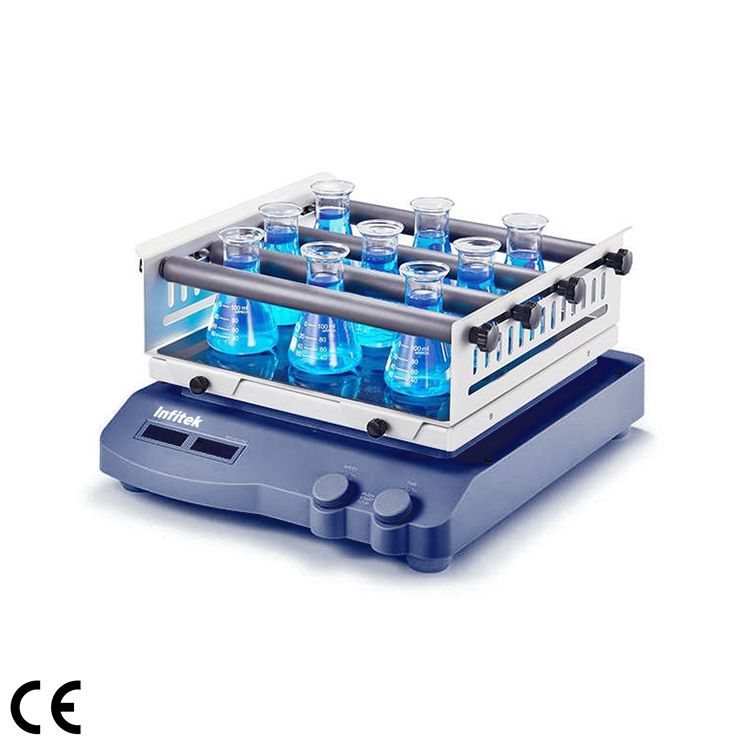

Linear Shaker, SHK-L0710/SHK-L0204

  • Amplitude: 10mm; 4mm
  • Max. load capacity (with platform): 7.5kg; 2.5kg
  • Speed range: 100-350rpm; 100-350rpm
  • Speed display: LCD

Share the product

Category:

Description

SHK-L0710/SHK-L0204 Linear Shaker Features

  • Load capacity is 7.5kg(L0710) and2.5kg(L0204) with platform.
  • Double LCDs for independent display oftime and speed.
  • Wide range of platforms for use with avariety of vessels.
  • Maintenance- free brushless DC motor.
  • Over speed detection and protection.

Specifications

Specifications SHK-L0710 SHK-L0204
Amplitude 10mm 4mm
Max. load capacity (with platform) 7.5kg 2.5kg
Motor type Brushless DC motor Brushless DC motor
Motor input power 28W 28W
Motor output power 15W 15W
Speed range 100-350rpm 100-350rpm
Speed display LCD LCD
Timer display LCD LCD
Time settings range 1min-19h59min 1min-19h59min
Voltage 100-240V, 50/60Hz 100-240V, 50/60Hz
Power 30W 30W
N.W. 13.5kg 8.1kg
G.W. 15kg 10.5kg
Permissible ambient temperature and humidity 5-40℃, 80%RH 5-40℃, 80%RH
Dimension[W×D×H] 370×420×100mm 300×340×100mm
Package Dimension[W×D×H] 600*510*230mm 500×460×330mm
Protection class IP21 IP21
Data connector RS232 RS232
