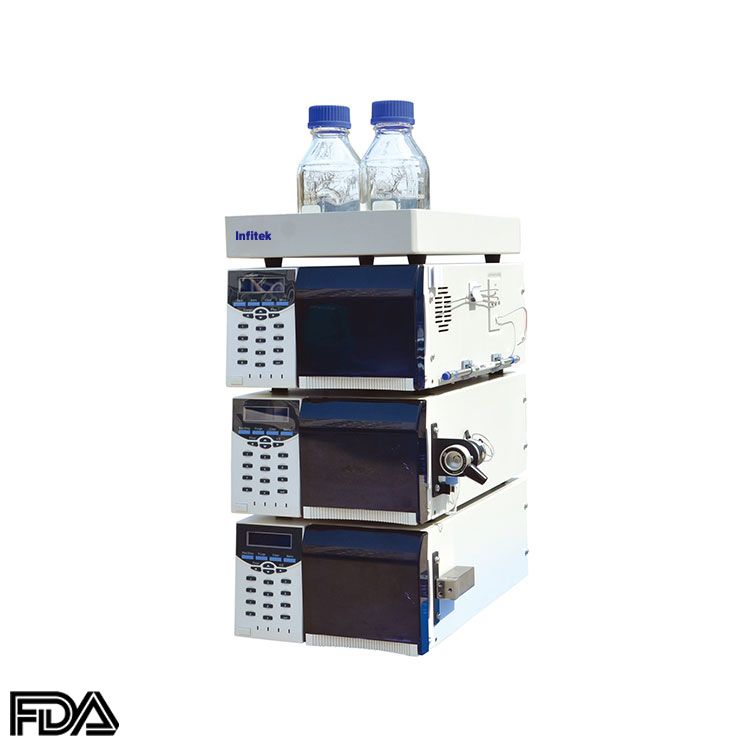

High Performance Liquid Chromatography, HPLC-1100

HPLC System / Liquid Chromatograph, HPLC-1100

High Performance Liquid Chromatography, Pump+Detector+Column+Workstation

Engineered using the core competencies of our experience, 1100 provides superior data quality, excellent robustness and long-term performance.

Characteristics

1.Affordable

2.VFD display screen

3.Control mode: external/internal

4.Easy to use

5.Superior repeat-ability

Key Technologies

1.Connections University

2.Methods Validation Software and System

3.Performance Certified Training and Education

Excellent Performances

1. The LOD as low as 4×10-9g/ml

Mobile phase：Methyl alcohol Flow rate：1mL/min

Detection wavelength ：254nm RT：1.0s

Sample：Naphthalene（1×10-7g/ml）

2. Repeatability

1-uracil，2-acetophneone，3-toluene， 4-ethyl benzene，5-fluorene

Peak area of fluorene: RSD=0.048% Retention time of fluorene: RSD=0.017%

      3.Baseline Noise

     4. Gradient

5. High Resolution

       System Configurations

Description	Isocratic Systems Configurations	Binary High Pressure Gradient Systems Configurations
HPLC-1100FP High Pressure Constant Flow Pump	1 ea	2 ea
HPLC-1100DT  UV/VIS Detector	1 ea	1 ea
Valco Sample Injector	1 ea	1 ea
HPLC-1100 GM Gradient Mixer	/	1 ea
HPLC-1100CO Column Oven (alternative)	1 ea	1 ea
BEH HPLC Column	1 ea	1 ea
HPLC-1100ST Workstation	1 set	1 ea

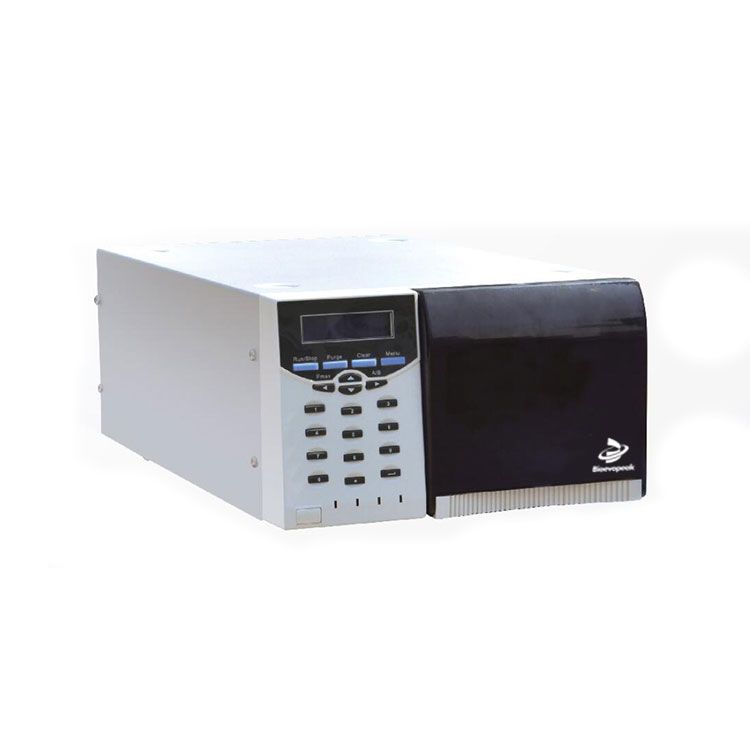

HPLC-1100FP  High Pressure Constant Flow Pump

Specifications

Flow Rate	0.001-10.000 mL/min (Step: 0.001 mL/min)
Accuracy	≤±0.3%
Precision	≤0.1% RSD
Max Pressure	42 MPa (6000 psi)
Dimension/Weight	420 mm×260 mm×160 mm/12 kg
Power	AC 220 V, 50 Hz

 Characteristics

1.Function keys for setting Max. pressure and switching A/B pump

2.Decreased fluid pulsation

3.Improved stepper motor operation stability by radiating way

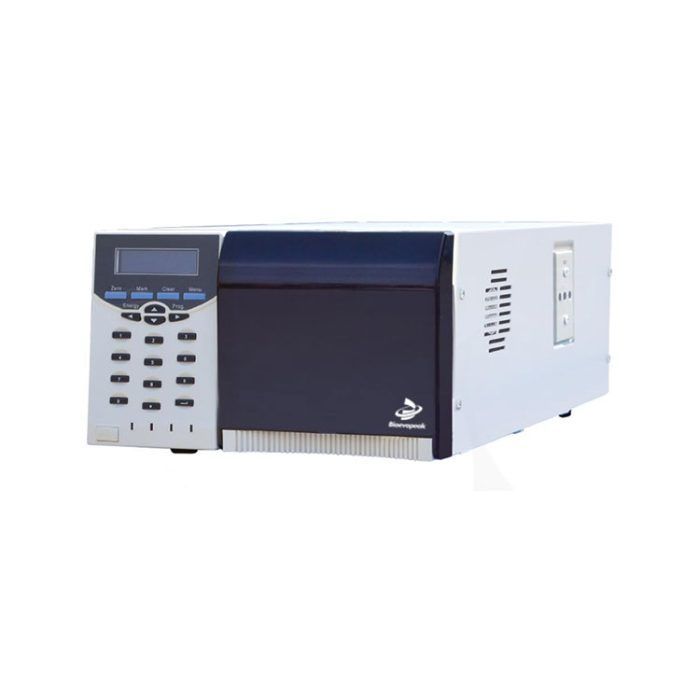

HPLC-1100DT  UV/VIS Detector

 Specifications

Wavelength	190-700 nm
Noise	≤±1.0×10-5 AU
Drift	≤2.0×10-4 AU/h
Dimension/Weight	420 mm×260 mm×160 mm/12 kg
Power	AC 220 V (±10%)，50 Hz/100 W

Characteristics

1.Function keys for wavelength program and D2 Lamp energy

2.D2 lamp alarming function

3.Casting monochromator framework for improved light path accuracy and sealing efficiency

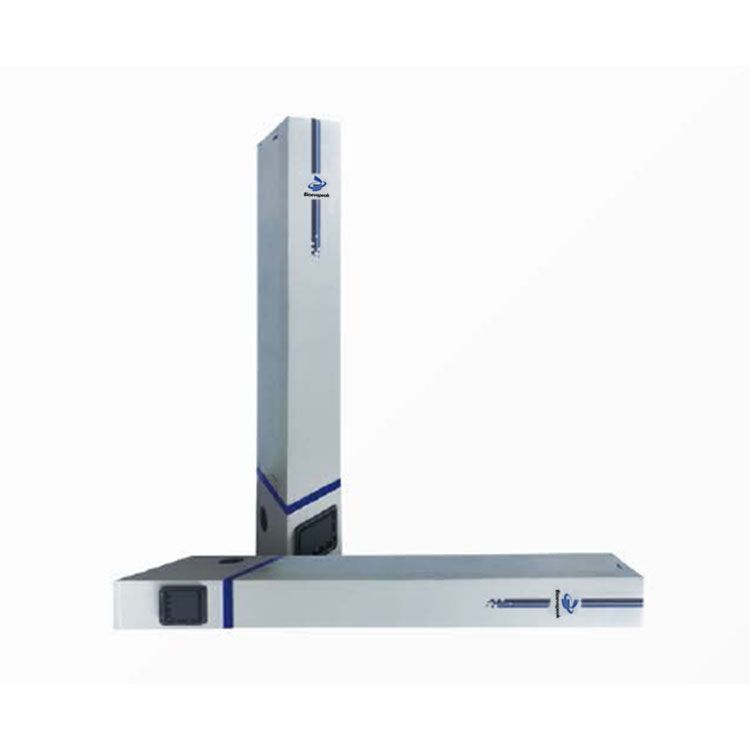

HPLC-1100CO  Columns Oven

Specifications

Temperature	R.T.+5 ℃~99 ℃
Setting Precision	0.1 ℃
Control Accuracy	±0.5 ℃
Dimension/Weight	120 mm×65 mm×500 mm/8.5 kg
Power	AC 220 V (±10%)，50 Hz

HPLC-1100ST  Workstation

HPLC-1100ST  workstation is the classical chromatography data-processing system, with a completely fresh external-connect design hardware (USB port) and software based on Win OS, with up to date software design technology(O-O) and the experiences collection of many experts & clients, all of the above make it to be more functional, and easily-operated workstation.

HPLC-1100ST  is easily operated as MS OFFICE software, such as analysis of complex samples with visual and graphical button line. Call out chromatogram with clipboard under the software of WORD and create a report of pictures & words. HPLC-1100ST  can accommodate the HPLC system, and any types of chromatography instruments. It is the ideal substitute of integrator, data processor and traditional workstation, so it will be your right hand in your laboratory analysis.



Characteristics

Simple for use

Flexibility in data display

Real-time and fast determination of peak area

Easy review of entire system

Real-time operating status and indicator feedback of instrument units

Easy comparison of multiple chromatograms

Customizable reports

Supporting tools for GLP / 21 CFR Part 11——Audit trail of whole system and chromatograms

User accounts-selectable rights, unique user profiles, allow to create a unique password to

protect profiles of each user.
